Freerider FR1 User Manual
Page 11
10
(3).Re-tighten the 10mm fixing screw.
(4).Refit the seat onto your Scooter.

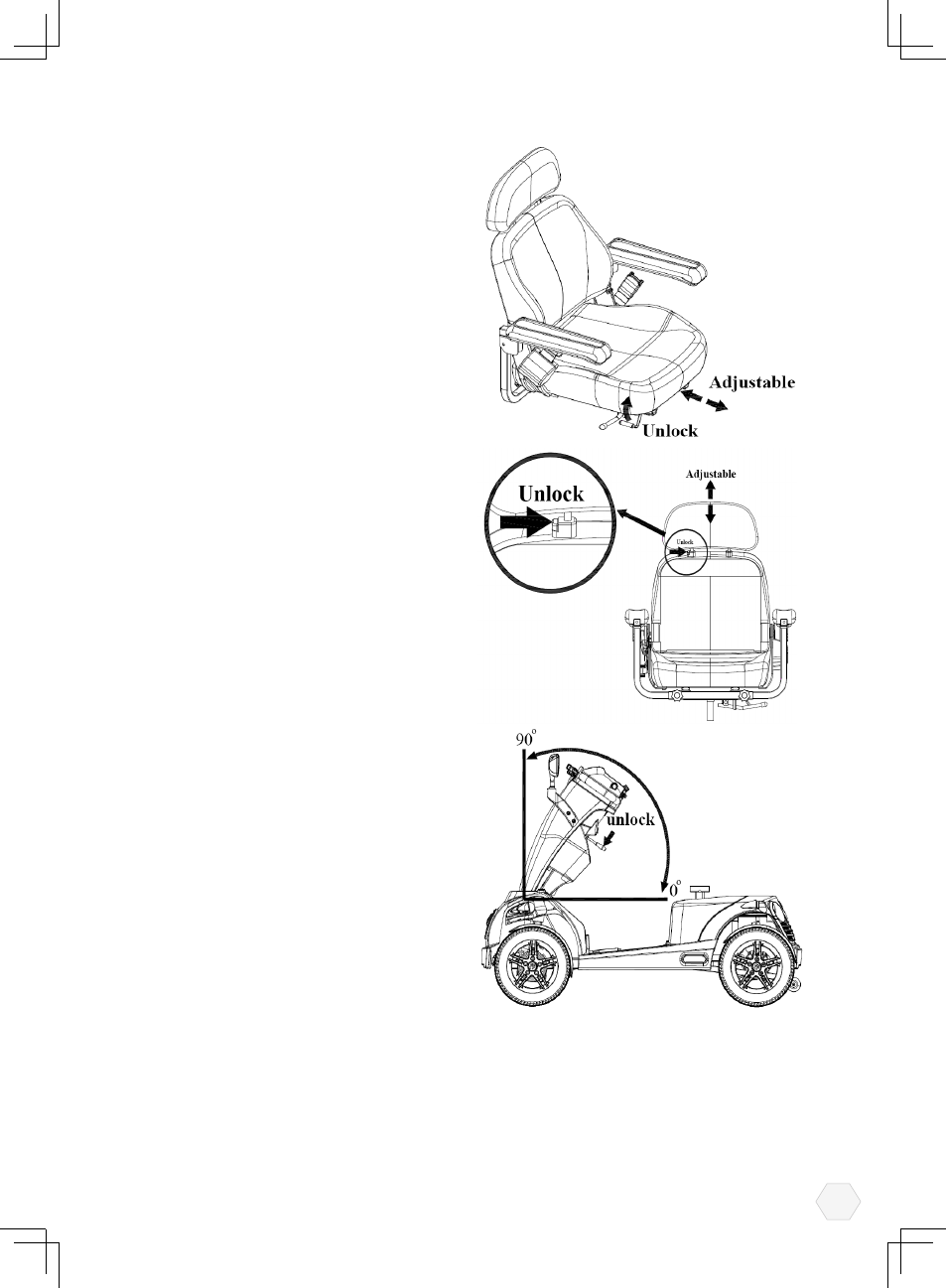

6.Seat Slide of the seat:Located on
the right front side of the seat. The lever
allows you to adjust your seat forwards
and backwards when sitting on the seat.
Simply pull up the lever and move in the
desired position backward by pushing or
forward by hitching. As soon as the lever
is released, the seat will lock into the new
position.
Caution: Check the seat has fully locked by
hitching backwards and forwards.
7.Backrest Height Adjustment:he upper
cushion of your backrest can be adjusted
for height, giving you more back support
if you are tall, by operating the small latch
cushion up or push down for the most
comfortable position.
8.Handlebar Adjustment:he handlebar
of your Scooter is designed to allow you
to position it in a comfortable driving
position. It can be locked into numerous
positions or unlocked to move freely for
transportation.
The handlebar lock is operated by a black
lever positioned on the right hand side of
the handlebar.
To release the handlebar from a locked
position pull the black lever upwards, the
handlebar will now move freely, but under
mild tension.
9. Tiller height adjustable:
