9

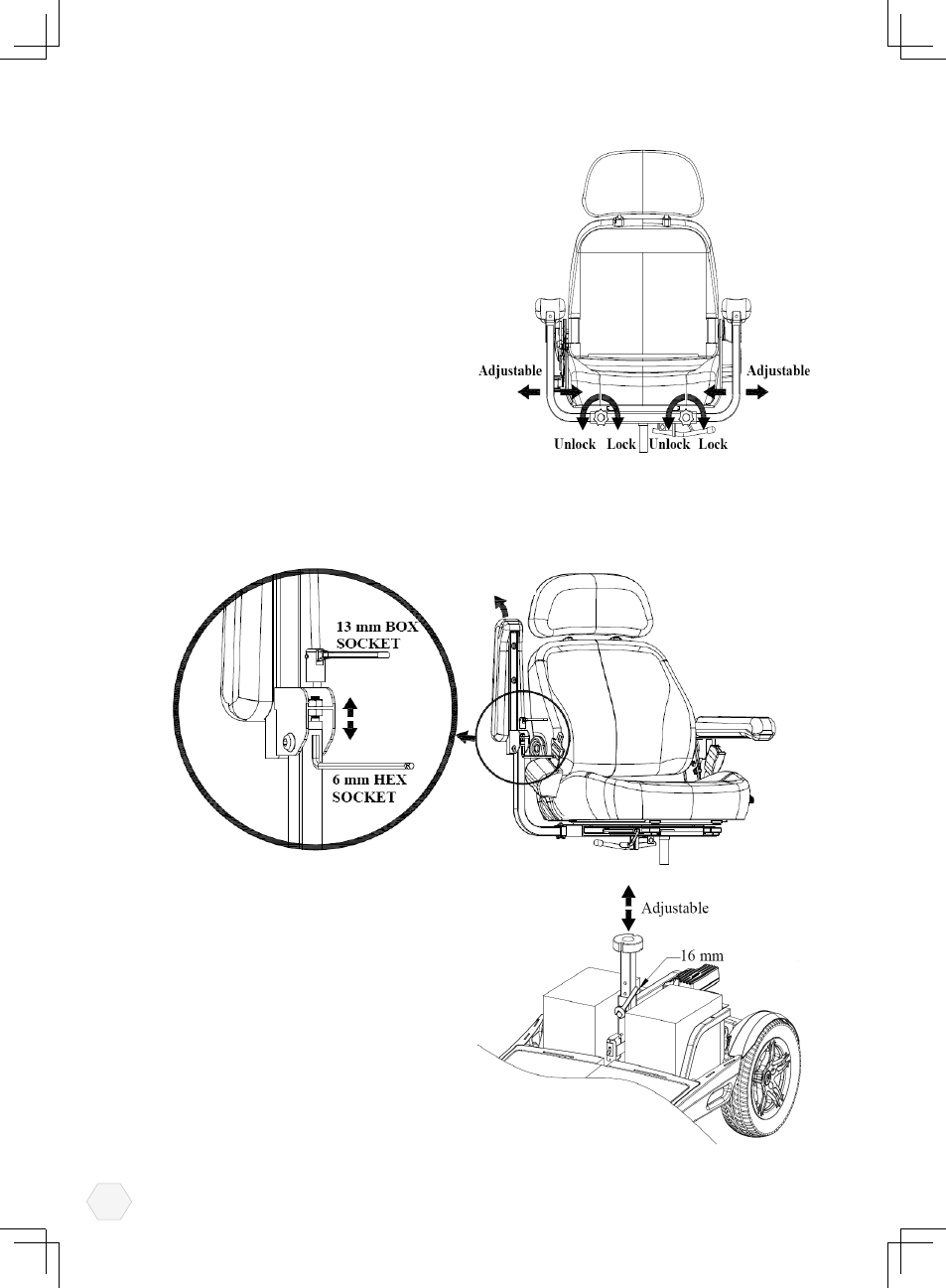

3.Armrest Width Adjustment:On each
side at the rear of the seat you will find a
large black knob. By simply loosening this
knob you are able to slide the armrests in
or out to whatever width you desire. Re-
tighten the knobs fully.
Warning: Do not drive your scooter with
the arms removed or in the raised position.
4.Armrest Angle Adjustment:he armrest
angle can be adjusted individually to suit
your needs.
To make adjustments to the armrest angle
you will need two 13mm wrenches (not
provided). Lift the arm upwards, you will
note the adjusting bolt. First loosen the locking nut, rotate the bolt in or out until the
required angle is found, lower the arm and check the angle for comfort; re-adjust as
necessary.
Finally the tighten locking nut.
5.Seat Height Adjustment:You may need
to alter the seat height setting at a later
date, please follow these instructions.
(1) Remove your seat from the Scooter by
lifting the seat.
(2) With the aid of a 16mm wrench (not
supplied) loosen the 10mm seat clamp
fixing bolt from side of seat post.
Remove the 10mm fixing bolt and
reposition the bolt into one of the four
preferred location holes of the seat
mounting tube.
Adjustable
wrench
