Use the ribbon as a cv/gate controller – Eowave Ribbon User Manual
Page 7
Use the Ribbon as a CV/Gate controller
The Ribbon has an audio out that can be turned into a CV/gate controller
with an audio cable. Like this, the Ribbon can control a modular synthesizer
directly. It's V/oct. Range is from 0 to 5V would be about 5 octaves. It is
possible to set less octaves with an attenuator module.

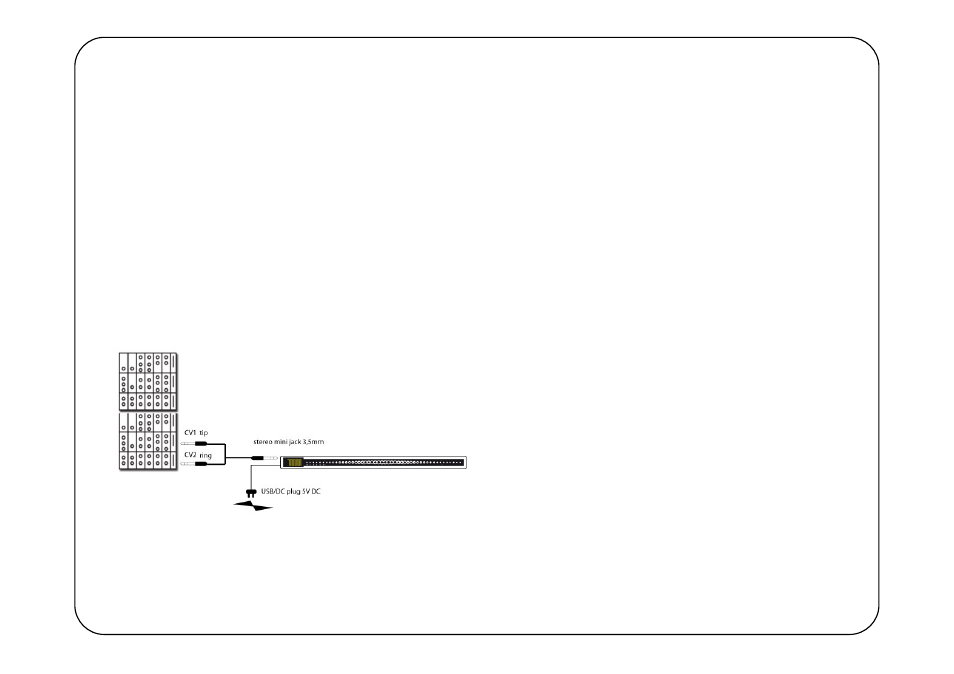

Plug your analogue synth CV In pitch and trigger to a Y jack with 1 mini
stereo on one side and 2 mini monos on the other side.
CV1 is the position of the Ribbon.
CV2 can be controlled by the pressure of the Ribbon or by the tactile pad.
