19
FASTENING THE INSTALLA-
TION BRACKETS
Each cooktop is provided with an instal-
lation kit including brackets and screws
for fastening the top to fixture panels
from 2 to 4 cm thick.
✓
Turn the cooktop upside down and
fasten the brackets “F and R” to the
appropriate socket holes, without
tightening the screws “B” for the
moment.
✓

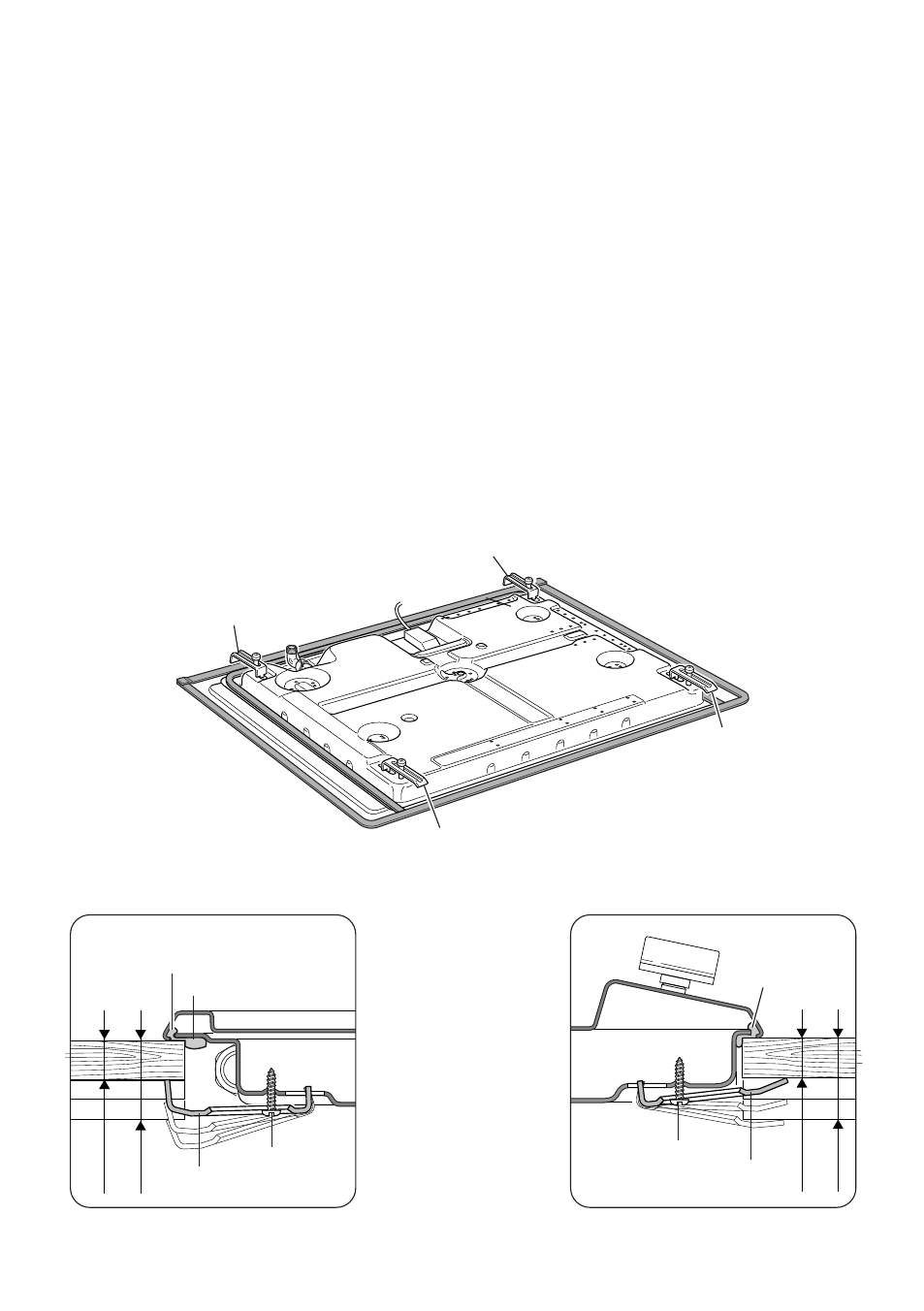

Make sure that the brackets are fas-
tened as shown in figures 16a, 16b
and 16c.
FASTENING THE COOKTOP
✓
Insert the cooktop into the hole and
position it correctly.
✓
Adjust the position of the brackets “F
and R” and tighten screws “B” to
block the cooktop firmly in position.
✓
With a sharp cutter or trimmer knife
trim the excess sealing material
around the edge of the cooktop.
Take care not to damage the work-
bench.
Rear side Front side
20
mm min.
40
mm max.
B
seal A
F
F
F
R
R
20
mm min.
40
mm max.
B
seal C
seal A
R
FRONT
fig. 16a
fig. 16b fig. 16c
Figures 16
