T65 Series Vertical Shaft Engines

10.

Slide the muffler off of the studs. See Figure 8.3.

NOTE: The exhaust gasket is made of a graphite

material. It will stick to the sealing surfaces
when pressure is applied, tearing when
pressure is relieved. The gasket can only be
used one time.

11.

Clean the cylinder head and muffler of any residual
gasket material.

12.

Using a new gasket, install the muffler by following
the above steps in reverse order.

NOTE: Tighten the muffler nuts to a torque of 80 -

106 in lbs (9 - 12 Nm).

13.

Test run the engine before returning to service.

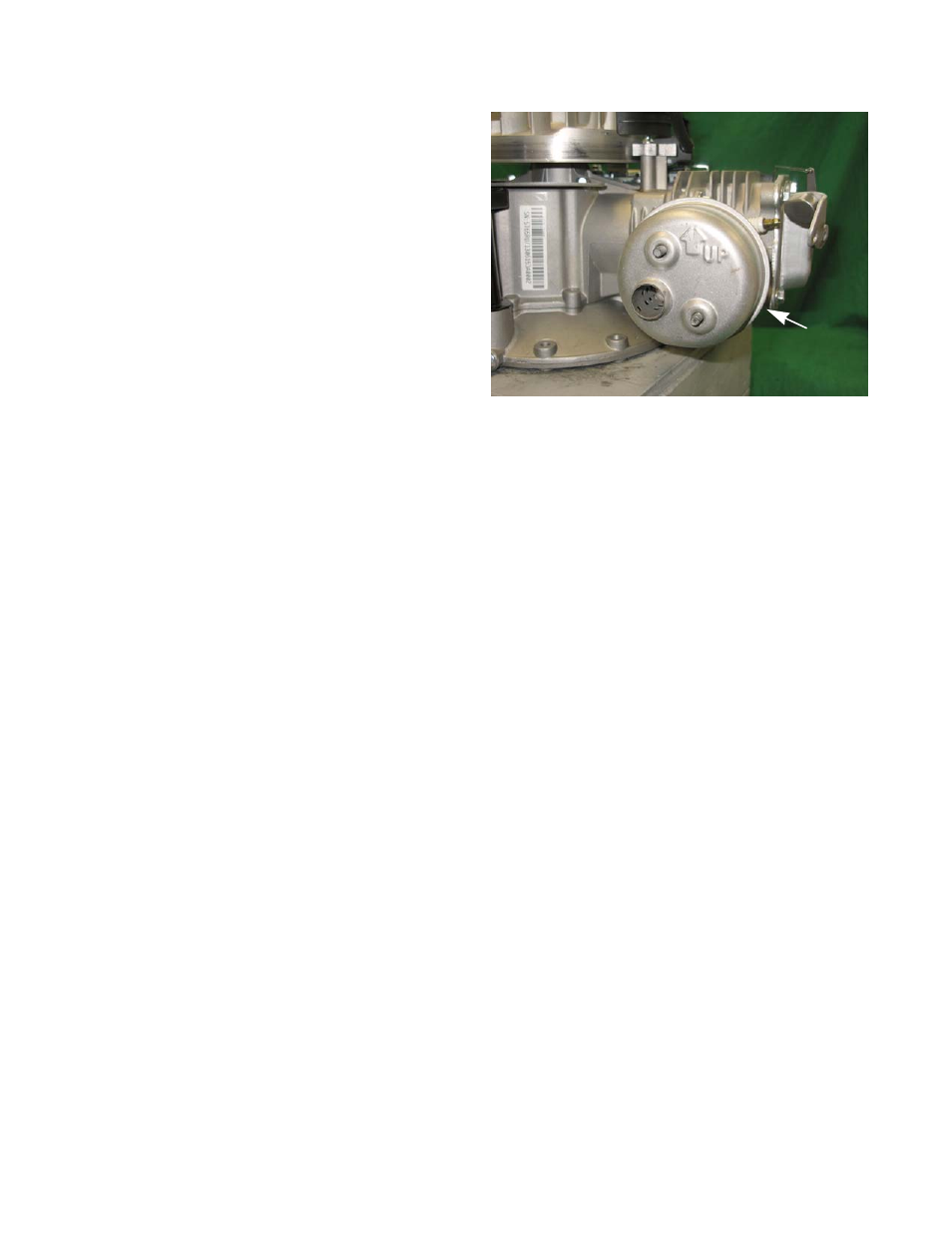

Figure 8.3

Muffler
