A IR I NTAKE S YSTEMS
35
4. Remove the Heat box (snow engines) or the control
panel (summer engines) by following the steps
described in appropriate section of this chapter.
5. Disconnect the throttle linkage and spring.
See Figure 3.13.
6. Slide the carburetor off of the mounting studs.
7. Remove the carburetor.
NOTE: The barb on the carburetor inlet is very sharp. If
The fuel line is pulled off of it, the line will be dam-
aged and must be replaced.
NOTE: The carburetors are not inter-changeable from one
engine model to another. To help prevent carbure-
tor mix-ups, the engine model number is stamped
on the carburetor by the fuel nipple.
See Figure 3.14.
8. Unhook the ignition wires from the clip molded into
the insulator plate. See Figure 3.15.

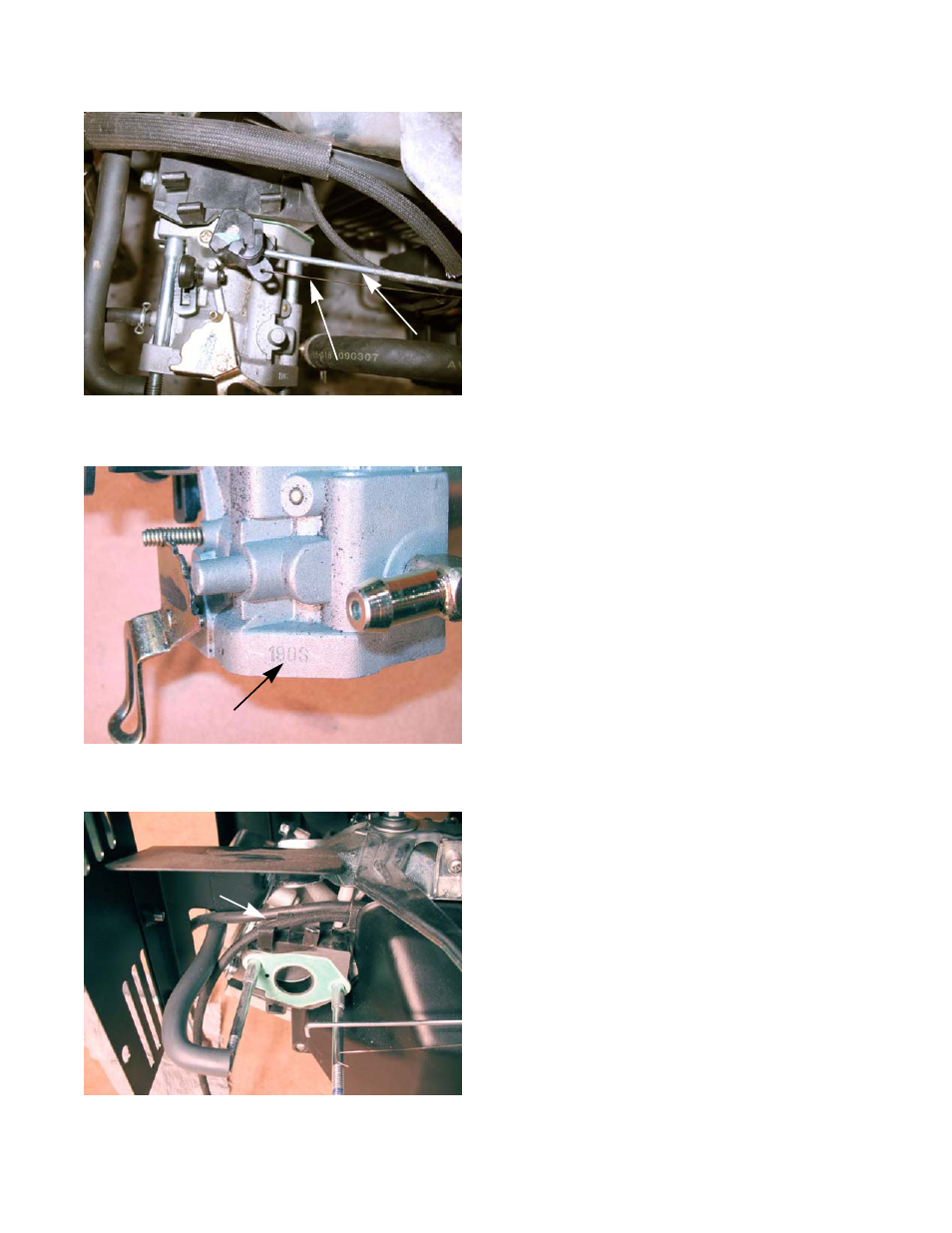

Figure 3.13
Throttle linkage
Throttle spring
Figure 3.14
Engine model number
Spark plug wire
Clip
Figure 3.15
Ignition wires
