11
Vermont Castings UVS27 Vent-Free Gas Heater
20005004
ST346

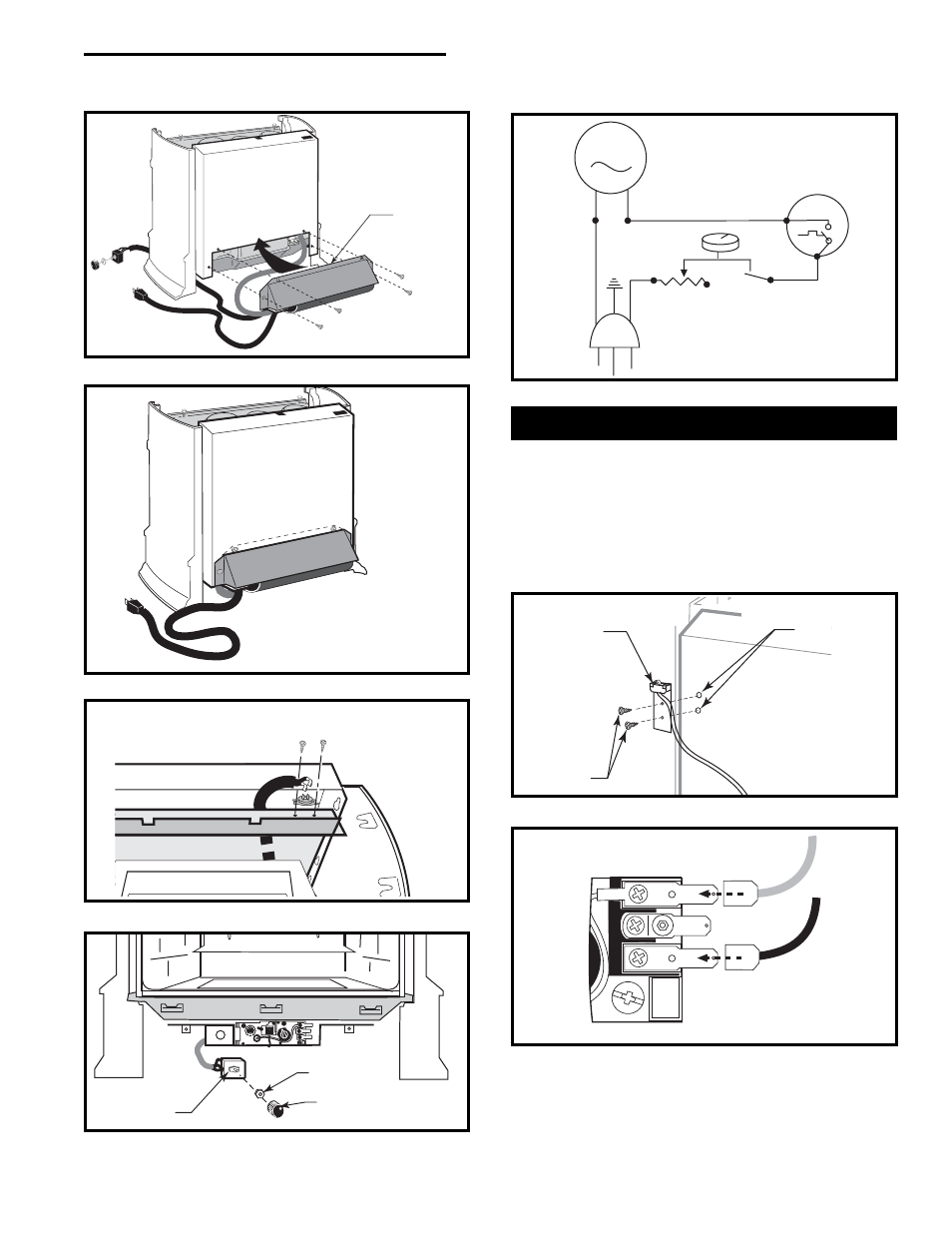

Fig. 12 Attach snapstat to inner shroud.
Rheostat
Retaining Nut
Control Knob
FK104
Fig. 13 Attach rheostat to bracket.
ST345
Fig. 11 Correct position of fan skirt installation.
Install ON/OFF Switch
The switch assembly parts are found in the parts bag.
1. Attach switch assembly to left rear side of stove
shroud using two screws and existing holes in
shroud. (Fig. 15)
2. Run wires down back of stove, under bottom of rear
shroud to valve.
3. Attach wires to valve terminals. (Fig. 16)
TP
TH
TPTH
ST228
Fig. 16 Attach switch wires to valve .
Existing
Holes
Switch
Assembly
Screws
ST315
Fig. 15 Attach switch assembly to rear shroud.
MOTOR
SNAPSTAT
ON/OFF
RHEOSTAT
WHT
WHT
BLK BLK BLK
GRN
BLK
ST236
Fig. 14 Fan wiring diagram.
Upper
Flange
ST344
Fig. 10 Place upper flange behind lower edge of shroud.
