Make sure the slot in both rear deck brackets
aligns with the implement lift link on each side of
the tractor (See Figure 43).

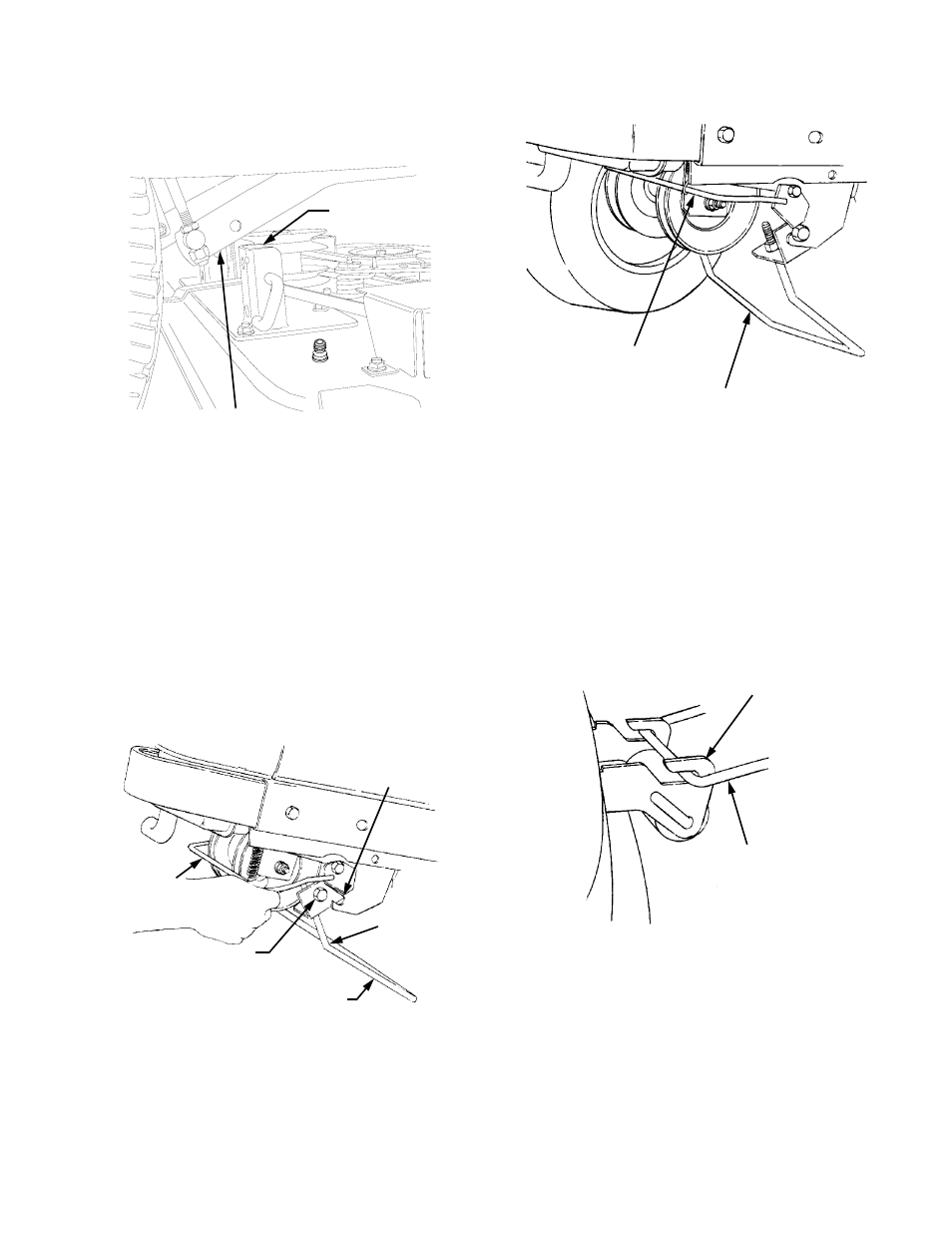

Figure 43

Refer to Figure 44 to ensure the correct orientation
of the front lift rod/bracket assembly [form (bend)
in sides of rod point downward]. From the front of
the tractor, push downward and hold the tractor
quick-attach rod. Slide the shoulder bolts on each
side of the front lift rod/bracket assembly fully into
the left and right tractor latch receivers. Release
the tractor quick-attach rod to capture the front lift
rod/bracket assembly in the tractor latch receivers
(Refer to Figure 45).

Figure 44

Figure 45

While holding the front lift rod up, slide the mower
deck forward until the rod aligns with both front
roller bracket slots. Lower the lift rod into the front
roller bracket slots and slide the deck rearward to
engage the lift rod fully forward in the slots of the
deck front roller bracket (See Figure 46).

Figure 46

SLOT IN REAR

DECK BRACKETS

(BOTH SIDES)

IMPLEMENT

LIFT LINKS

(BOTH SIDES)

QUICK

ATTACH

ROD

SHOULDER BOLT

(BOTH SIDES)

FRONT LIFT

ROD/BRACKET

ASSEMBLY

TRACTOR

LATCH RECEIVER

(BOTH SIDES)

FORM

QUICK ATTACH ROD

FRONT LIFT ROD/
BRACKET ASSEMBLY

FRONT

LIFT ROD

FRONT ROLLER

BRACKET
