TRACTOR AND DECK PREPARATION
1. ATTACHING THE CHUTE DEFLECTOR
WARNING
Do not operate the mower deck without the chute
defelector installed and in its down position.
1. Remove the hex cap screws, bell washers and hex
nuts installed in the deck at the chute opening.
2. Position the hinge bracket of the deflector assem-
bly to align with the holes in deck. Insert the hex
cap screws from the underside of the deck and se-
cure with the bell washers and hex nuts. Note: the
crowned (rounded) surface of the washers go to-
ward the hex nuts.
3. Refer to SECTION V - MOWER DECK when in-
stalling the mulching plug.
2. CONNECT THE BATTERY
WARNING
Battery posts, terminals and related accessories
contain lead and lead compounds. Wash hands
after handling.
The tractor is shipped with an activated sealed battery.
The positive battery cable is factory connected. The
negative cable must be connected.
Note: Make sure the ignition switch is in the "OFF" po-
sition before attaching the battery cables.
1. Pull the protective cap off the negative terminal of
the battery, and remove the hex cap screw and nut
from the free end of the negative battery cable.
2. Connect the negative battery cable (black) and
green ground wire to the negative terminal (NEG)
of the battery using the hex cap screw and nut.
3. Slide the black terninal cover over the negative
terminal of the battery.

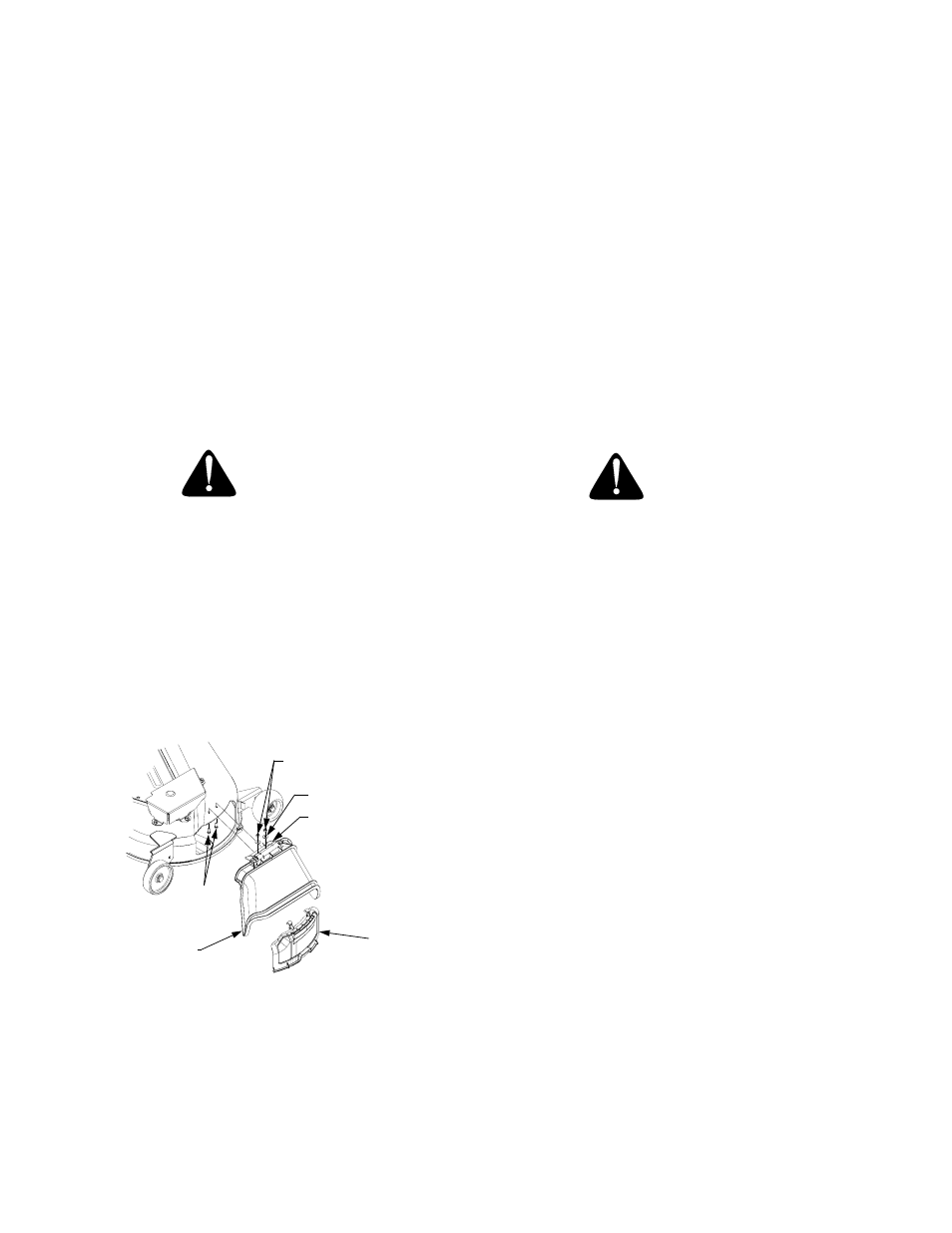

HEX CAP
SCREWS
CHUTE
DEFLECTOR
ASSEMBLY
HEX NUTS
BELL WASHERS
HINGE BRACKET
MULCHING
PLUG
(PACKED WITH MANUAL)
