9
Hour Meter
The hour meter is located in the center of the warning
light cluster. It reads the elapsed time engine has run.
See Figure 6.

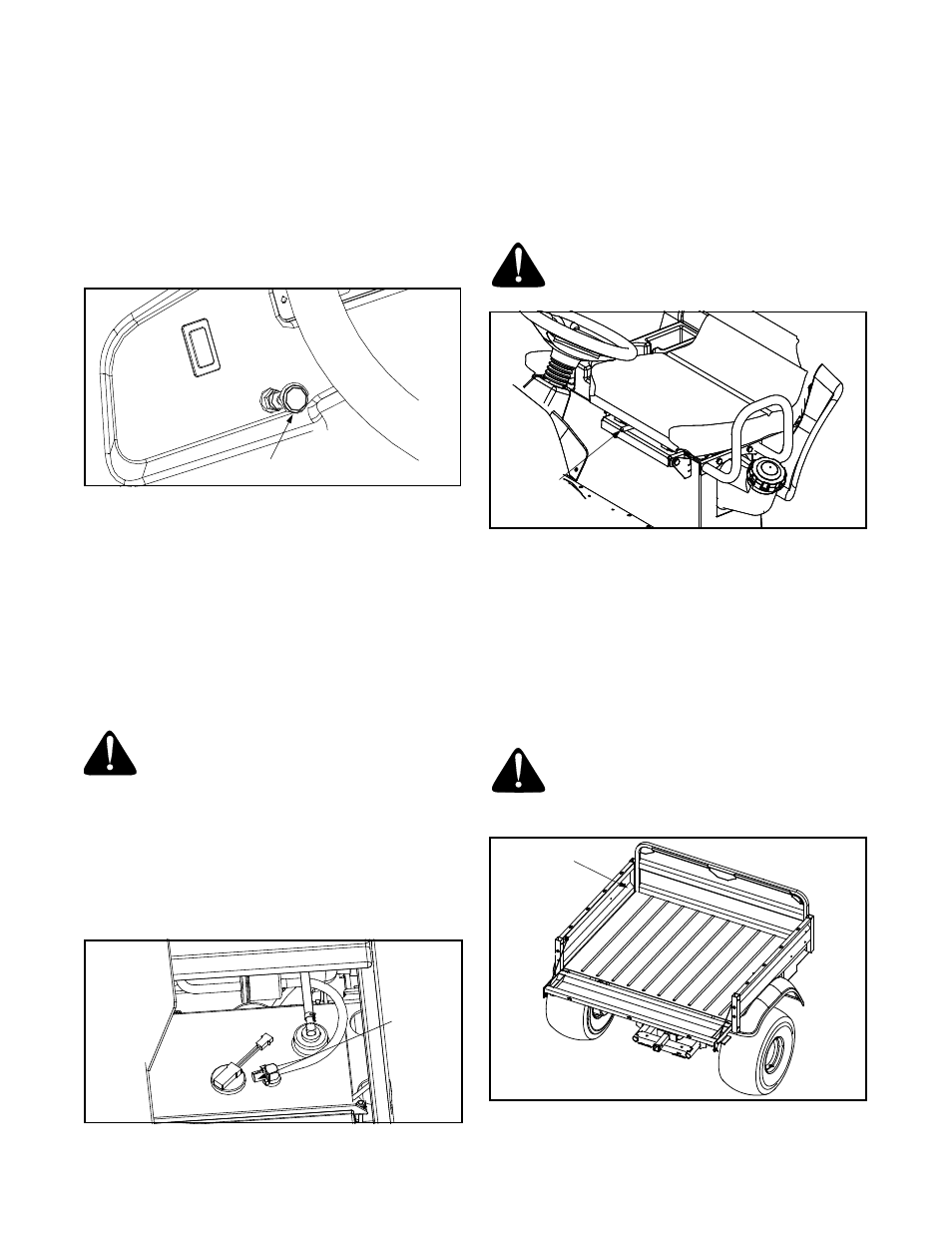

Choke
The choke lever is located on the left side of the dash
panel. The choke is used when starting a cold engine. It
richens the fuel mixture for cold weather starting.
See Figure 7.
Figure 7
Differential Lock Switch
(Optional)
The differential lock switch is located on the left side of
the dash panel. When pushed, the differential switch
locks the differential so both drive wheels will pull
equally when rear wheels start to slip.
Cup Holders
The cup holders are located between the seats. They
are designed for the use of non-alcoholic beverages.
WARNING: Never operate this vehicle while
under the influence of alcohol or drugs. Doing
so can result in serious personal injury or
death.
Fuel Shut Off Valve
The fuel shut off valve is located under the seat and it is
strapped onto the fuel tank. It controls fuel to the
engine. To turn fuel off, turn knob so indicator is down.
To turn fuel on, turn knob to the up position.
See Figure 8.
Figure 8
Adjustable Seat Lever
The adjustable seat lever is located beneath the
driver’s seat on the front side and it is used to move the
seat forward and backward. See Figure 9.
• Slide the lever to the left and push the seat forward
or back to the desired position.
• Release the lever so that it locks the seat in place.
WARNING: Make sure seat is in locked
position prior to operation and do not try to
adjust the seat position while operating the
vehicle.
Figure 9
Cargo Box
The cargo box is raised by a gas spring. Manually
remove the contents of the cargo box before lifting the
cargo box. Release the latch and lift up the cargo box.
Once the cargo box is in the raised position, access to
the engine is possible. If equipped with a electrical lift,
the cargo box can be raised to dump cargo.
See Figure
10.
WARNING: Do not exceed the vehicle’s
Total Load Capacity of 1,200 lb., which
includes driver, passenger, accessories, and
cargo. Do not exceed 800 lb. in the cargo
box.
Figure 10
Choke
Fuel Shut
Off Valve
Seat Lever
Cargo Box
