REPAIR PROCEDURES
15
Switch box assembly
The switch box assembly is located on the upper han-
dle bar. The switch and circuit breaker are housed
inside of it. To service the switch box assembly:
NOTE: Opening the switch box assembly will
void the warranty on this mower. For warranty
repairs, replace the switch box and harness as a
whole assembly.
1. Unplug the power cord.
2. Slide the safety bail out of the switch box assem-
bly.
3. Remove the two mounting screws using a T-27
Torx driver. See Figure 3.4.
4. Unhook the harness from the clips on the handle
bar. See Figure 3.5.

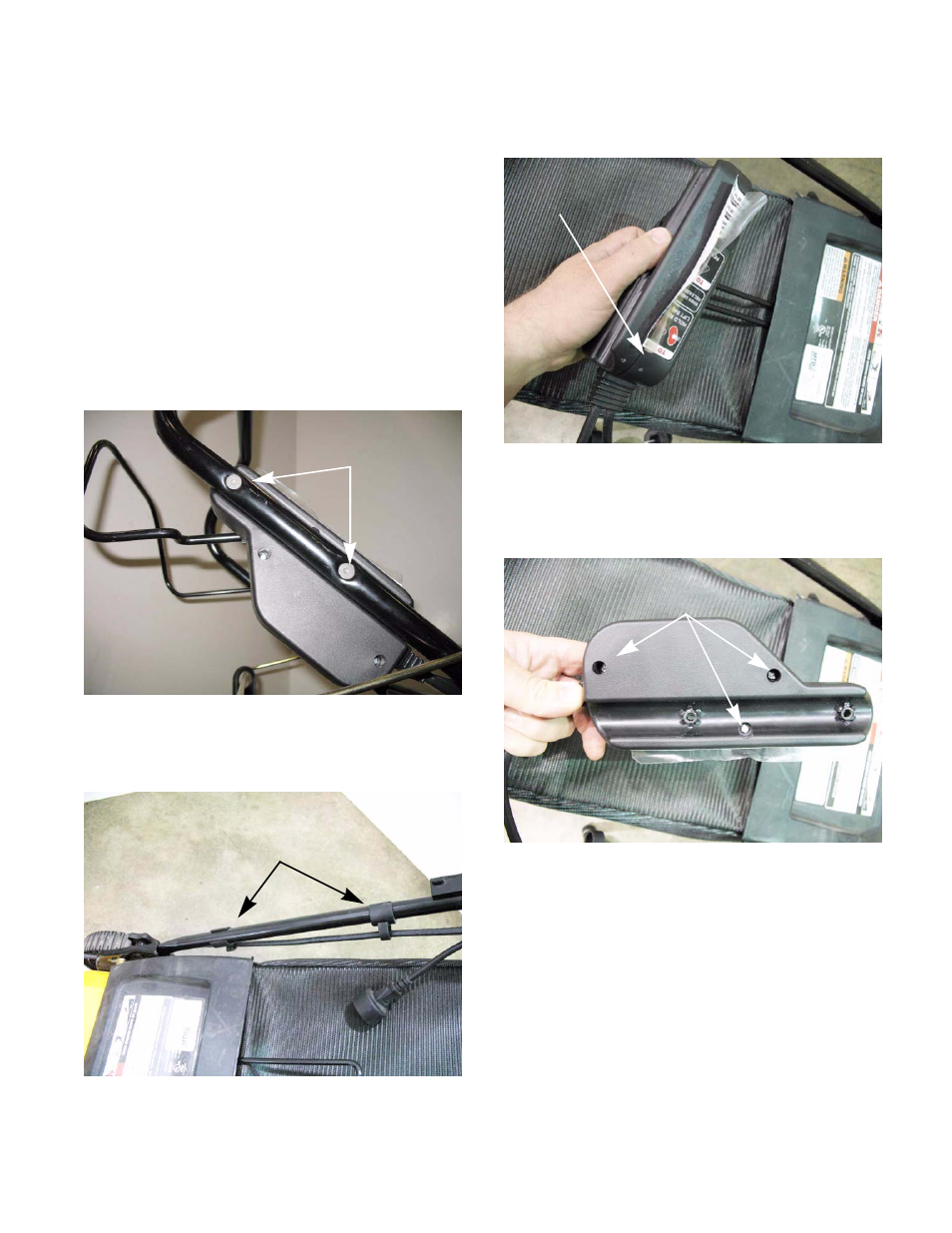

Figure 3.4
Mounting screws
Figure 3.5
Clips
5. Peel back the label on the side of the switch box
assembly to expose the seam. See Figure 3.6.
6. Remove the three screws holding the housing
together using a #2 phillips screwdriver. See Fig-
ure 3.7.
7. The switch box is now serviceable.
NOTE: The test procedures for the components
of the switch box are in chapter 2 Electrical sys-
tem.
8. Install the switch box by following the above
steps in reverse order.
9. Test run the mower before returning it to service.
Figure 3.6
Seam
Figure 3.7
Remove screws
