Remote surveillance – COP-USA DVRHD-16D1-HDMI User Manual
Page 123

4/8/16 CH DVR Quick Start Guide
Enter into Backup interface (refer to Fig 4-10), set the start & end time, select
channels and then click Search button to display the searched data in the
data backup list box.
Press Backup button to begin to write video from HDD inside DVR to backup
device. Click Start button to start backup.

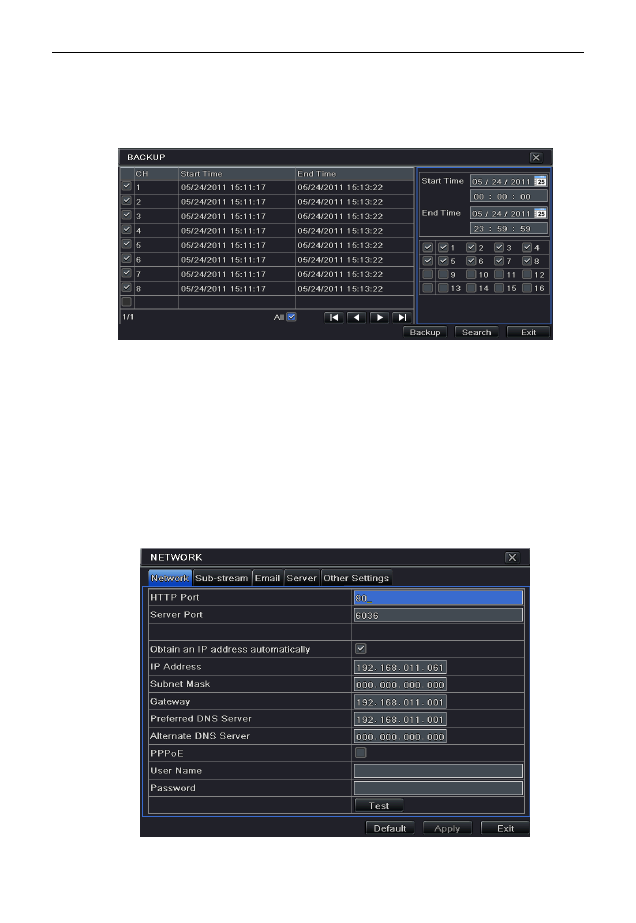

Fig 4-10 Backup setup
5. Remote Surveillance
In order to view the DVR from a network it must be connected to a LAN/WAN
or internet. The network setup should be done accordingly.
5.1 Access DVR on LAN
•
Please enter into MenuSetup Network Setup as shown in Fig 5-1.
•
Input IP address, Subnet, Gateway. If using DHCP, please enable DHCP in
both the DVR and the router. Enter into Menu Information Network,
and user can check the network settings of the DVR.
Fig 5-1 Network configuration
