4/8/16 CH DVR Quick Start Guide

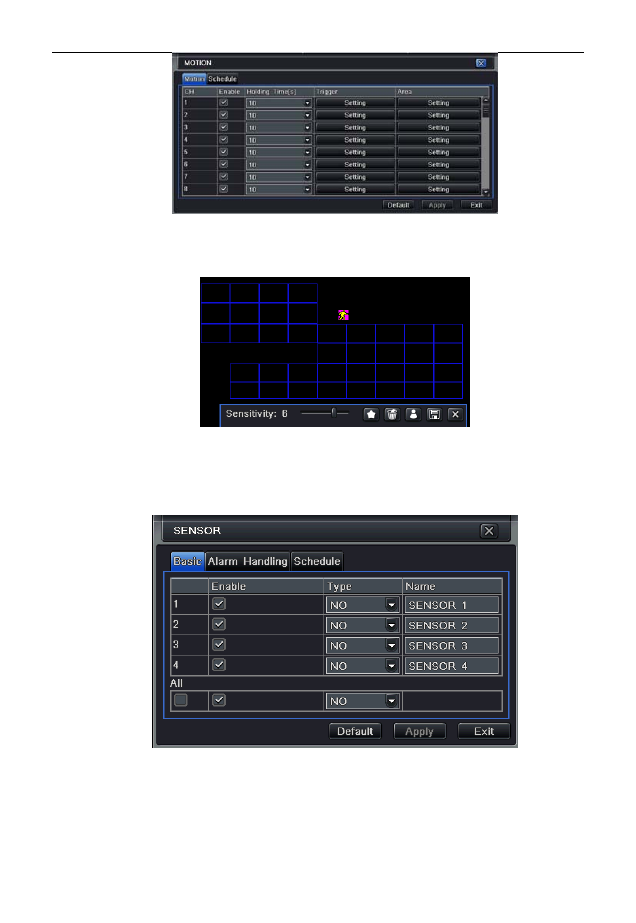

Fig 4-4 Motion detection interface

Enter Motion detection area (refer to Fig 4-5) to set Sensitivity and Detection

area.

Fig 4-5 motion detection area setup

4.2.4 Senor Alarm Recording
Enter into main menu-Alarm configuration-Sensor alarm (refer to Fig 4-6), and

enable Detection first. Then setup the device type.

Fig 4-6 sensor alarm record

Enter into Trigger configuration, select alarm out and recording cameras and
linked PTZ; set Alarm out hold time and Buzzer hold time. Click OK to save
settings.

4.3 Playback
