4/8/16 CH DVR Quick Start Guide
11 Network port 12 Connect to external sensor1-8
13 4ch relay output. Connect
to external alarm.
14 Connect to speed dome
15 Connect to keyboard 16 Grounding
17 For cooling the device 18 POWER INPUT
19 POWER SWITCH

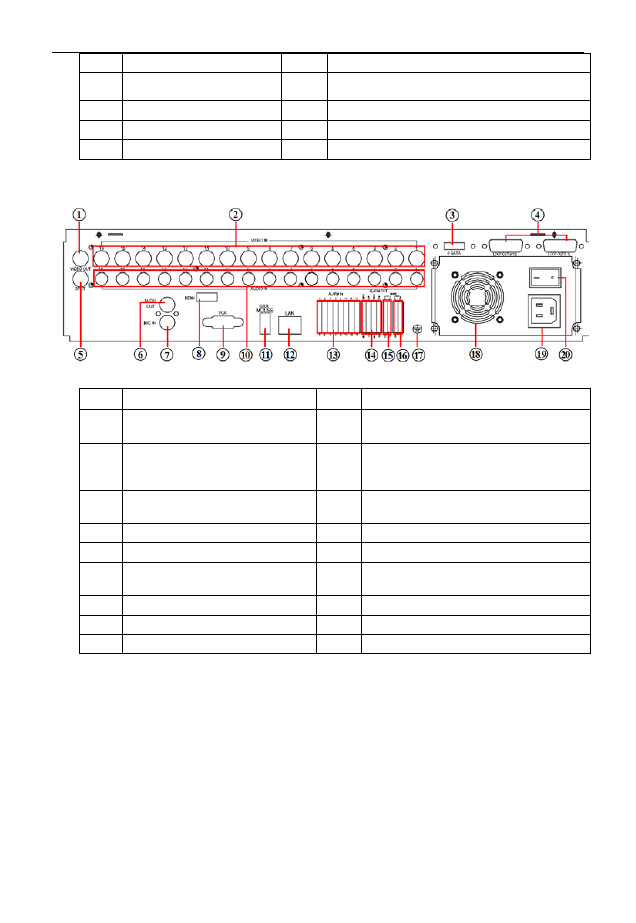

2.3 Rear view for 16-ch DVR
2-3 Rear view for 16-ch DVR
1 Video out：Connect to monitor 2 Video input channels from 1-16
3 Connect to HDD for backup 4 For outputting 1-16ch image
independently
5 Connect to monitor as an AUX
output channel by channel. Only
video display, no menu show
6 Audio output, connect to the sound box
7 Talk 8 Connect to high-definition display
device
9 VGA output, connect to monitor 10 16 CH Audio input
11 Connect to USB mouse 12 Network port
13 Connect to external sensor1-16 14 4ch relay output. Connect to external
alarm
15 Connect to speed dome 16 Connect to keyboard
17 Grounding 18 For cooling the device
19 POWER INPUT 20 Switch on/off
3. Power on
Step1: connect with the source power; switch on the power button near the
power port in the rear panel
Step2: the device will be loaded, and the power indicator will display blue
Step3: before start, a WIZZARD window will be pop-up and show some
information about time zone，time setup ，network configuration, record
configuration and disk management. User can setup here and refer to the
concrete setup steps from the corresponding chapters. If users don’t want to
setup Wizard, please click Exit button to exit.
After the device power on, if there is no menu or only has live image display,
