4/8/16 CH DVR Quick Start Guide
This unit supports live record playback, time search, event search and image
search.
4.3.1 Live playback
Click Play button to playback the record. Refer to Figure4-7. User can do
concrete operation by click the buttons on screen.

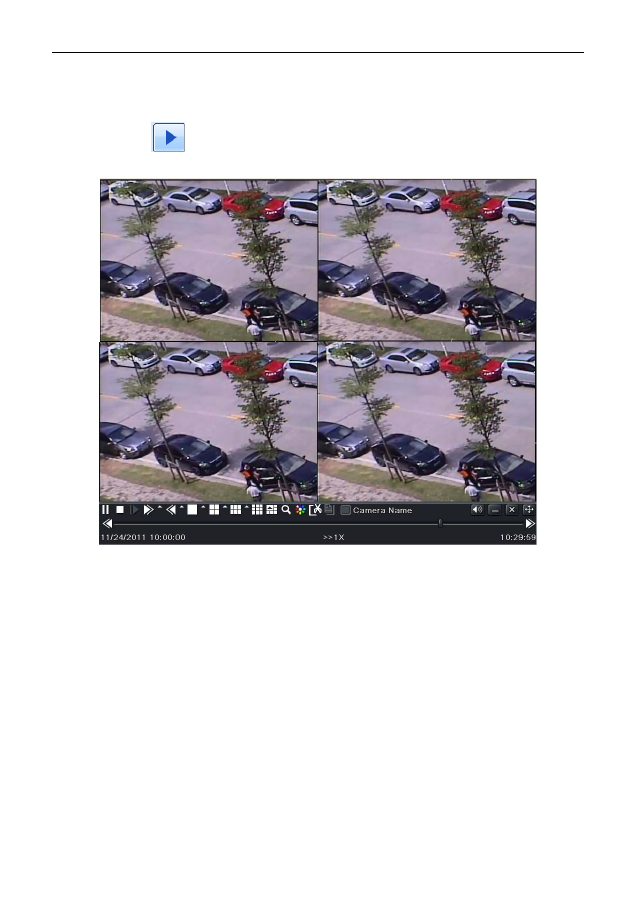

Fig 4-7 live playback
4.3.2 Time search
Enter into Search configuration and select Time search. If it recorded in a
certain day, the date will show highlight.
Select a date and press Search button. Click the time grid to set the play start
time or input play record time manually. The selected time match the blue grid.
Click Play button. It will play from the time point where user set.
Click the relative buttons on the screen to do fast forward/rewind, pause, stop,
and change the screen mode and re-search.
