6

Figure 6 Figure 7

.

INSTALLATION

a

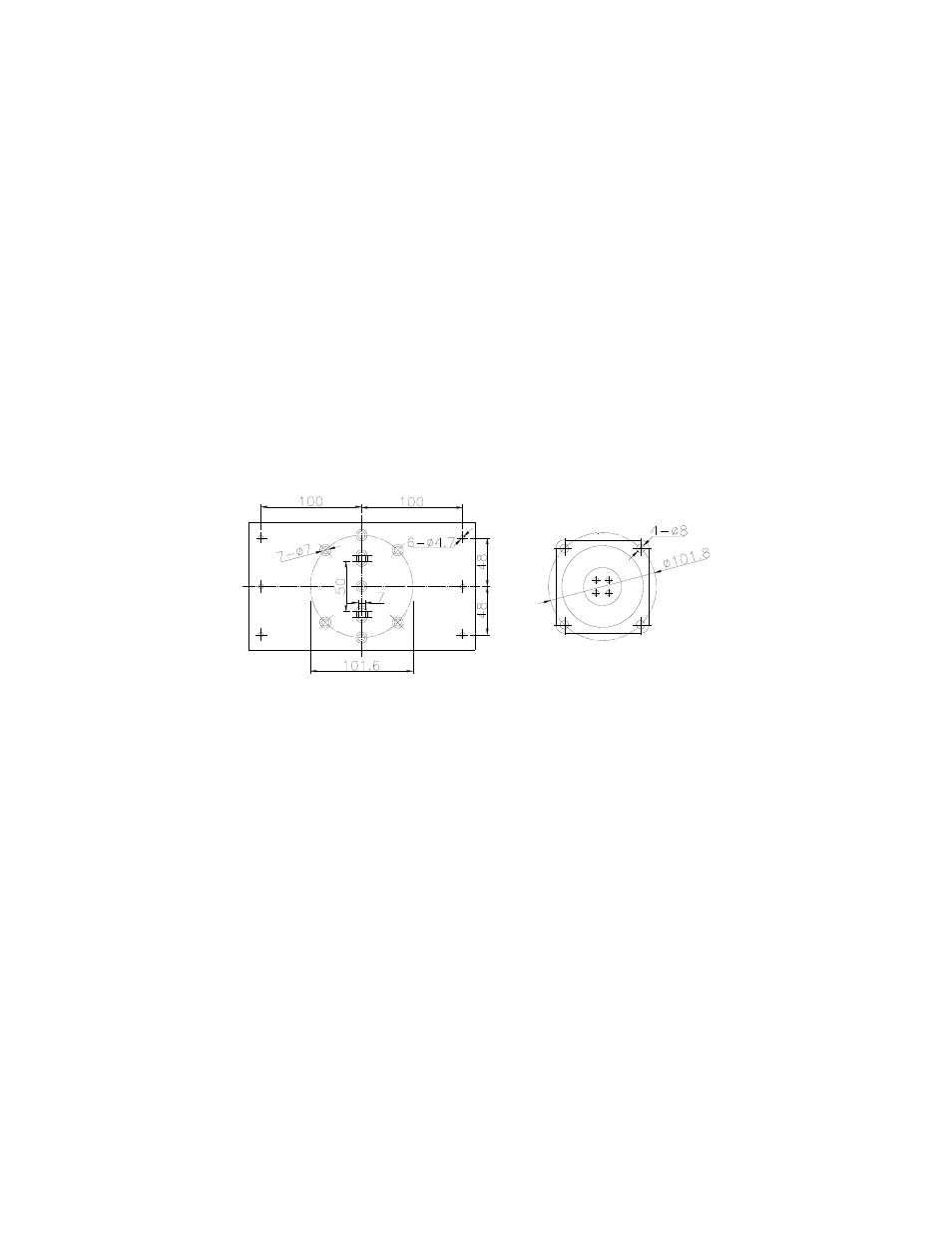

、 This outdoor Pan/Tilt unit is intended to be mounted on a wall mount. The unit base has 4

holes equi-spaced on 4

″ (101.6mm) P.C.D[see figure 8], which line up with the bracket

mounting holes. Mount the unit base onto the bracket using the four M6

×25 Hex head screws,

6mm washers and the M6 nuts provided in the packing kit.

b

、 Remove the six M4mm fixing screws from the top platform using the three M1/4″ -20screws

(supplied). Secure the Sub-plate to the base of the Camera Housing [see figure 1]. Secure the

sub-plate (with camera housing attached) with the six 6mm fixing screws removed earlier.

Figure 8

Ⅶ. SPECIFICATIONS

Input Voltage: AC 24V

Angular Travel: Pan 350

°

Tilt +20

°~ -90° (OTT MOUNT)

Speed: Pan 0.25

°~ 10°/second

Tilt 0.25

°~ 10°/second

Limit Stop: Externally adjustable

Load Rating: 15Kgs (OTT MOUNT)

Operating Temperature: -35

℃~+60℃

Construction: Aluminum alloy casting

Measurement: 225(L)

×180(W)×260(H)(OTT MOUNT)

Unit Weight: 10 Kg
