Operation Manual for Intelligent Speed Dome Camera
4
8 OFF OFF OFF ON OFF OFF OFF OFF OFF OFF
9 ON OFF OFF ON OFF OFF OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF OFF OFF
11
ON ON OFF ON OFF OFF OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF OFF OFF
13
ON OFF ON ON OFF OFF OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF OFF OFF
16 OFF OFF OFF OFF ON OFF OFF OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF OFF OFF
…
… … … … … … … … … …
1023 ON ON ON ON ON ON ON ON ON ON
Table 1

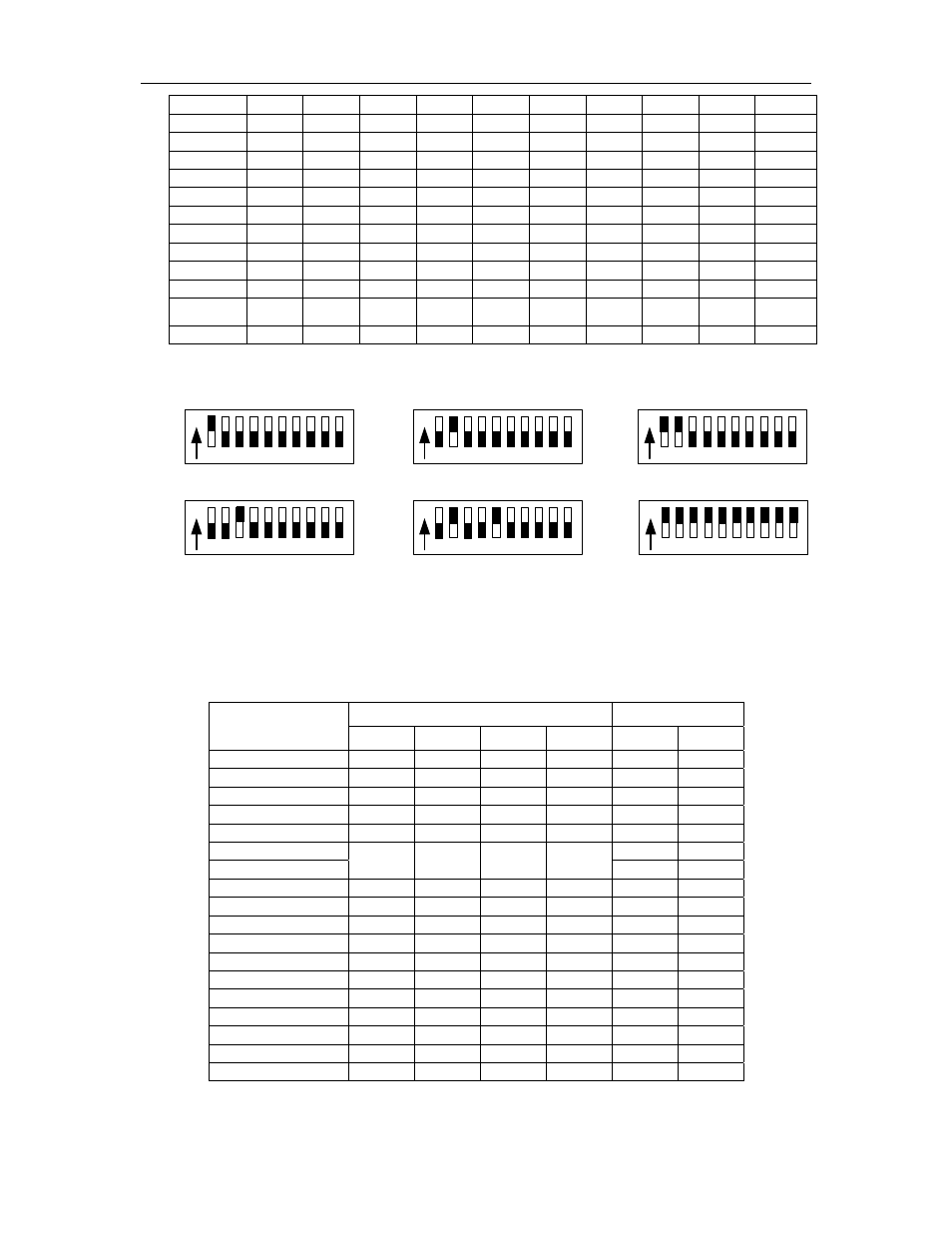

For Example:
Speed Dome Addr ess=1
ON
1 2 3 4 5 6 7 8 9 10
Speed Dome Addr ess=2
ON
1 2 3 4 5 6 7 8 9 10
Speed Dome Addr ess=3
ON
1 2 3 4 5 6 7 8 9 10
Speed Dome Addr ess=4
ON
1 2 3 4 5 6 7 8 9 10
Speed Dome Addr ess=18
ON
1 2 3 4 5 6 7 8 9 10
Speed Dome Addr ess=1023
ON
1 2 3 4 5 6 7 8 9 10
3. Setup of the Protocol and the Default Baud Rate. As shown in Figure 2, SW2 is used
to set the protocol of communication and the baud rate used by the dome camera. DIP-4
to DIP-1 of SW2 is used to select protocols and 16 different protocols can be selected in
maximum. Following table shows states of coding switches of protocols selected by the
dome camera
Protocols
DIP status Normal Baud Rate
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6
SAMSUNG ON OFF OFF OFF OFF ON
B01 ON OFF OFF OFF OFF ON
NEON ON OFF OFF OFF OFF ON
Santachi OFF ON OFF OFF OFF ON
PELCO-D ON ON OFF OFF OFF OFF
PELCO-P/4800
OFF OFF ON OFF
ON OFF
PELCO-P/9600 OFF ON
PANASONIC ON OFF ON OFF OFF ON
Longcomity OFF ON ON OFF OFF ON
HUNDA600 ON ON ON OFF OFF ON
LILIN OFF OFF OFF ON OFF ON
VICON ON OFF OFF ON ON OFF
MOLYNX OFF ON OFF ON OFF ON
KALATEL ON ON OFF ON ON OFF
VCL OFF OFF ON ON OFF ON
Reserved ON OFF ON ON OFF ON
ALEC OFF ON ON ON OFF ON
Ultrak ON ON ON ON OFF ON
Table 2
