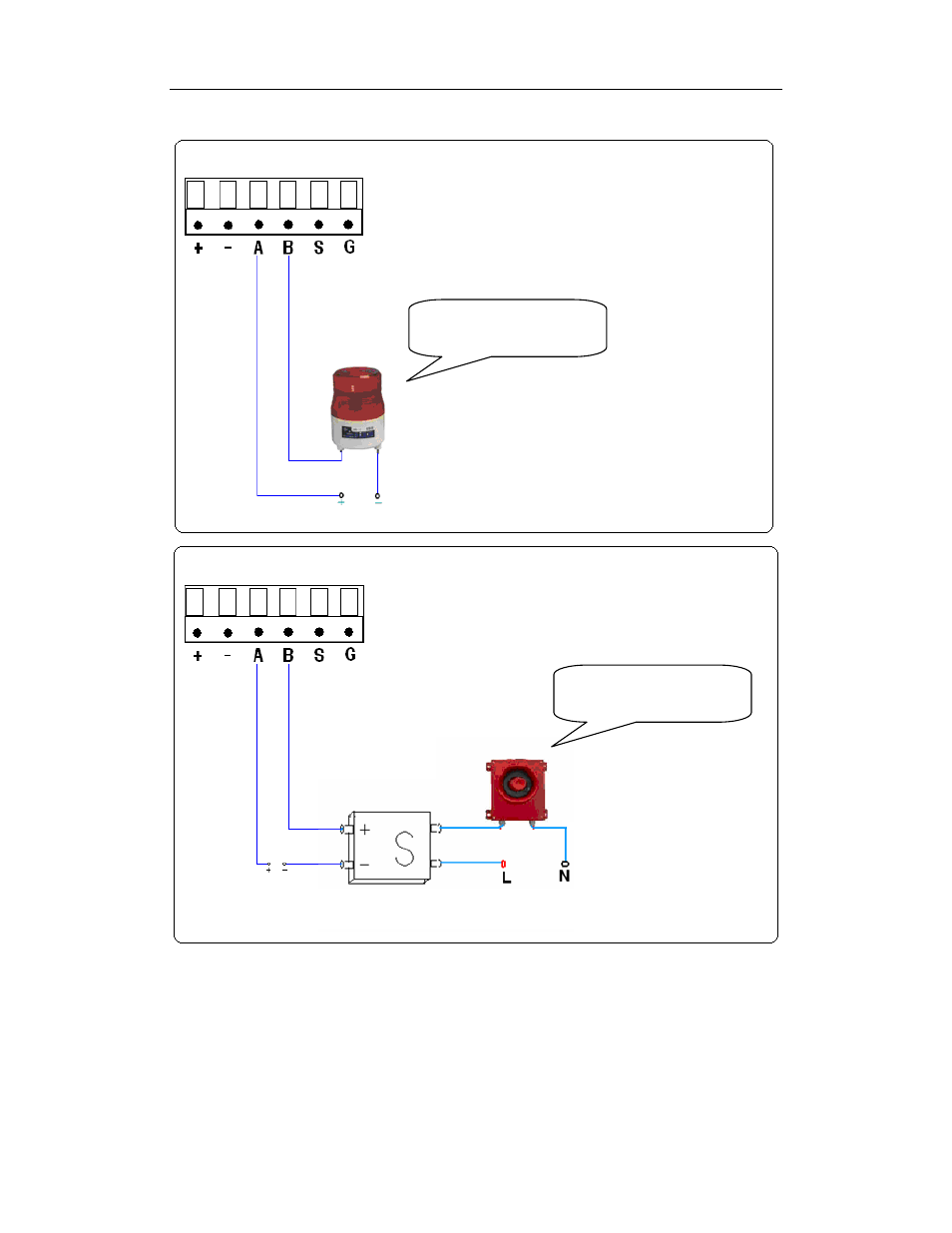

2. Alarm output connection:
Circuit Breaker
Alarm output device power supply
Alarm power supply (Maximum AC: 110V, 1A, 110W)
Its maximum working volt
should not exceed
110V
High Voltage(exceed
110V)、High Current
IP Camera Wiring Socket
IP Camera Wiring Socket
Alarm output device
Alarm output device
Circuit Breaker
Power Supply
