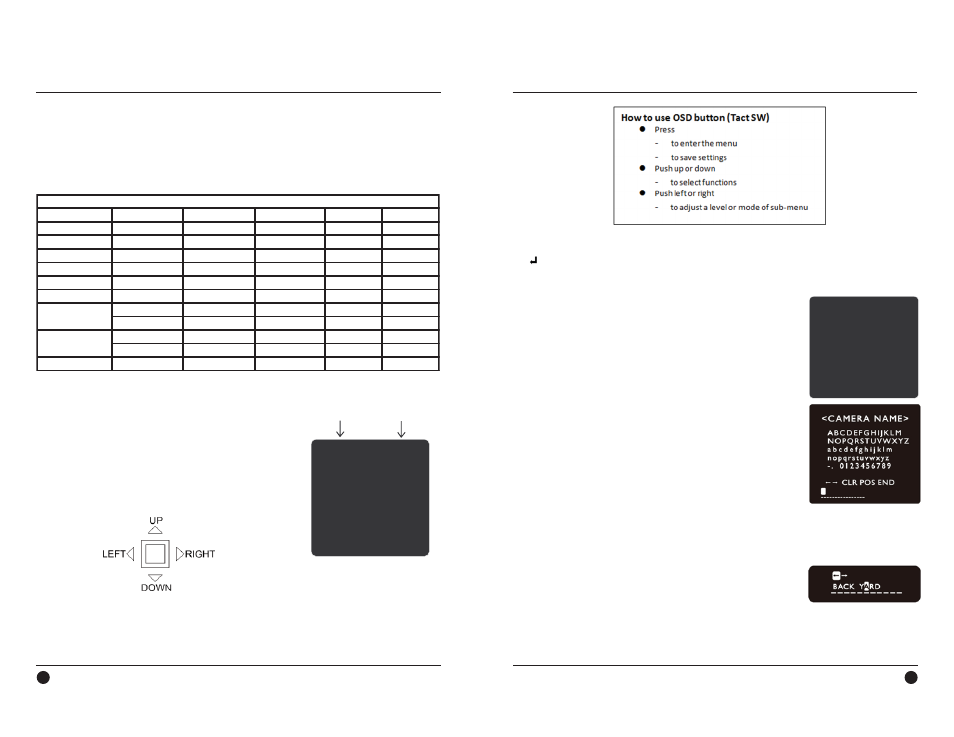

CG32WD OSD Manual for function control
Use the function setup switch (OSD switch) for function setup. OSD switch is different from
model to model. Please refer to hardware installation guide of each model.
Note
• If ‘ ‘ indication appears on a selected sub-menu, press the Tact SW to get into a following menu.
• If ‘ --- ‘ indication appears on any sub-menu, it means the function with this mark is deactivated.
(Ex : When SENS-UP is OFF, 3-DNR becomes deactivated ‘---‘ )
1. Press the Tact SW to enter
2. Move the arrow to a specific menu by pushing the
Tact SW up or down.
3. Adjust the selected feature by pushing the Tact SW
left or right
1. On Screen Display (OSD) Menu Configuration
2. Setting up the menu
4. When completed, move the arrow indicator to ‘EXIT’ and press the Tact SW to
finish all settings.
‘ ‘
CAM NAME ON OFF
LENS MANUAL DC
EXPOSURE AGC SHUTTER SENSE-UP INITIAL SET PREVIOUS
DAY/NIGHT AUTO DAY NIGHT EXT
WDR/BLC/ECLPS WDR BLC ECLPS OFF
WHITE BAL ATW COL-ROLL PUSH MANUAL
3D-DNR ON OFF
DZOOM MODE IMAGE FREEZE D-EFFECT CONTRAST SHARPNESS
COLOR ADJUST INITIAL SET PREVIOUS
ITS MODE MOTION DET PRIVACY MASK LANGUAGE STABILIZER
L/L SYNC MONITOR TYPE FACTORY RESET COMM SET PREVIOUS
EXIT
MAIN MENU
EFFECTS
SPECIAL
MAIN MENU SUB MENU
1. CAM NAME
2. LENS
3. EXPOSURE
4. DAY/NIGHT
5. WDR/BLC/ECLPS
6.WHITE BAL
7. 3D-DNR
8.EFFECTS
9.SPECIAL
10.EXIT OFF
MANUAL
AUTO
WDR
ATW
ON
RET
1. CAM NAME
2. LENS
3. EXPOSURE
4. DAY/NIGHT
5. WDR/BLC/ECLPS
6.WHITE BAL
7. 3D-DNR
8.EFFECTS
9.SPECIAL
10.EXIT OFF
MANUAL
AUTO
WDR
ATW
ON
RET
3. CAM NAME
- Please position the arrow to point to ’CAM NAME’ by using the
UP or DOWN selection.
- Please select ‘ON’ by using the LEFT and RIGHT selection.
Please press the button to complete ‘ON’.
Note
If ‘OFF’ is selected, the CAM NAME does not appear on the
monitor even if it has been input.
- Up to 15 letters are offered for the CAM NAME. If you enter a
title, the title will appear on the monitor.
Please move the cursor to the letter to choose by using the
UP and DOWN selections.
Set an ID from A~Z /a~z /0~9 by using the UP, DOWN, LEFT
and RIGHT Selections.
Lock in the letters by using the button.
• When the letter is locked in, the cursor moves to the next space.
Please repeat the above to input CAM NAME.
Note
When a wrong name has been input,
- If you press the button after moving the cursor to CLR, all
letters will be erased.
- If you want to correct a letter, please move the cursor to the
arrow at the bottom left of the screen and press the button.
- When a name has been chosen, please select a position for the name to display.
- Please position the cursor on the letter you wish to correct, and then move the cursor
onto the letter you wish to choose and press the button.
