V HOW IT WORKS

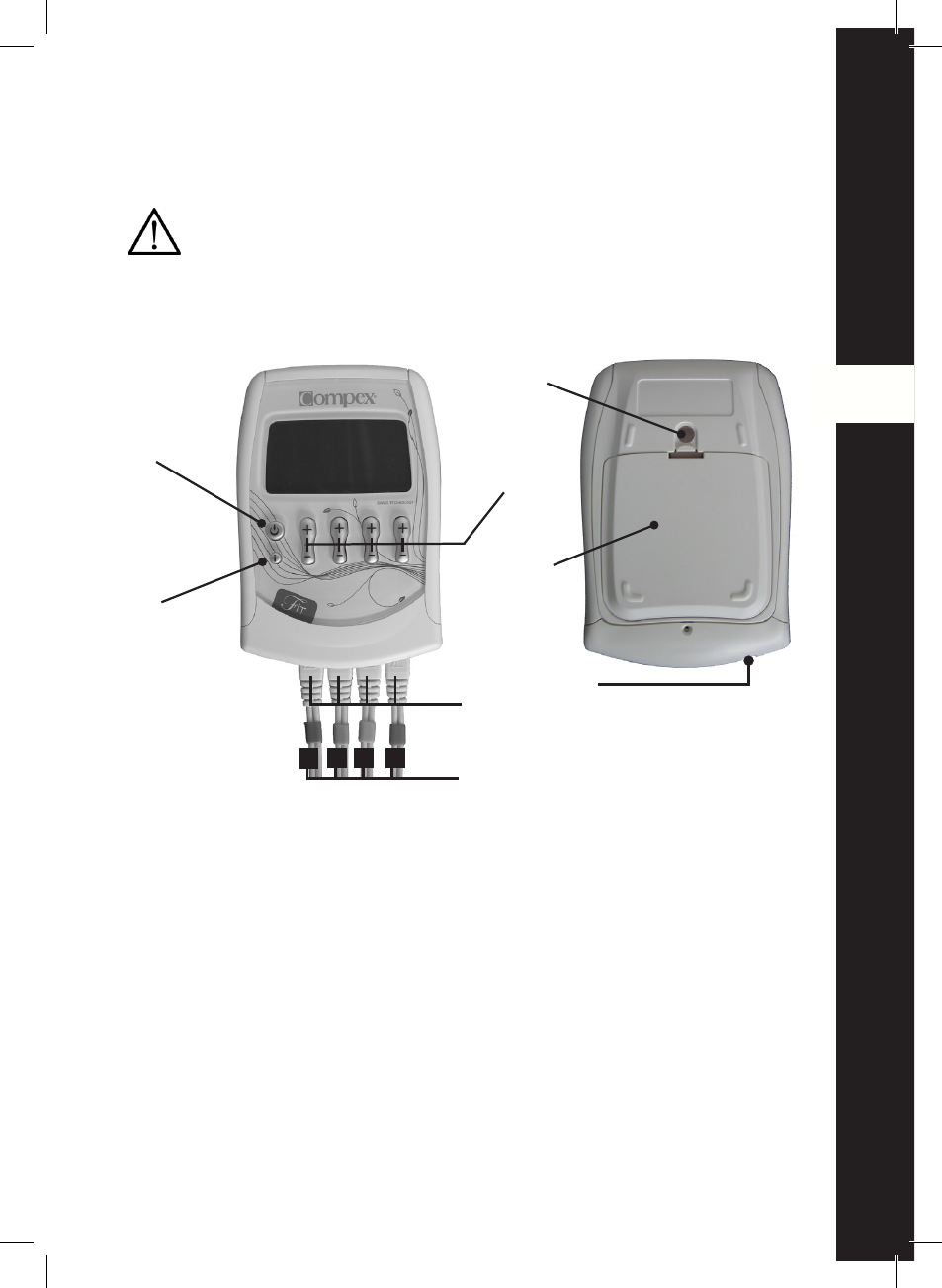

Description of the device
A
On/Off button
B
"i" button used for:
• Immediate access to information displays (illustrations of electrode
placement or explanations of the programs)
• Increasing stimulation energies in several channels simultaneously
C
Sockets for the 4 stimulation cables
D
Stimulation cables
Channel 1 = blue
Channel 2 = green
Channel 3 = yellow
Channel 4 = red
E
+/- buttons for the 4 stimulation channels
F
Socket for the charger (Slide the red cover to the right to free the charger
connector)
G
Battery compartment
H
Belt clip socket
A
B
E
C
D
1 2 3
4
H
G
F
You are strongly advised to read carefully the contraindications and safety
measures described at the start of this manual in Chapter 1 prior to using
your stimulator.
