BUCHI Hydrolysis Unit B-411 - Manual (Page 14)

4 Description of function
14 B-411/E-416 Operation Manual, Version E
4 .2 Description of the operating elements
1
2
3
a Main/safety switch
b Energy regulator
c Heating indicator lamp

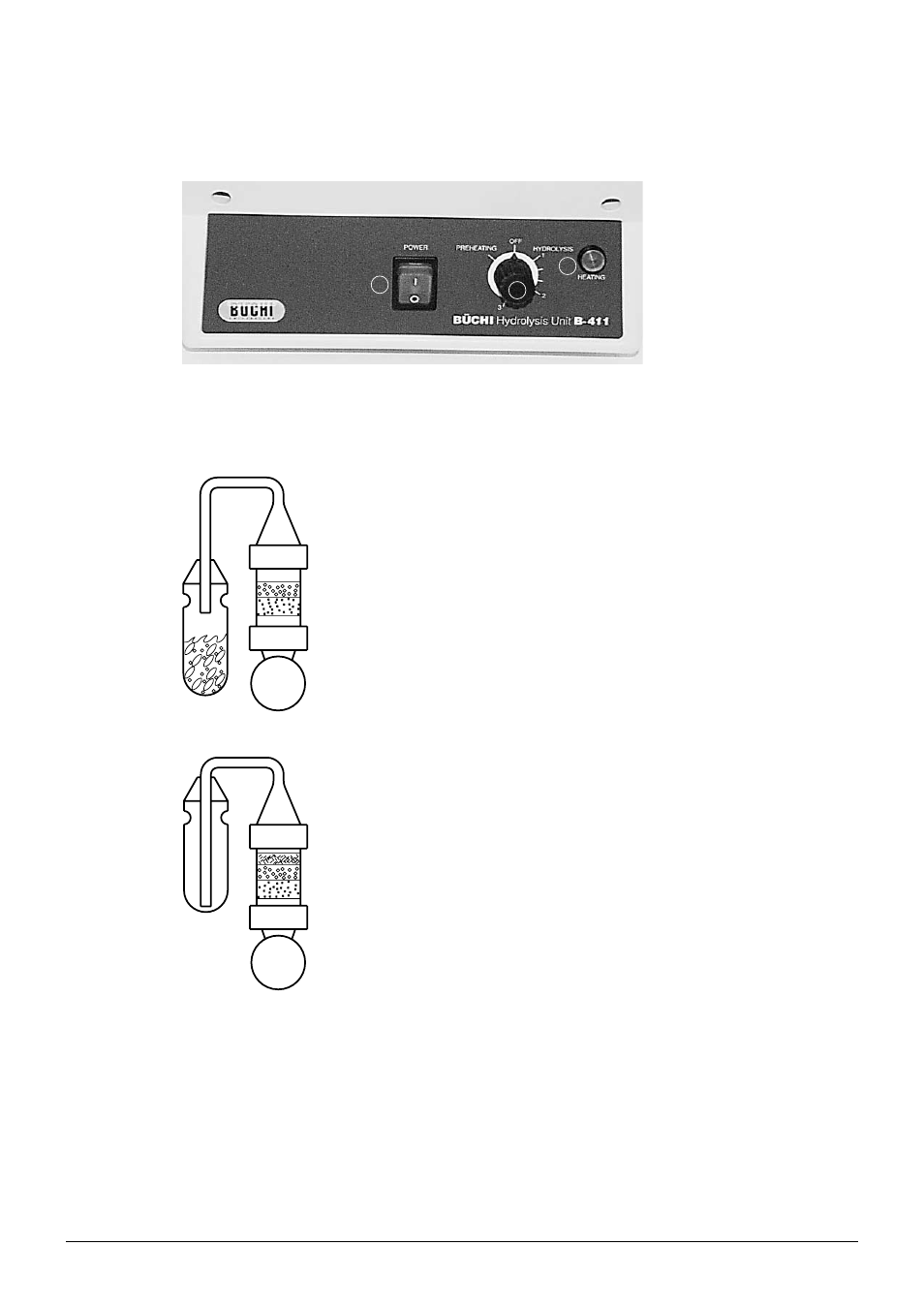

Fig. 4.2: Operation panel B-411
4 .3 Principle of hydrolysis
The sample is boiled in diluted hydrochloric acid to break down
proteins and high-molecular carbohydrates into acid-soluble con-
stituents.
Fig. 4.3: Boil position
Afterwards the sample is filtered over a prepared glass sample tube
and dried. The celite distributes the hydrolysate evenly in the tube,
prevents clumping and facilitates the extraction to be carried out.
The fat can now be extracted with an appropriate solvent.
Fig. 4.4: Filter position
