6 Operation

18

C-660 Operation Manual, Version F

6

Operation

This chapter explains the operating elements and possible operating modes. It gives instructions on
how to operate the Fraction collector properly and safely.

ATTENTION
Check the glassware for damages prior to each operation and use only glassware in perfect condi-
tion. Glassware with cracks, stars or other damages can fail during operation.

Make sure that all fittings and tubings are hand-tight.

6 .1

Control elements

1

2

3

4

5

a

START/NEXT button

b STOP/PAUSE button
c Display
d Selector switch (turn and press knob)
e ON/OFF (Power switch)

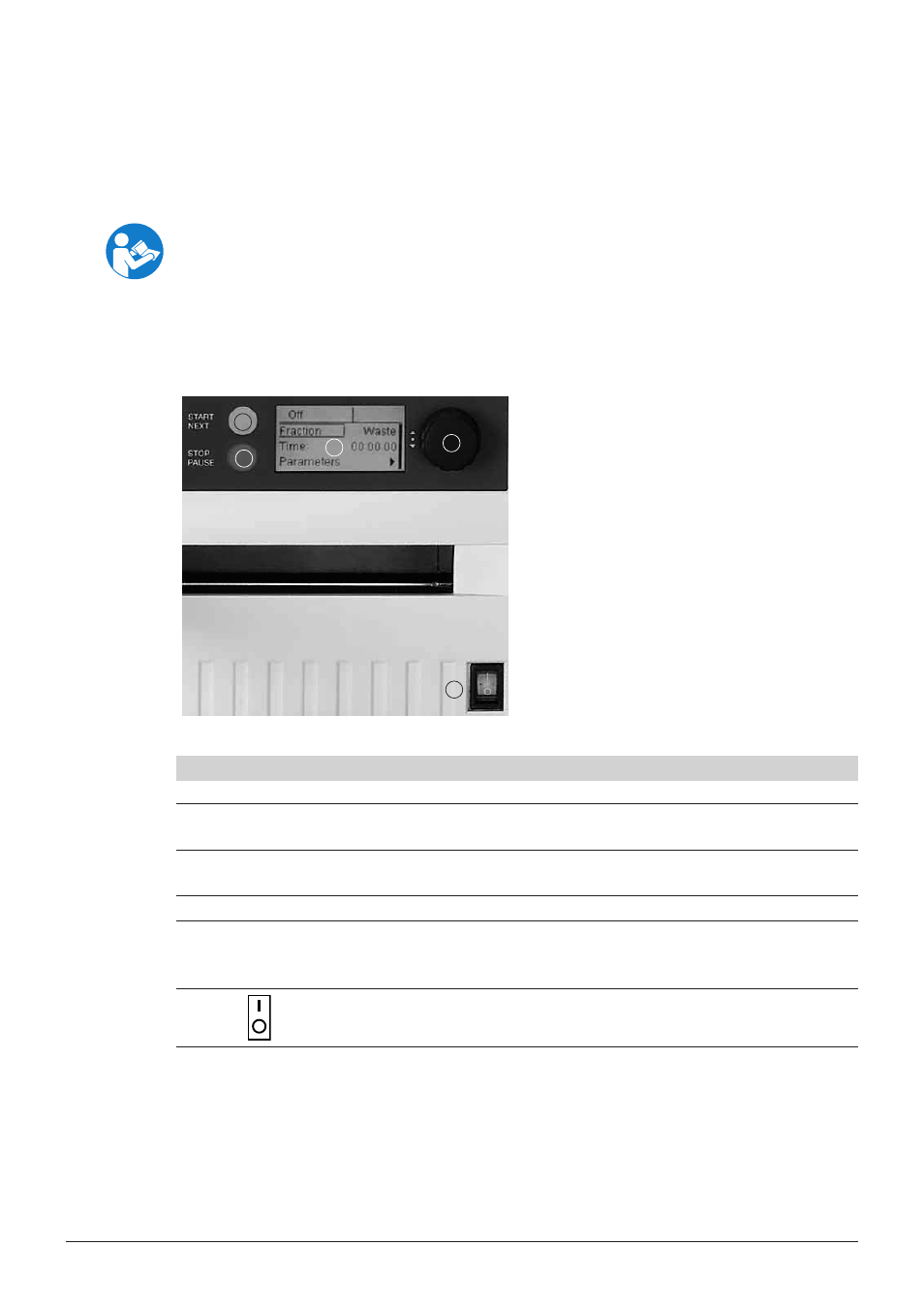

Fig. 6.1: Control elements of the fraction collector

Table 6-1: Functions of the Main Menu

Control

Function

START/NEXT button
(green)

Starts the fraction collector from the rest or pause status. Simultaneously starts the
connected pump system. Carries out a tube change when the instrument is running.

STOP/PAUSE button
(red)

Pressing once results in pause, pressing twice stops the program.

Display

Displays parameters and values.

Selector switch
(turn and press
knob)

Menu operation by turning and pressing.

ON

OFF

Power ON/OFF switch
