6 Operation
17 F-125 Manual, Version B
6 Operation
This section gives examples of typical instrument applications and instructions on how to operate the
instrument properly and safely. See also section 2.5 “Product safety” for general warnings.
6 .1 Operating controls and housing

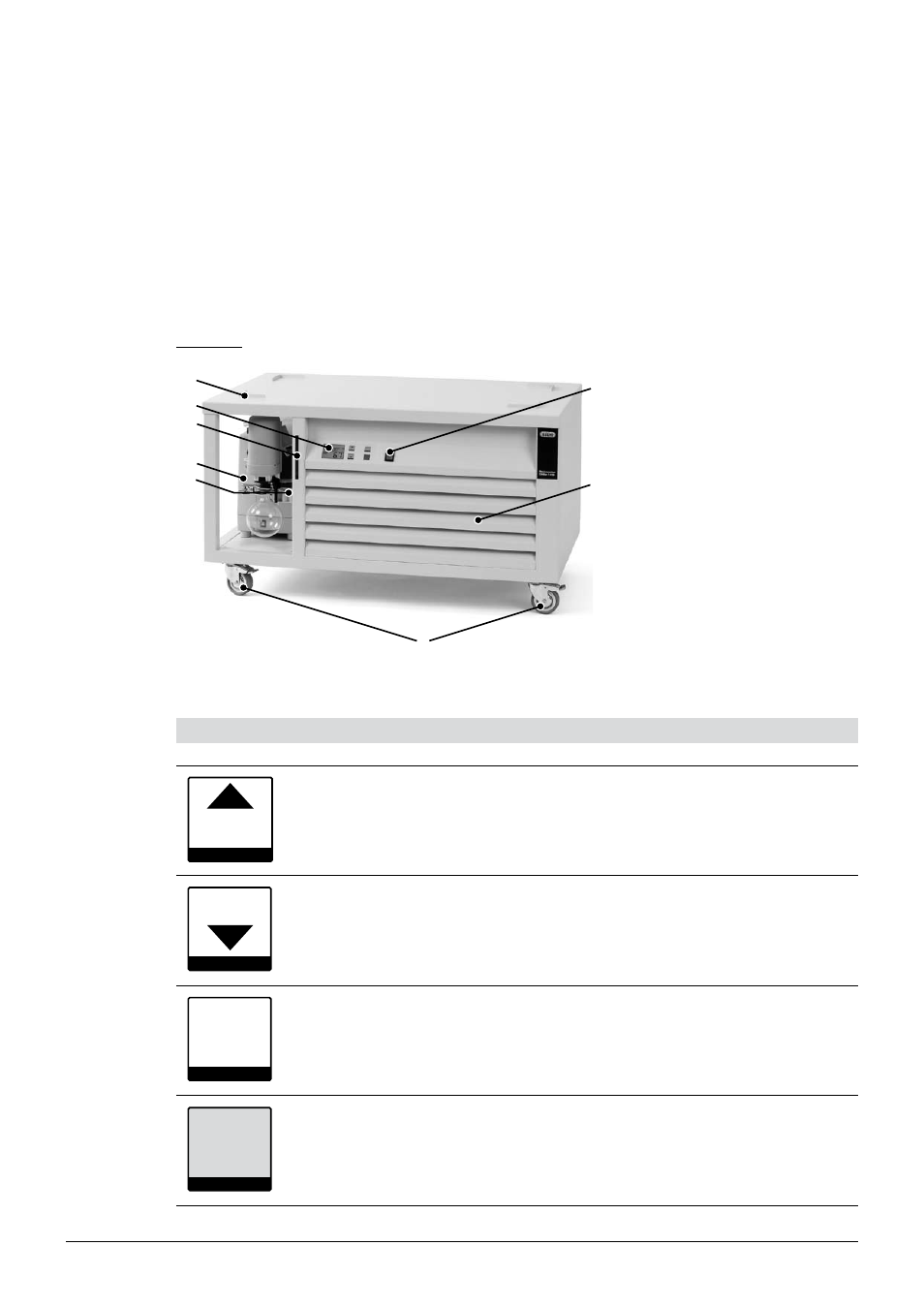

Front side
7
6
1
3
5
2
4
8
1 Holder for secondary condenser to
access it from the front side
2 Empty space to install vacuum
pump V-710 (pump not included in
delivery)
3 Cooling media level indicator
4 Operating panel with various
parameters displayed
5 Guidance for Rotavapor ® to install it
in the right position
6 On-/Off switch (lights green when
instrument is switched on)
7 Cooling lamella for air flow in
8 Wheels (lockable)
Buttons (not for F-100)
Button Functionality
UP
Increase the desired set temperature in steps of 0.1 °C.
DOWN
Decrease the desired set temperature in steps of 0.1 °C.
START
Button to start or continue the cooling regulation.
STOP
Button to stop the cooling regulation.
