Rotavapor R-250 4 Putting into Operation
4.6 Installation of the Receiving Glass Assembly
All glassware used must be intact, with no signs of cracks,
spreading impact marks, or other damage. Inspect the glass-
ware visually before installing it.
Single receiver
s ቢ into the connecting fitting
ባ.
s ቤ to the flask ብ using a DN 25
EasyClamp connection.
s ቦ to the flask ብ.
s ቧ and tighten it firmly.
Interchangeable receiver
s ቢ into the connecting fitting
ባ.
s ቤ to the flask ብ using a DN 25
EasyClamp connection.
s
ቦ to the flask ብ and insert
the branching piece ቧ. Connect using four EasyClamp
connections.
s ቨ and tighten it firmly.

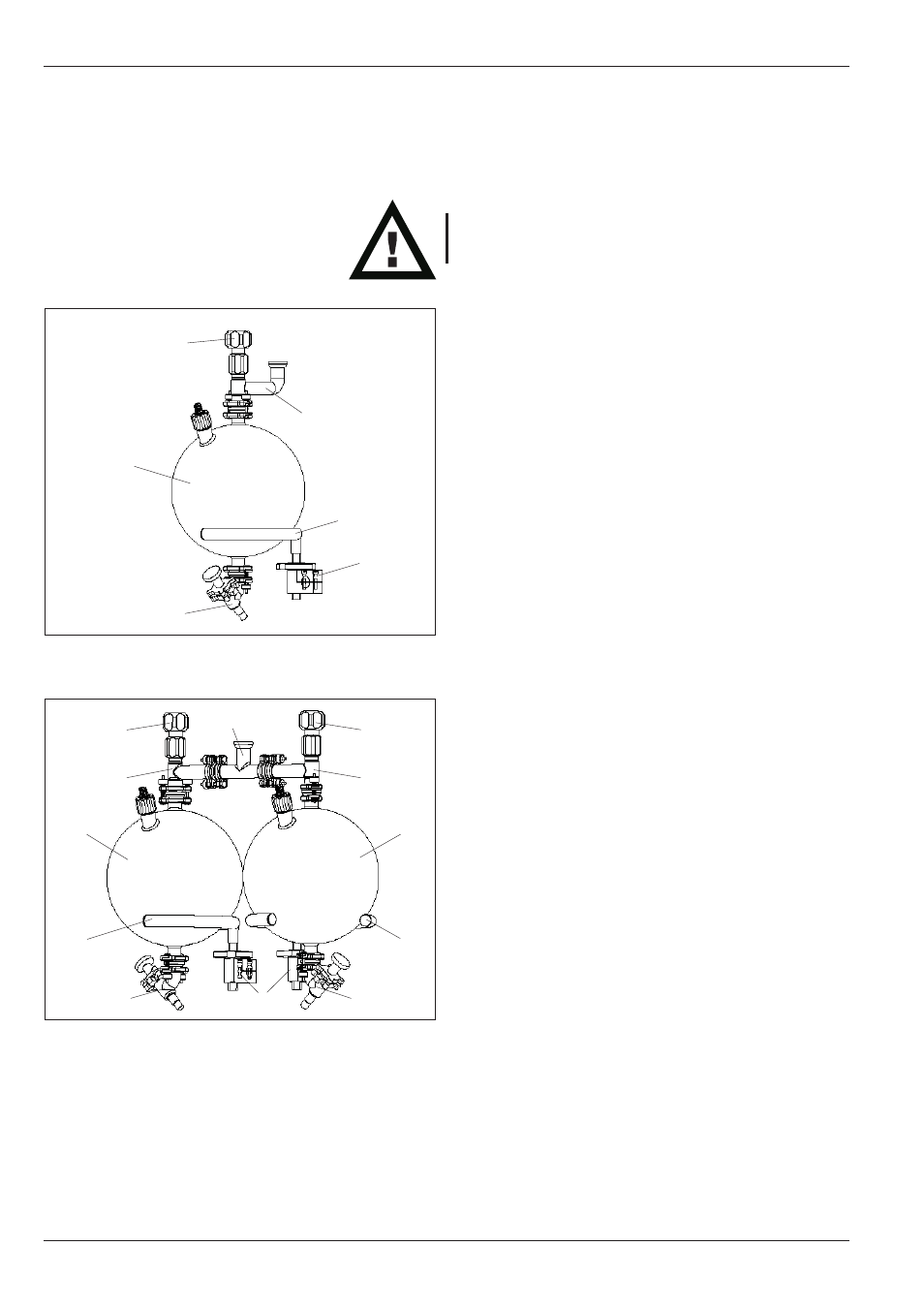

Fig. 4.4: Single receiver
Fig. 4.5: Interchangeable receiver
