11
Rotavapor R-250 4 Putting into Operation
4.5 Attachement and Removal of the
EasyClamp
Connection
Attachment of the EasyClamp
s
the top and bottom segments together, closing them at
their open connection point.
s
tighten the knurled nuts slightly.
s
Note:
Always tighten the knurled nuts by hand and not to the block
(with the spring pressed together completely). Otherwise the
prestressing will be lost.
There must always be a gap of about 2 mm between the
knurled nut and the support surface.
Removal of the EasyClamp
On all EasyClamp connections, only the bolt without
a spacer spring has to be removed in order to open the
con nection.
s
springs have been relieved. Do not, however, screw the
nut all the way off.
s
knurled nut far enough (without removing it completely)
so that the bolt can be tilted out and removed as a unit.
s
top and bottom segments apart and carefully remove the
EasyClamp.

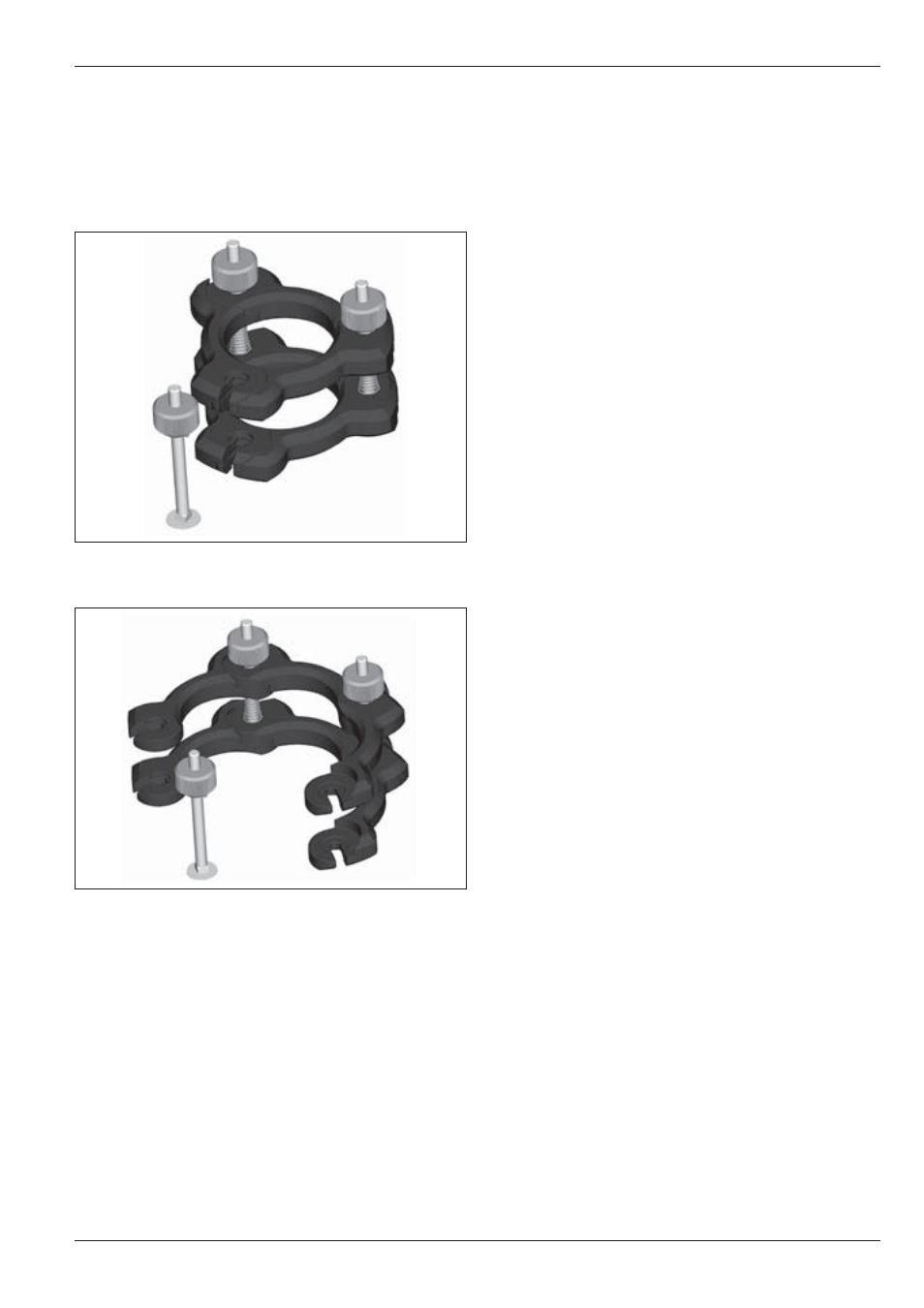

Fig. 4.2: Attachment of the EasyClamp
Fig. 4.3: Removal of the EasyClamp
