BUCHI Glass Oven B-585 Kugelrohr - Manual (Page 21)

19
Glass Oven B-585
5.4 Operation of the B-585 Kugelrohr
Please ensure that the device has been correctly put into opera-
tion according to Chapter 4, Putting into operation
5.4.1 Operational and display elements
a Unit sockets with main fuses
b Main power switch
c Digital display showing the current temperature
d Multifunction botton for setting the desired oven tem-
perature and the rotation speed
e Pilot display for heating
f Lever used to open the iris diaphragm
g Glass ball cooling apparatus
h Glass cook for aeration
i Drive unit for rotating the glass ball
j Lever for setting the angle of the oven
k Holder for the save contact of the furnace
l Lever for adjusting the vapour duct
m Start
n Stop
5.4.2 Kugelrohr / Distillation
The glass oven can be used for two types of distillation: single
distillation and fractional distillation. The fractional distillation
is a bulb to bulb distillation that uses three of four bulbs and
bulb cooling. The single distillation may be done either as a
bulb to bulb distillation using two bulbs and bulb cooling, or
with a condenser with a cooling coil and a collection flask,
In this latter application, the glass oven may be viewed as a
small rotary evaporator. Common to all three types of distil-
lation is the fact that they all work using the bulb-tube drive.
Bulb to bulb distillation uses a tube that consists of as many
bulbs as there are components in the mixture.
5 Operation

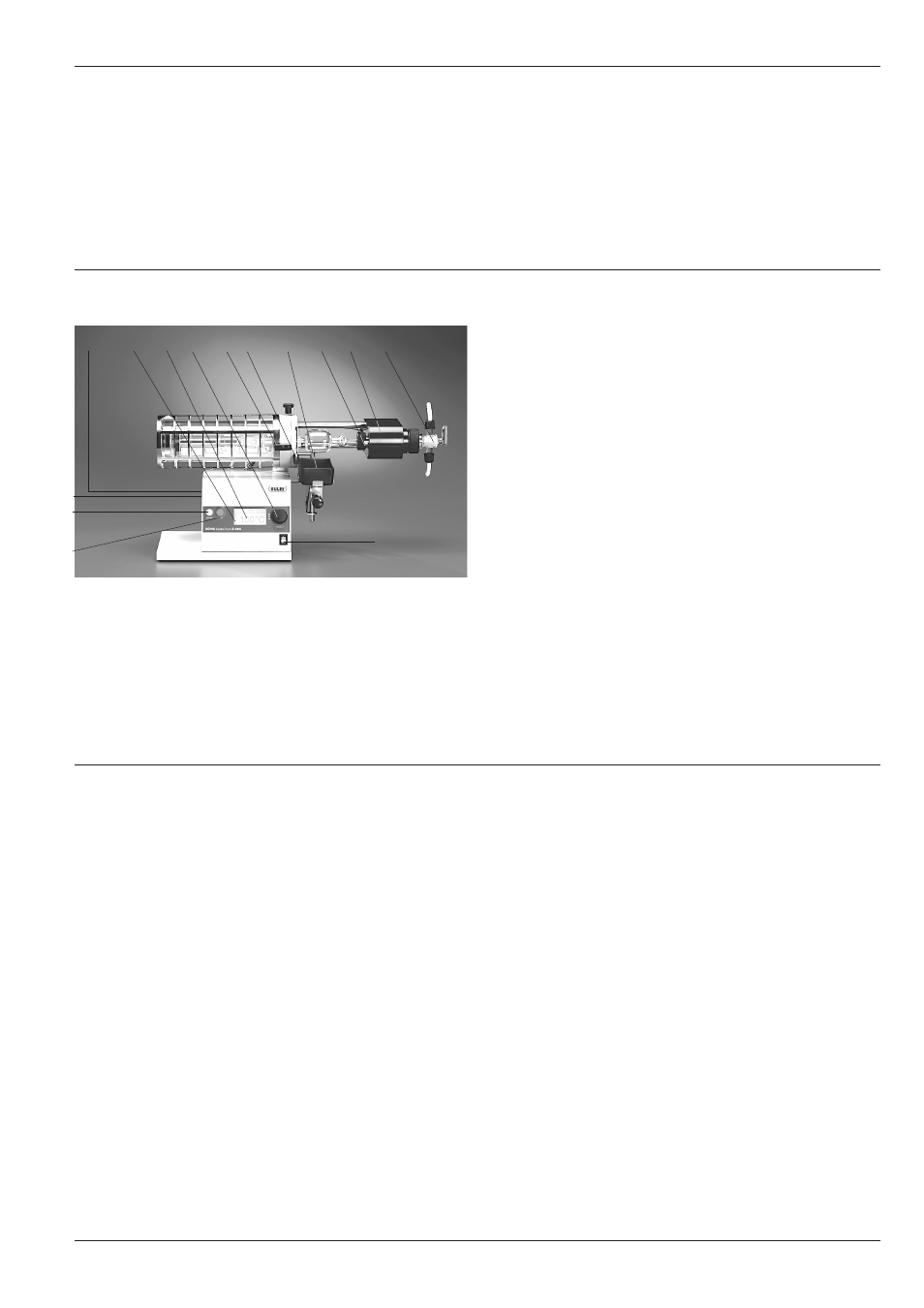

Fig. 17: B-585 Kugelrohr
b
c e d k f g i l
j
h
m
a
n
