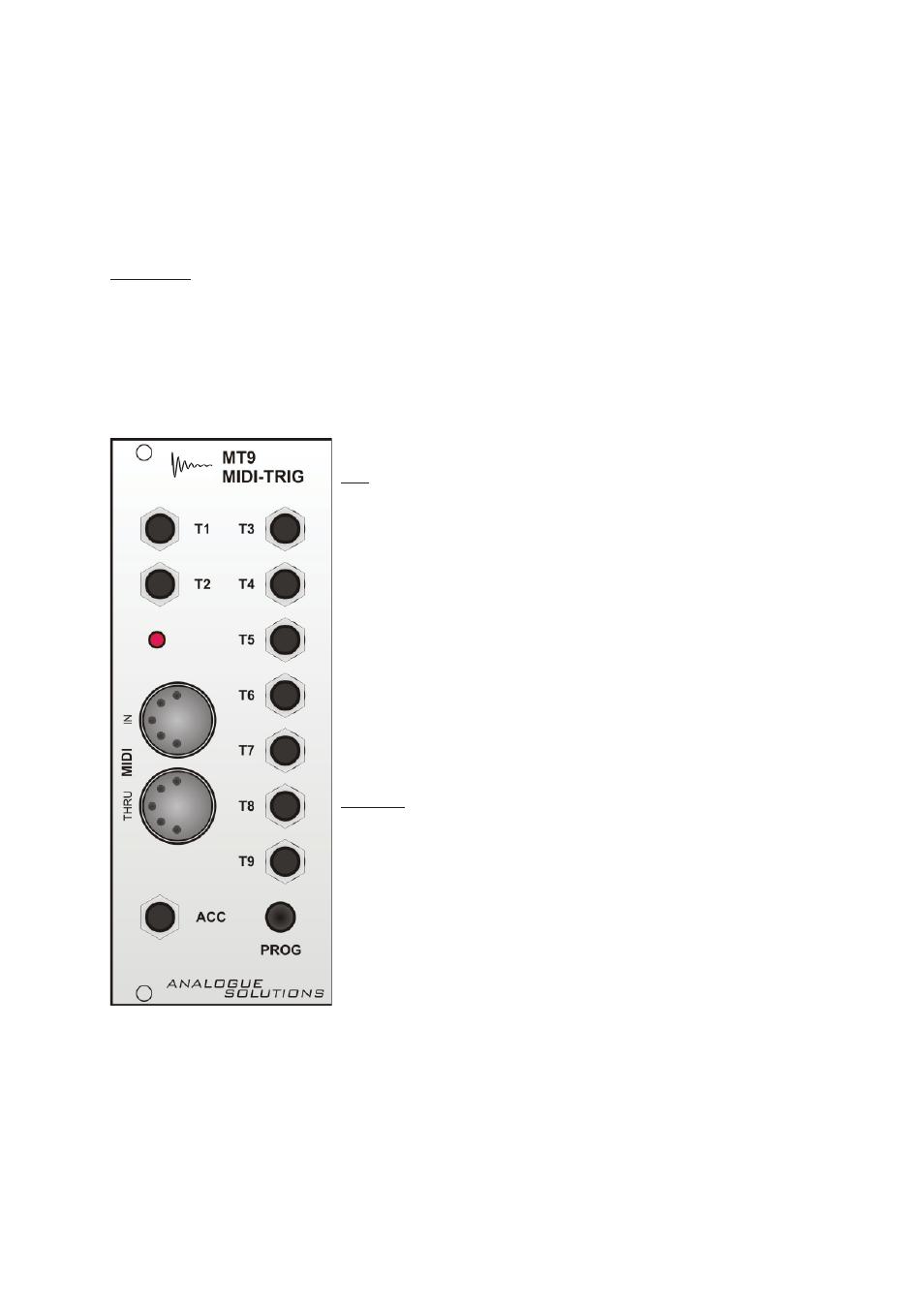

MT9 MIDI to Trigger / Gate converter
Inputs: Outputs: Power supply:
MIDI In 9 independent trigger outs +5V, GND
1 Accnet out
MIDI Thru.
Controls: Indicators: Size:
Program button 1 Actuiviry LED 10HP
Introduction
The MT9 is a MIDI to triggering module. It allows triggering of a range of analogue devices; drum voice modules,
envelope modules, analogue sequencers, analogue drum ma chines, and anything else with a gate, trigger or clock
input.
It has 9 separate 5v trigger outputs, so 9 devices can be in de pen dent ly triggered via separate MIDI keys. There is
also an ACCent output.
Use
Connecting
Connect the MIDI sequencer or other MIDI device to the MIDI input of the MT9.
Connect MT9 trigger outputs to de vice you wish to trigger.
Programming
Programming the MT9 is a very simple proceedure.
Press and hold the PROGRAM button. Then press a MIDI key.
The MT9 will set its MIDI receive channel (which will be the same for all
outputs) to the MIDI chan nel the keyboard is transmitting on.
The outputs are pre-assigned, output T1 starting at middle C.
ACCENT
The ACC is an on (5v) / off (0v) output. When velocity of over 80 is
received for any of the 9 triggers, then the Accent will go high (5v). Lower
than 80 the output will go low (0v). Use this output to control other ana-
logue modules.
Note: it is not directly compatible with the drum module ACC inputs. The
naming of this socket is perhaps misleading if you use our drum modules.
The drum modules require a different type of accent signal; 12v on, about
5v off. We may (or may not) make an 'Accent' add-on module.
