ANALOGUE SOLUTIONS
CONCUSSOR e&oe (c) 12-2007 18
Use
The trigger input has a range of about 5 to 12V. A trigger or gate signal of at least 5V will trigger the sound. A larger
trigger pulse will increase the level of the sound (accent the notes). When the accent socket is used, the trigger input
socket only triggers the sound and the level of the sound is controlled by the voltage of the CV at the accent socket.
The accent voltage can be from another trigger pulse generator, or from an LFO or Envelope. When using for example
an LFO, you can have the level changing with the LFO sweep.
The trigger LED will light each time a trigger pulse is received.
Controls
Tune Tunes the sound up or down
Level Sets output level

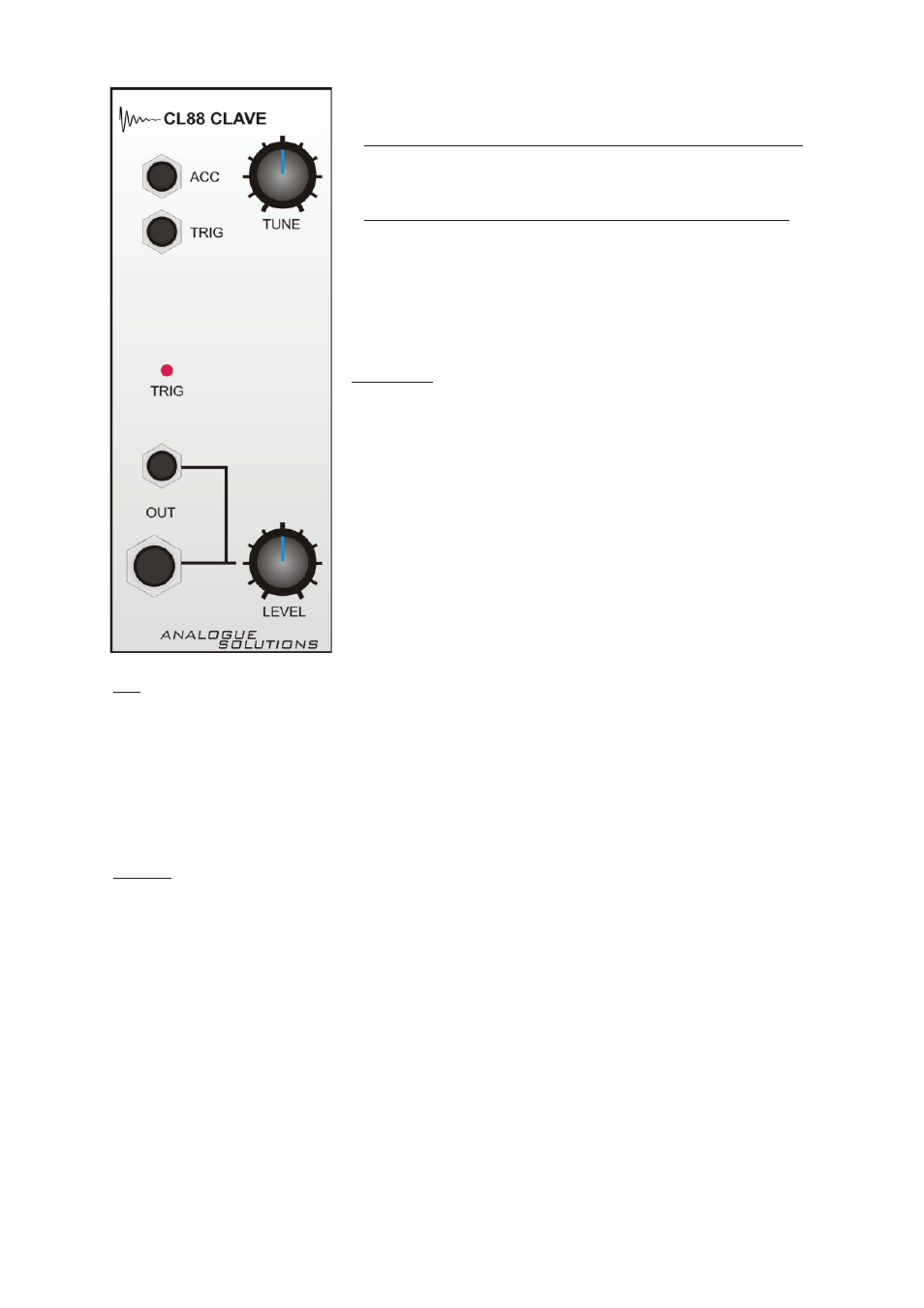

CL88 Claves Module
Inputs: Outputs: Power:
Accent socket 0-12V 3.5mm audio out +/-12V
Trigger socket 5-12V 6.35mm audio out
Controls: Indicators: Size:
Tune Trigger LED 10HP
Level
Introduction
The CL88 is an accurate replica of the TR808 claves sound. The module is en-
tirely discrete analogue circuitry, based as closely as possible on the original.
