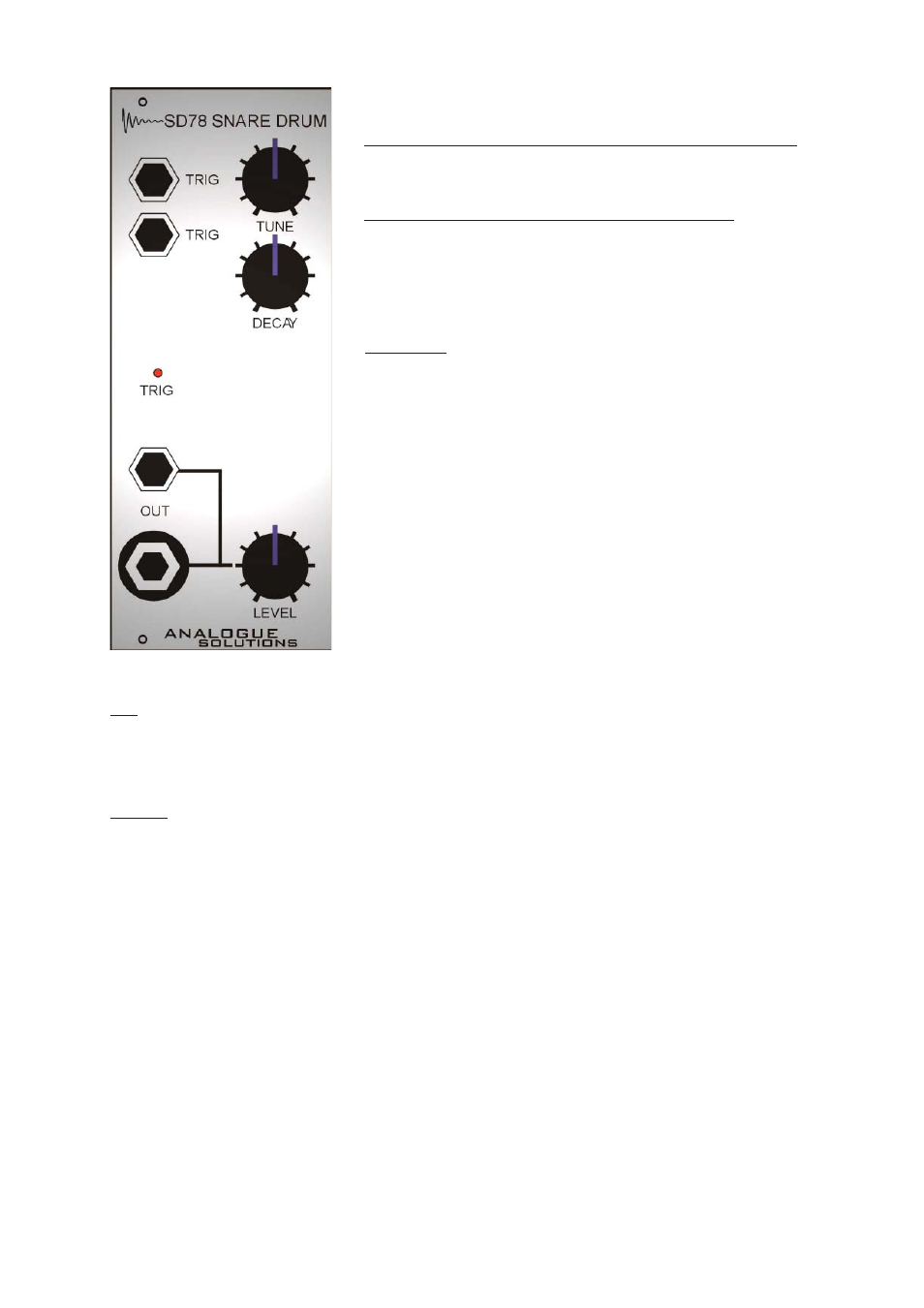

SD78 Snare Drum Module
Inputs: Outputs: Power supply:
Trigger socket 5-12V 3.5mm audio out +/-12V
6.35mm audio out
Controls: Indicators: Size:
Tune Trigger LED 10HP
Snappy
Use
The trigger input has a range of about 5 to 12V. A trigger or gate signal of at least 5V will trigger the sound. A larger
trigger pulse will increase the level of the sound (accent the notes). Note, the SD78 does not have a separate accent
input.
Controls
Tune Changes the tuning of the snare sound.
Snappy Sets the noise level.
Level Sets output level
Introduction
The SD78 is an accurate replica of the CR78 snare drum sound. The
module is entirely discrete analogue circuitry, based as closely as possible
on the original.
