Step 5: Connecting the 2

Tier of LTMB24 loudspeaker

Repeat step 1 and 2 for the 2

tier of speaker (Figure 1)

Step 6:
Lift up the first tier of LTMB24 loudspeakers and place it on
top of the second tier of loudspeakers. Align the frames so
that the top and bottom frame’s center ½” dia. holes match
up.

Step 7: Install LTMB24-ROD-KT (sold separately)
Securely join the top and bottom tier by bolting the frames
together using a ½” threaded rod, flat washers and jam nuts
(LTMB24-ROD-KT sold separately-Two kit required).
Insert the threaded rod from the hole of the top frame and
into the bottom frame. Use the center holes on the outer
ends of the frame and use the four corner holes on the
center of the frame. Apply lock-tite liquid solution on the
nuts then secure both ends of the threaded rods with flat
washer and two jam nuts (two jam nuts per end). Tighten
nuts permanently until frame and loudspeakers are tightly
secured (Figure 3 and 4).

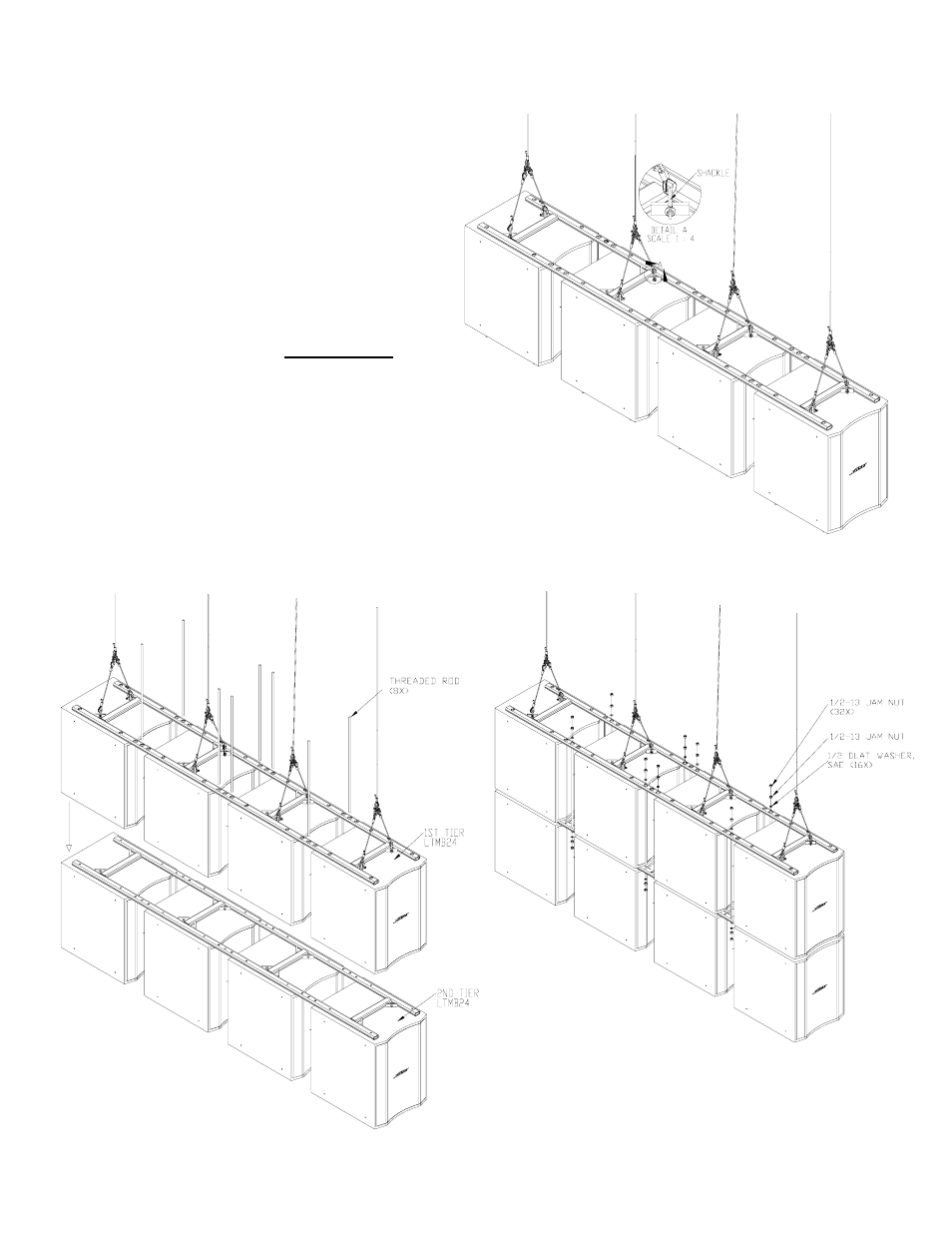

Figure 3
