• VGA, SVGA, or XGA monitors
• DOS, Windows (3X, 9X, 2000, NT4, ME, XP), LINUX, UNIX, HP UX, QNX, SGI, FreeBSD,
BeOS, Open VMS, Novell 3.12-6
6. The CAT5 KVM system configuration

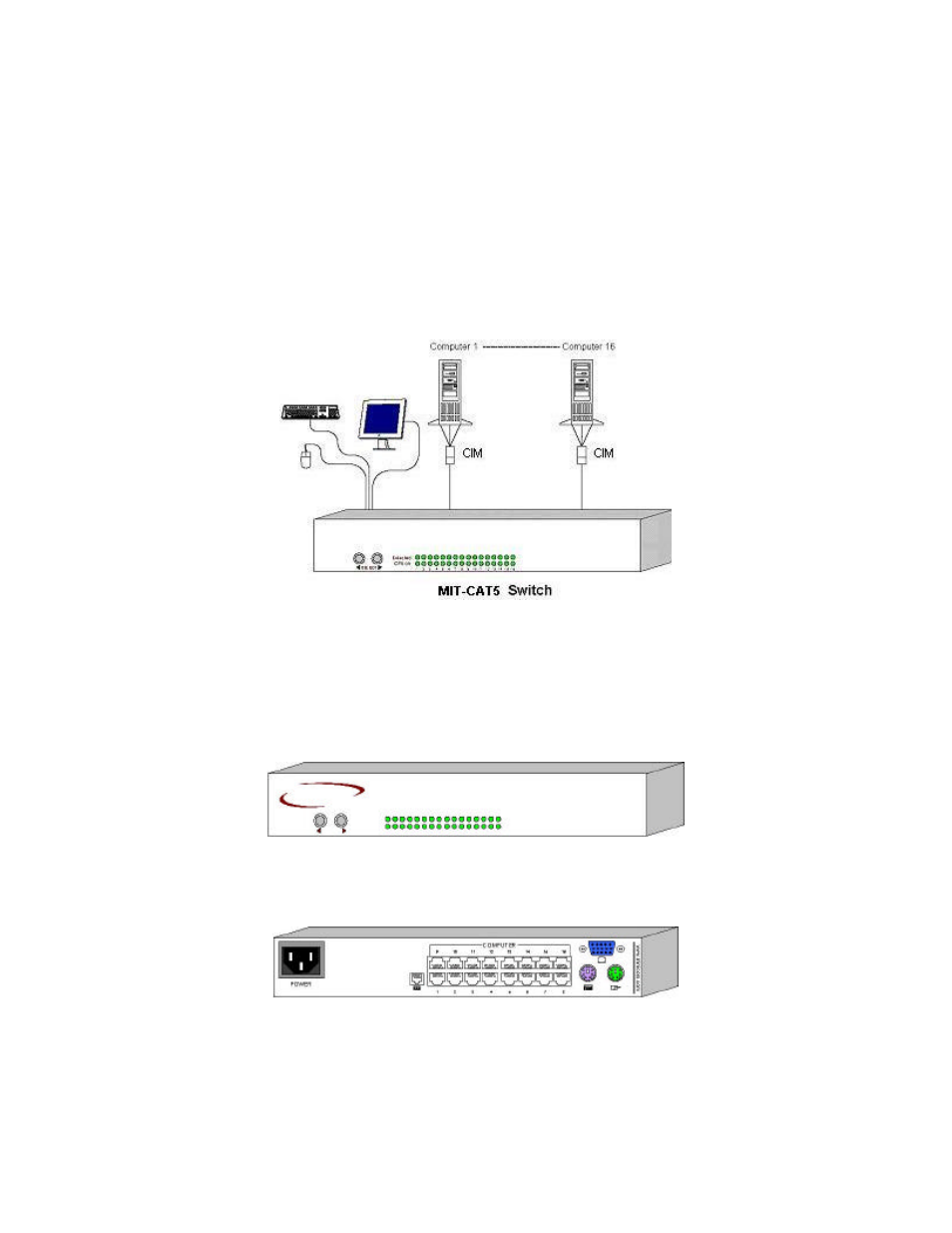

Figure 1 illustrates the basic configuration of the CAT5 KVM system.
Figure 1 The CAT5 KVM system configuration
7. The CAT5 KVM models
Figure 2 illustrates the front panel of the CAT5 KVM 16 port model. The 8 port model is the same
but with only 8 rows of LEDs.
Figure 2 CAT5 KVM front panel
The figure below illustrates the rear panel of the CAT5 KVM 16 port unit. The 8 port model is the
same but with only 8 Computer ports.
Figure 3 CAT5 KVM 16 port rear panel
8. Pre-installation guidelines
• Switch off all computers
