Configuring the C-Series Controller
975-0004-01-02 Rev D 21
Automatic/Manual Battery Equalization (EQ) and Low Voltage
Reconnect (LVR) Jumper
Depending on the mode of operation chosen, this jumper
enables:
• automatic or manual battery equalization
(Charge Control mode), or
• automatic or manual reconnect in the event of low
voltage event (Load Control mode).
When A UTO is enabled in the Charge Control mode, the unit
will perform an equalization charge every 30 days. This can
be done manually by using Reset Switch on the side of the
controller chassis.
When A UTO is enabled in Load Control mode, the unit will
reconnect automatically when voltage at the B ATTERY
P OSITIVE terminal exceeds the LVR setting. This can also be
done manually by using Reset Switch on the side of the
controller chassis.
The factory default setting is M ANUAL E QUALIZATION
(Charge Control mode).
Place the jumper over the pins for the desired selection.
See “Error Mode Indication (Orange)” on page 59 for
instructions on how to use the Reset Switch in relation to this
function.

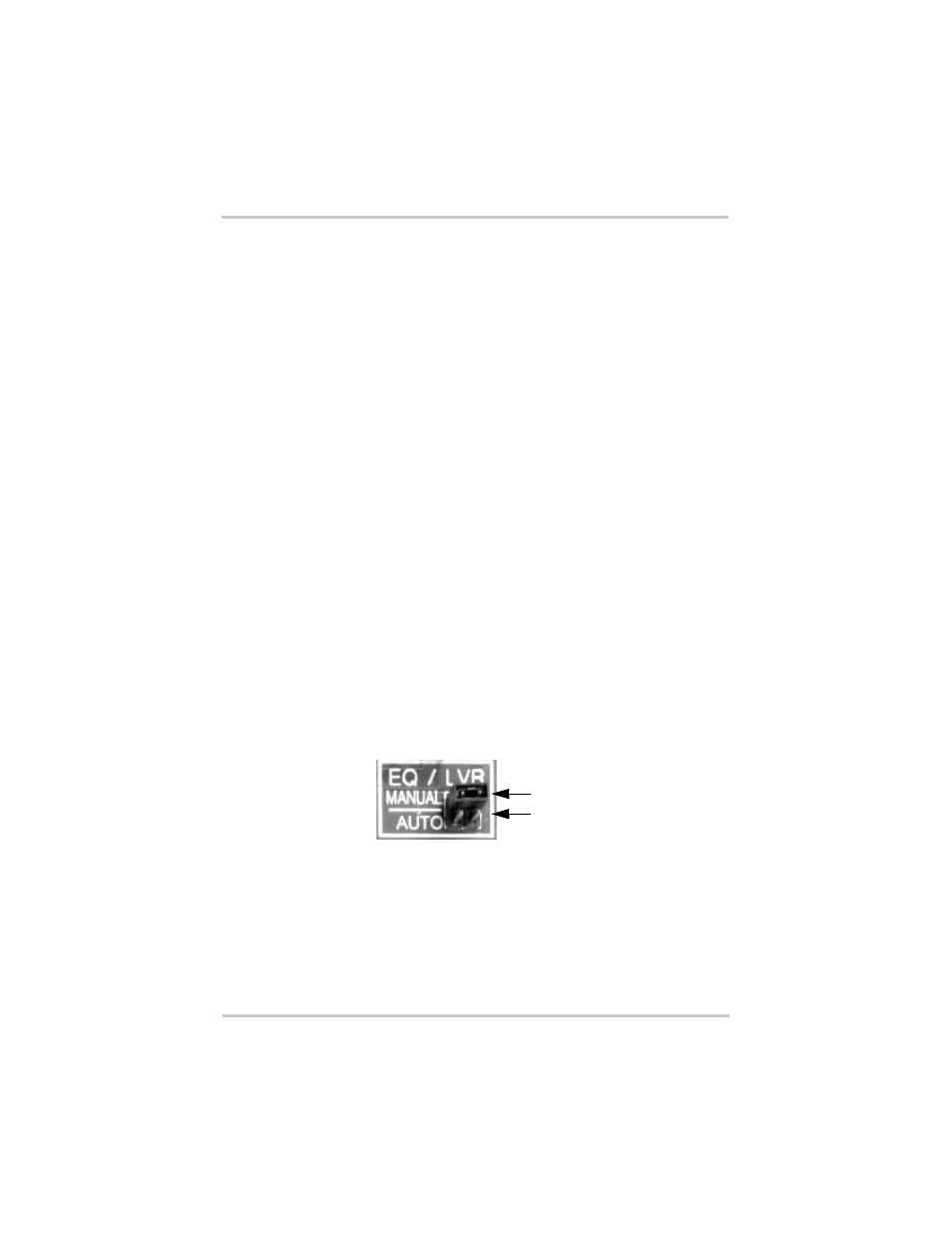

Figure 2-8 EQ/LVR Jumper and Reset Switch
EQ/LVR Jumper
MANUAL
AUTO
