WWW.STIEBEL-ELTRON-USA.COM

SOL 25 PLUS |

55

EN

g

L

IS

h

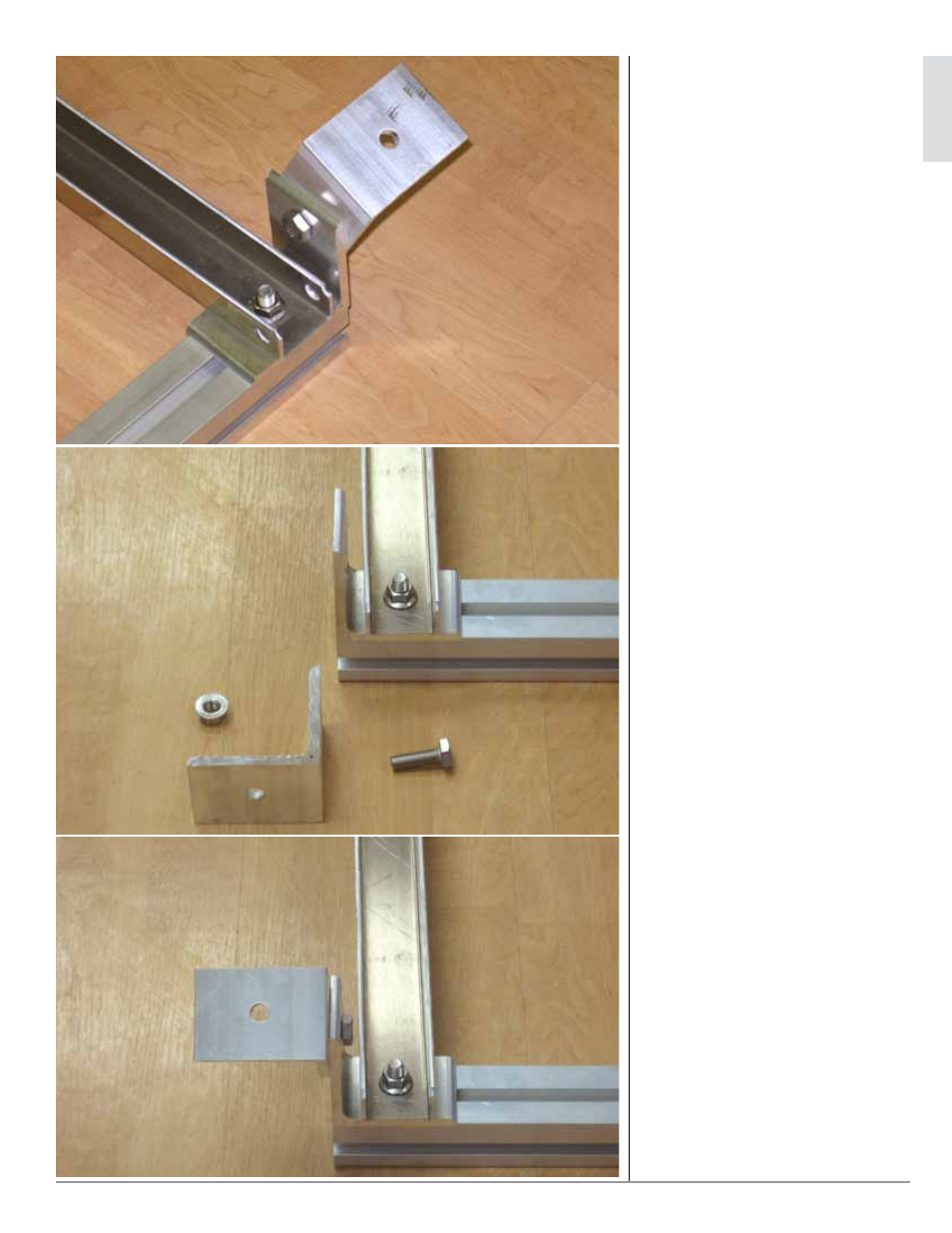

Step 24: Install an M10 x 30 bolt and an
M10 serrated flange nut.

Step 25: Prepare to install the front right ‘L’
bracket. Note that the side of the ‘L’ bracket
with the hole closer to the edge is aligned
parallel to the support rails.

Step 26: Install an M10 x 30 bolt and an
M10 serrated flange nut.
