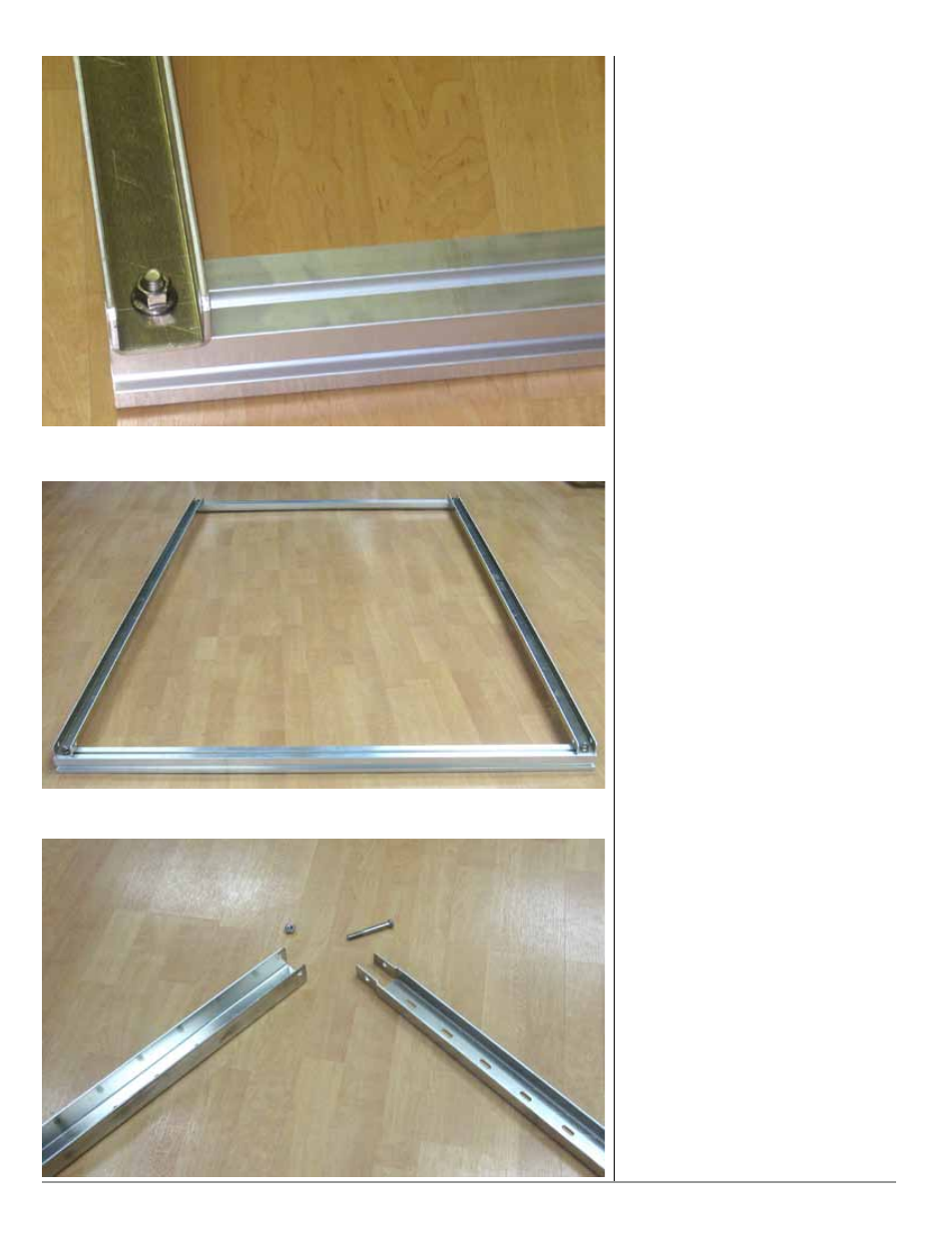

Step 11: Install M10 nut. Repeat the
preceding 4 steps for the bottom left corner
of the rectangle.
Step 12: Resulting assembly to which the
remaining components will be attached to
form a 60° mounting system.
Step 13: Align the base support and the
riser support in the manner shown. Note
that the end of the riser which is attached in
this step is the end without the cutout.
