SOM 9s

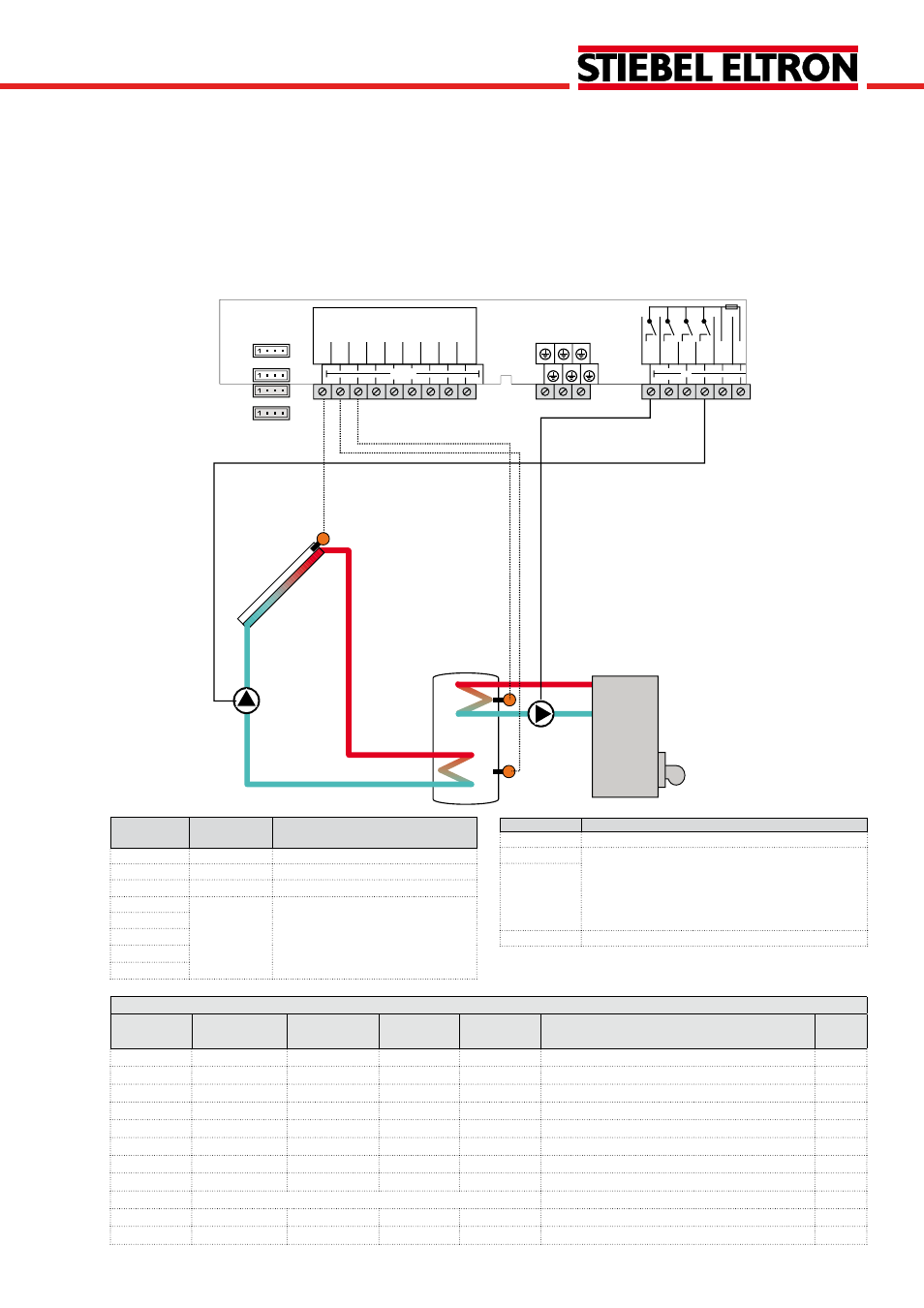

System 3
Solar system with 1 tank and backup heating
The controller calculates the temperature difference bet-
ween collector sensor S1 and tank sensor S2. If the diffe-
rence is larger than or identical to the adjusted switch-on
temperature difference, the pump (R1) will be switched on
and the tank will be loaded until the switch-off temperature
difference or the maximum tank temperature is reached.
Domestic hot water backup heating (R4) can be carried out
with a thermostat function (S3). If the value at S3 reaches
the switch-on temperature for the backup heating, the relay
is energized. If the value exceeds the switch-off temperature
for the backup heating, the relay is switched off again.
Sensor/Ter-
minal
Designation
Description
S1
TCOL
Temperature collector
S2
TSTB
Temperature tank bottom
S3
TSTT
Temperature tank top
S4
Optional sensor for measurement
purposes or options
S5
VFS
RPS
V40
Relay
Description
R1
Solar pump
R2
optional:
Thermal disinfection
Booster pump
Parallel relay
Heat dump
R3
R4
Backup heating/tank loading pump
Adjustment channels
Channel
Sub channel 1
Sub channel 2
Factory
setting
Change to
Description
Page
ARR
1
3
System
78
LOAD >
Loading
DT O
12 °R
Switch-on temperature difference
78
DT F
8 °R
Switch-off temperature difference
78
DT S
20 °R
Set temperature difference
78
RIS
4 °R
Rise
78
S MAX
140 °F
Tank maximum limitation
79
SMAXS
2
Sensor tank max
79
COL >
Collector
CEM
270 °F
Collector emergency temperature
80
OCCO**
OFF
Option collector cooling
80
R4
R1
S3
S2
S1
Temp. Sensor
Pt1000
L
R3
R2
R1
GND
S1
S2
S3
S4
S5
VBus
PW
M
1
PW
M
2
N
R4
V4
0
L'
VFS
RPS
out
in
