INSTALLATION INSTRUCTIONS
VERTICAL TILT RACKS - 45 SIDE-BY-SIDE ORIENTATION
order to keep the clips from rotating due to the torque of a
ratchet or wrench.
2.2 Mounting on a raised-seam roof
This section is to aid in the mounting of the rail assembly
onto a raised-seam roof using an S5U clip and L-102
L-Bracket.
Part:
# of Collectors in Array:
1
2
3
4
# of Parts Required:
S5U clip
4
4
6
8
L-102 L-Bracket
4
4
6
8

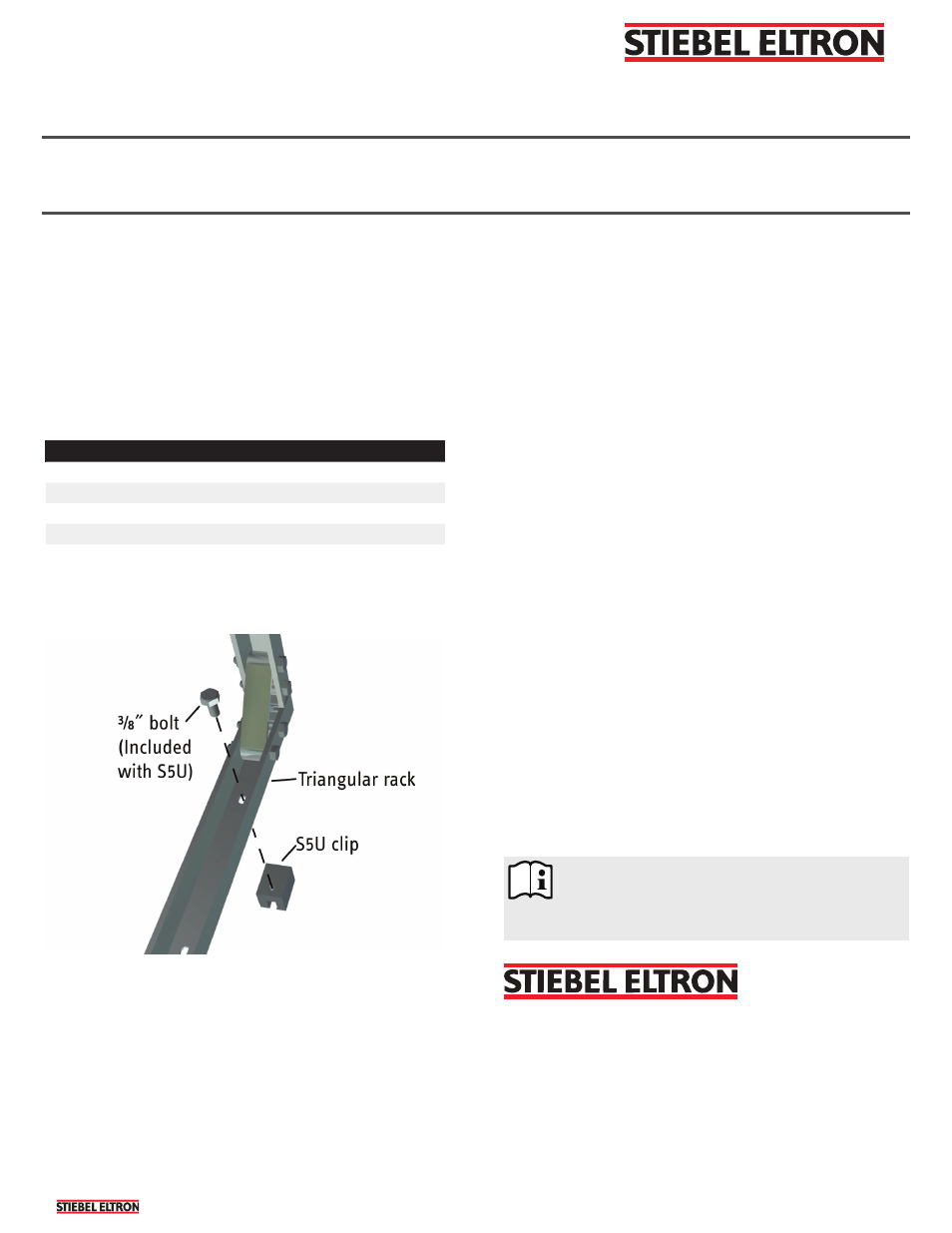

1. Assemble the S5U clip and triangular racks using the
included fasteners.
2. Clip the S5U assembly to the roof ridges.
Note: For information regarding the installation of S5U clips
and L-Brackets, consult the Stiebel Eltron Raised-seam
Roof Installation Guide.
3. Follow the same procedures for the remaining assembly
as shown in steps 3-14 in Section 2.1.
