INSTALLATION INSTRUCTIONS

VERTICAL TILT RACKS - 45 SIDE-BY-SIDE ORIENTATION

Note: For information regarding the installation of SQ-
bracket ﬂ ashing kits consult the Stiebel Eltron Flashing Kit
Installation Guide.

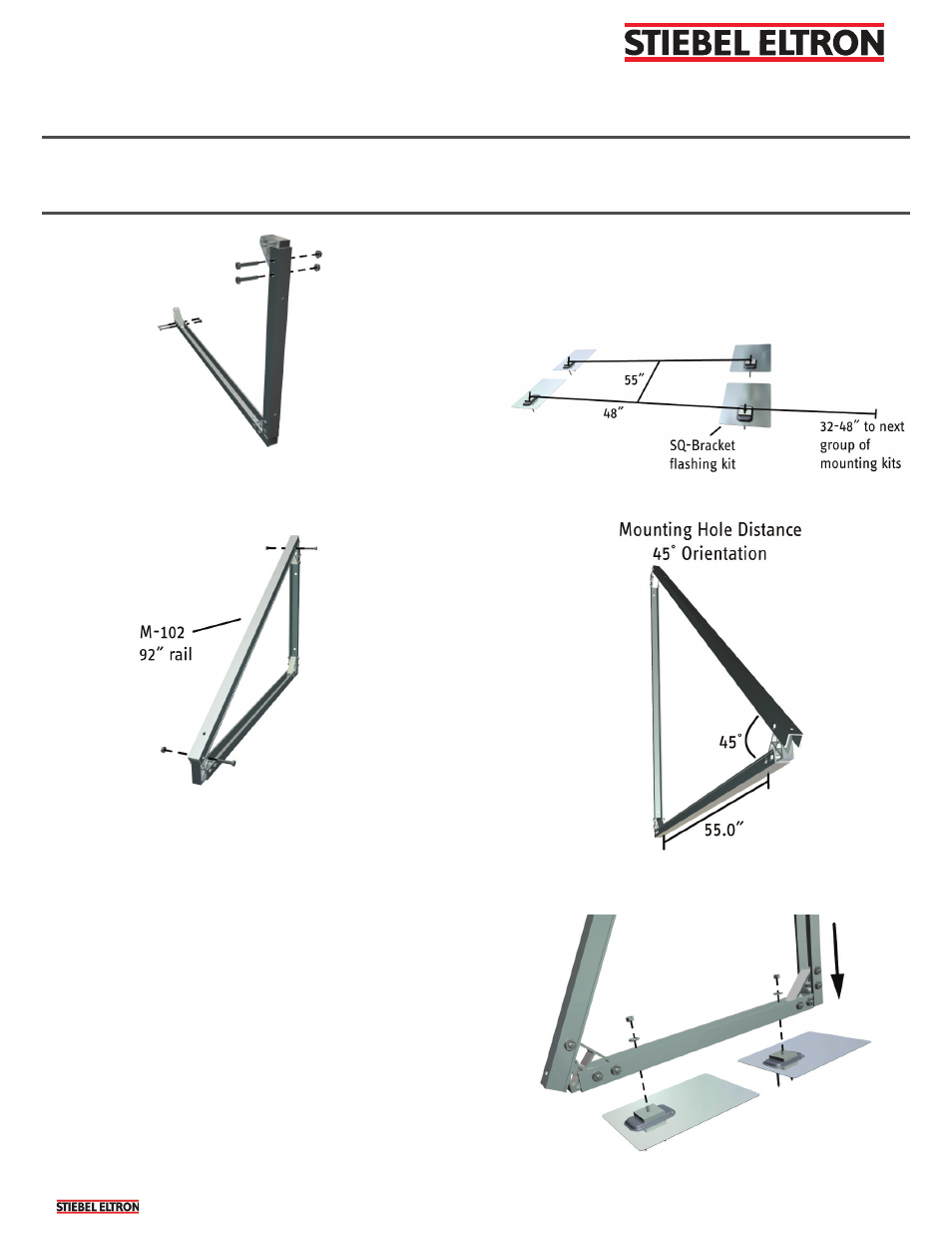

2. Fasten the racks to the ﬂ ashing kits as shown below.

6. Complete the rack assembly by attaching t he remaining,
M-102 92˝ rail and fastening it with two M10 nuts & bolts.

7. Repeat this process for all remaining racks.

2 Mounting

2.1 Mounting on an asphalt roof

1. The assembly is ready to be attached to the mounting
hardware. Identify the location on the roof that the
mounting kit will be installed. A proper site assessment
should have been performed to determine the ideal location
of the solar collectors. The following image shows the space
neccessary for the varying numbers of collectors & racks to
be installed. Pictured are are the SQ-bracket ﬂ ashing kits
that will fasten to the vertical tilt racks. The distances listed
refer to the distance between the vertical mounting peg on
the ﬂ ashing kit. Depending on which angle the collectors
will be mounted, the distances will vary.
