Installation
11
AJ1031

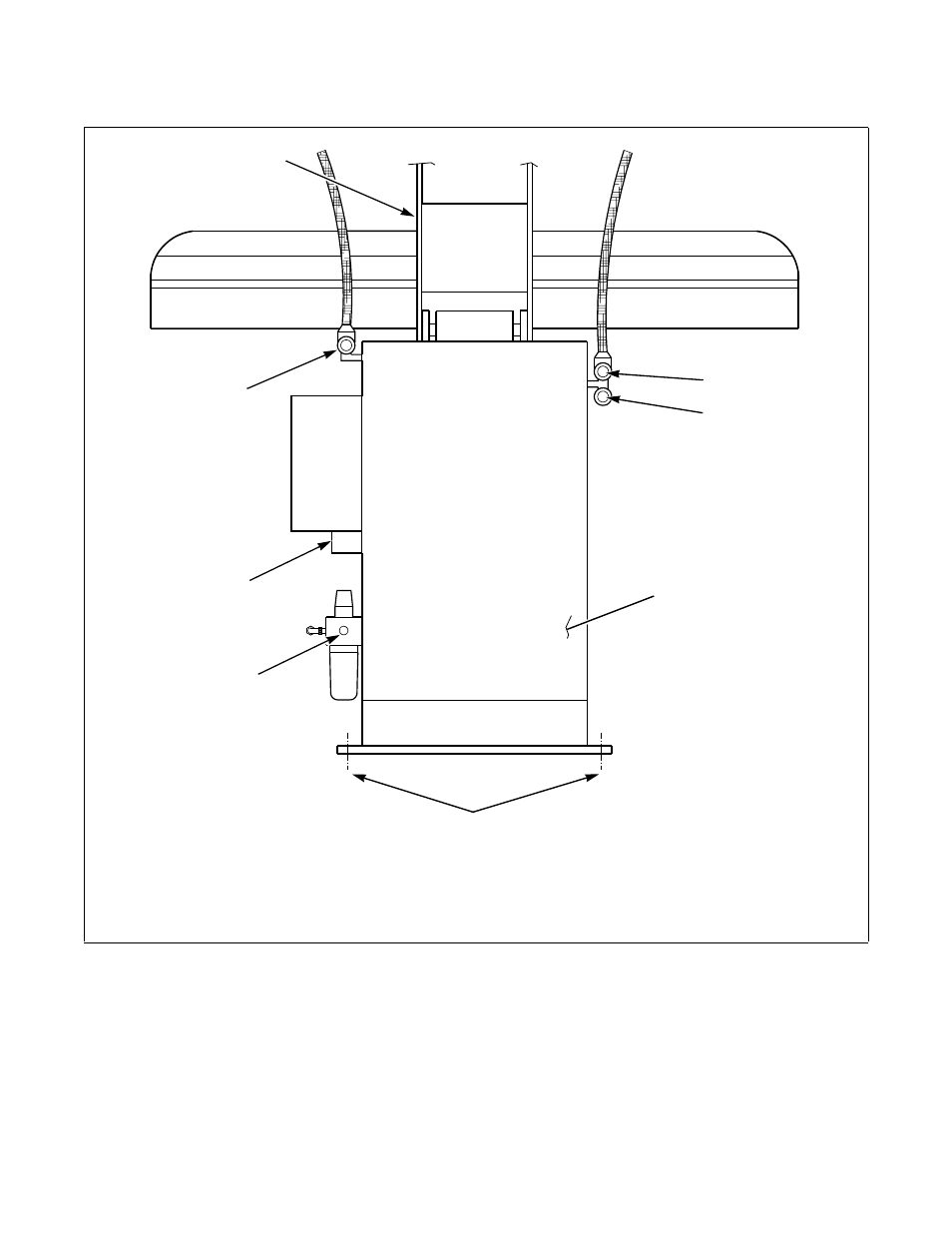

Rear View – Typical Laundry Press
Figure 4
SCR96N
1
Head Steam Outlet
5
Air Inlet
2
Buck Steam Outlet
6
Electrical Hook-Up (With optional timer)
3
Rear Cover
7
Steam Inlet
4
Anchor Bolt Holes
8
Pressure Arm
B0158
1
2
3
4
5
7
8
6
