For Desktop Macintosh

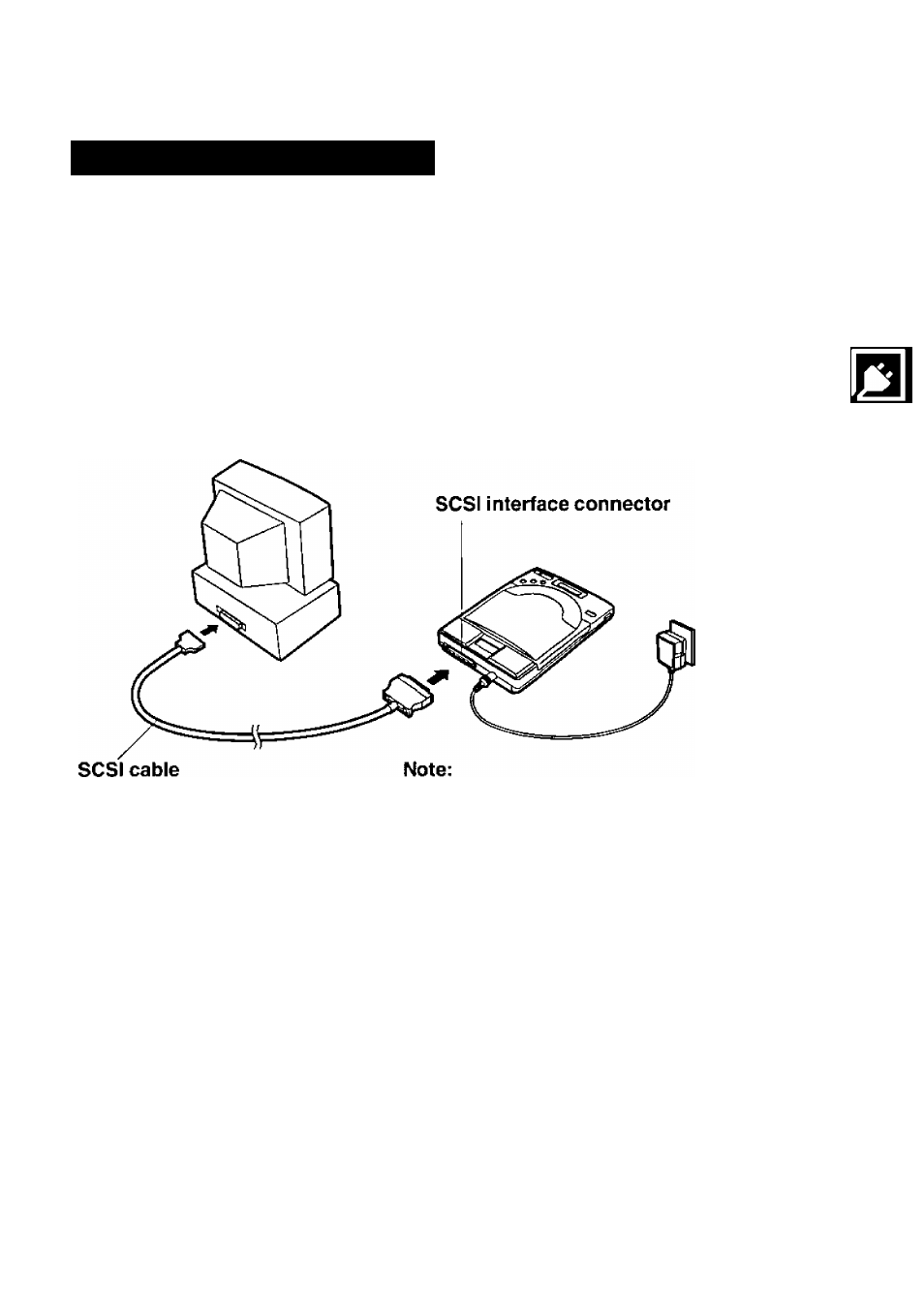

For connection, a commercial SCSI cable for Macintosh is required.
Cautions for a SCSI cable:
•Use a shielded SCSI cable of 1 m (3.2 ft.) or shorter.
• Plug D-Sub25 pin end into Desktop Macintosh and the half-pitch 50 pin end into the
player.
First make sure both the player and the Desktop Macintosh are off.
(not supplied) •Make sure that the terminator is
set to ON {{sr P. 37).
■ Daisy chain connection:
You can connect this player to other SCSI devices (up to seven devices). Make sure that
each SCSI device has different SCSI ID number.
For the setting of SCSI ID number and terminator of this player, refer to “SCSI ID Number
and Terminator Setting” (ET P.37).
Since the player has only one SCSI connector, it must be the last device in the daisy chain.
In this case, set the terminator to ON.
