CW-1773SR
Ventilation Lever
When the slide lever is at the:
CLOSE^VENT^OPEN
“OPEN" position, the vent, door
opens to allow air, smoke or odours
to be expelled from the room.
CLOSE ^VENT^ OPEN
“CLOSE” position, the vent, door
Is closed and the air inside the room
is circulated and conditioned.
Air Swing Switch
AIR SWING
OFF
ON
OFF
Stops the operation of Air Swing.
ON
Air Swing is in operation.
Power supply cord

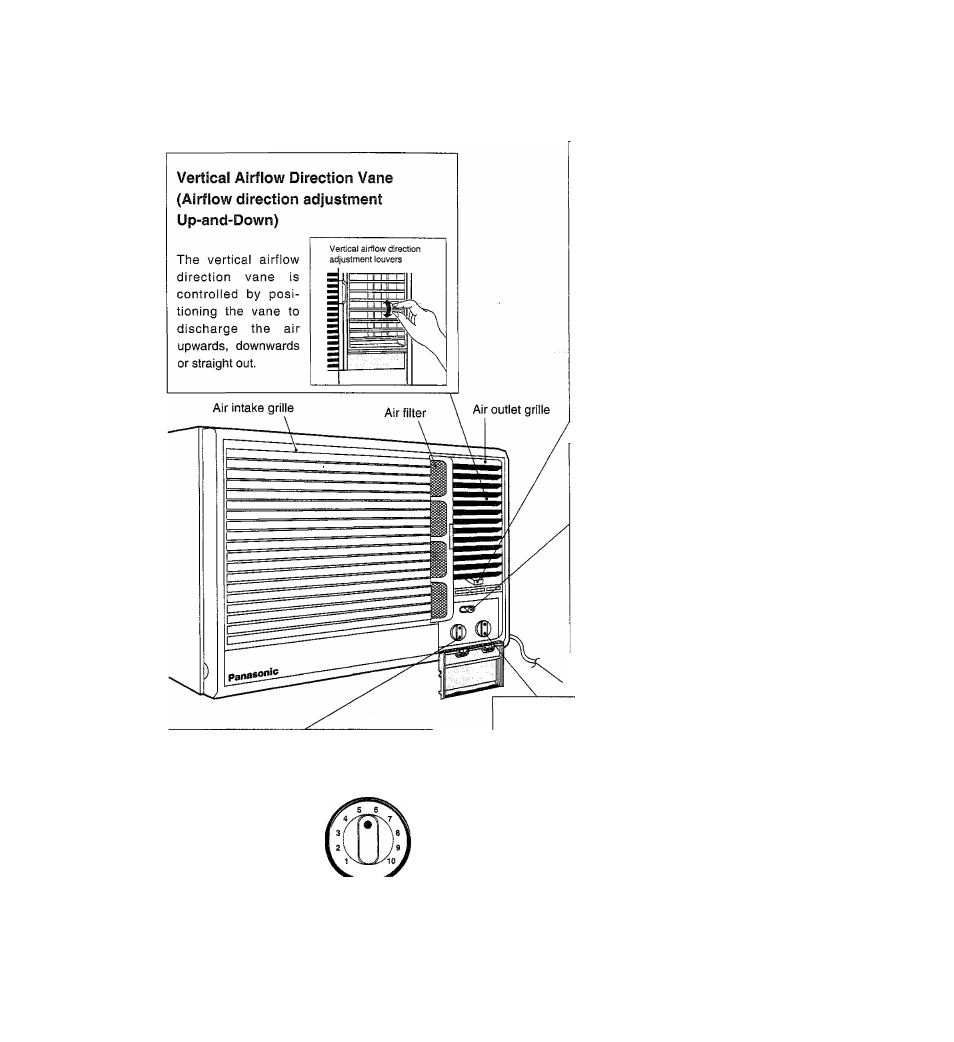

Thermostat Control Knob
THERMOSTAT
When you turn the
Thermostat
Control
Knob to the desired
setting, the thermo
stat will automatically
control the tempe
rature of the indoor
air. The further clockwise or anticlockwise
you turn the knob, the cooler or warmer
the indoor air will become.
WARMER
COOLER
Main Control Knob
OFF
Stops all operations.
FAN
Selects fan speed.
LOW COOL
Air cooling operation at low
fan speed.
HIGH COOL
Air cooling operation at high
fan speed.
LOW HEAT
Air heating operation at low fan speed.
HIGH HEAT
Air heating operation at high fan speed.
HEATING
COOUNG
O
ff
FAN
FAN
i
LOW I
I LOW
\ V
y /
HIGH
_
4
_
