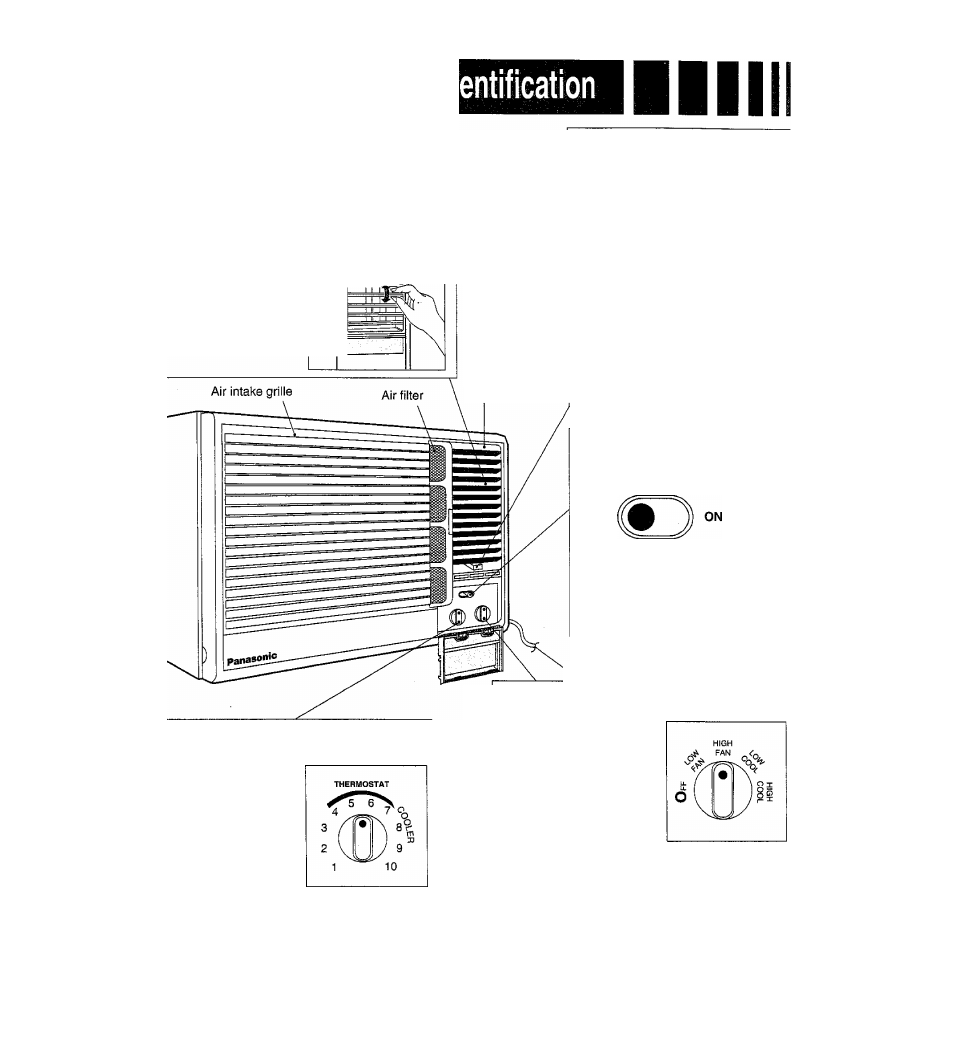

CW-1703SR
Vertical Airflow Direction Vane
(Airflow direction adjustment
Up-and-Down)
The vertical airflow
direction
vane
is
controlled by posi
tioning the vane to
discharge
the
air
upwards,downwards
or straight out.
Vertical airflow direction
adjustment louvers
It
n
EEI
Air outlet grille
Ventilation Lever
When the slide lever is at the:
CLOSED VENT ►OPEN
“OPEN” position, the vent, door
opens to allow air, smoke or odours
to be expelled from the room.
CLOSE-AVENTE OPEN
“CLOSE” position, the vent, door
is closed and the air inside the room
is circulated and conditioned.
Air Swing Switch
AIR SWING
OFF
OFF
Stops the operation of Air Swing.
ON
Air Swing is in operation.
Thermostat Control Knob
When you turn the
Thermostat
Controi
Knob to the desired
setting, the thermo
stat will automatically
control the tempe
rature of the indoor
air. The further clockwise you turn the
knob, the cooler the indoor air will become.
Power supply cord
Main Control Knob
OFF
Stops ail operations.
LOW FAN
Fan only operation without
cooling at low fan speed.
HIGH FAN
Fan only operation without
cooling at high fan speed.
(fan only operation recir
culates filtered room air).
LOW COOL
Cooling operation at low fan speed.
HIGH COOL
Cooling operation at high fan speed.
-
