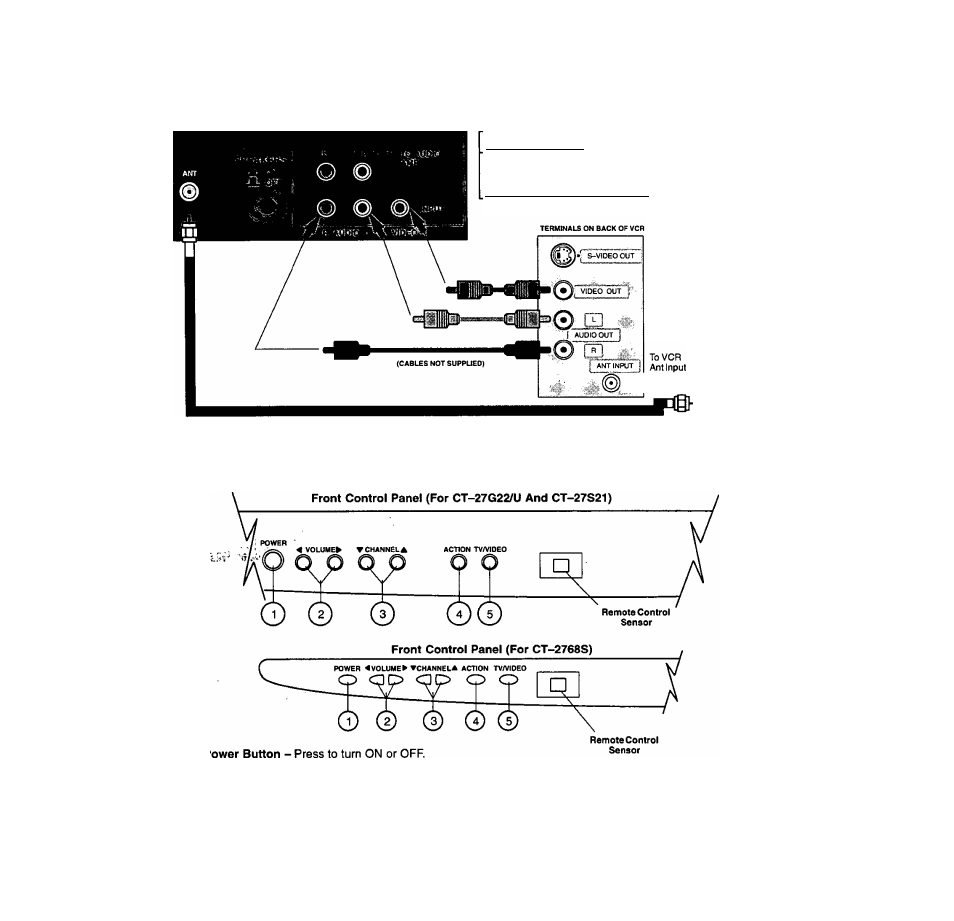

Picture in Picture External Video and Antenna Connection
This Receiver has the "PICTURE IN PICTURE" feature. For the proper operation of this feature a second video source is
required {such as a VCR). We recommend that you make your antenna and External Video connection as shown below
when a second video source is available.
TERMINALS ON BACK OF RECEIVER
Helpful Hints:
The PIP will Operate using Audio/Video input terminals.
Use the TVA/IDEO button (when the PIP frame is
displayed) to select proper mode.___________________
Incoming Cable
From Antenna or
Cable TV System
d
^Tsr
Signal Splitter
(Not Supplied)
Location of Controls Receiver
Volume Buttons - Press to adjust Sound Level. Press to adjust Audio Menus, Video Menus and select operating
features when menus are displayed.
Channel Buttons - Press to select programmed channels. Press to highlight desired features when menus are
displayed.
Action Button - Press to display Main Menu and access On Screen feature and Adjustment Menus.
TV/VIdeo Button - Press'to select TV or Video Input.
