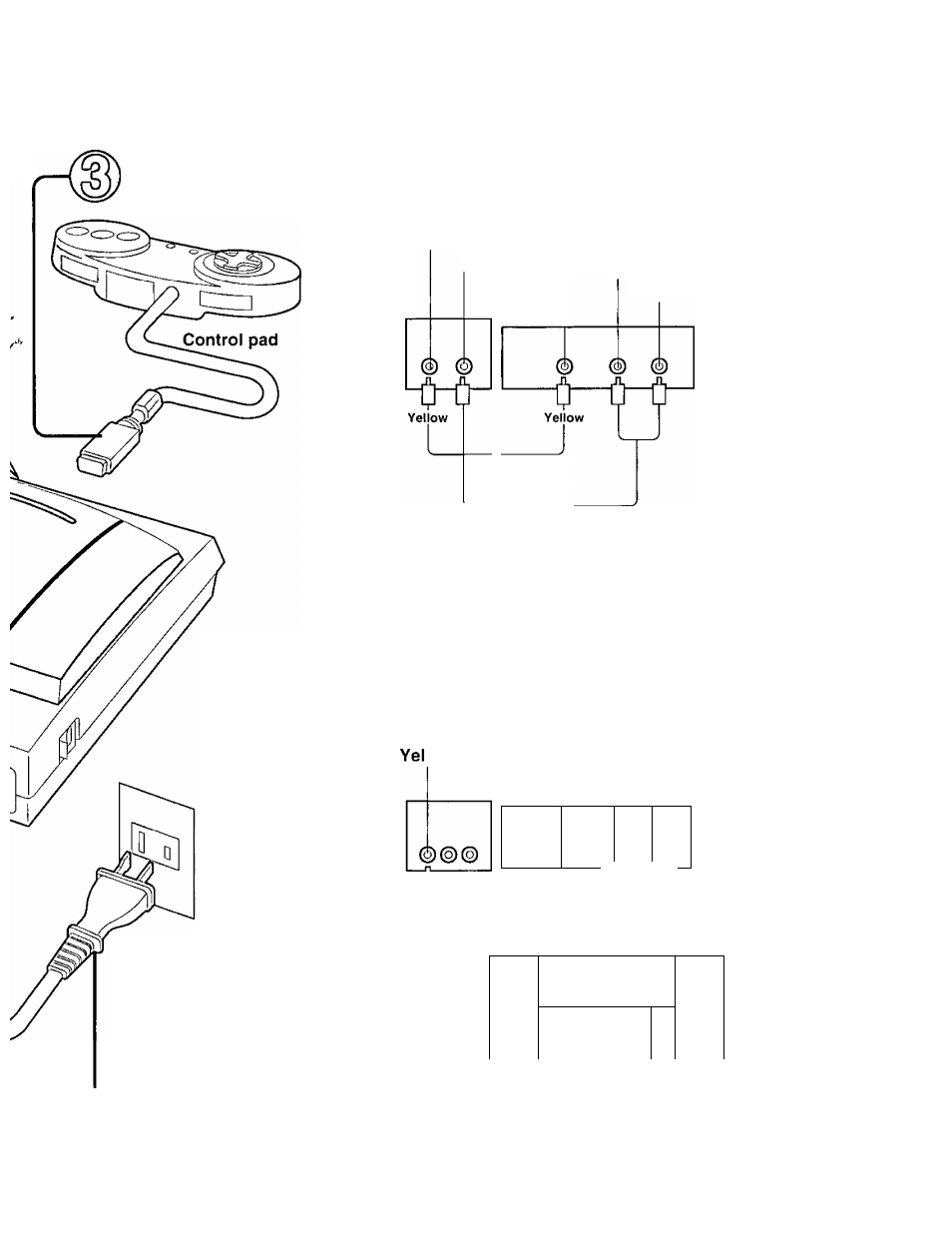

Connect the
control pad.
r;
Player
AC120V outlet
Connect the
power cord.
Connection with a TV set
TV set With “MONO” audio and video input jacks
Video input jack
(VIDEO)
Yellow
- Video output jack
TV set
pAudio input
jack
(AUDIO)
Red
- Right audio output jack (R)
White
- Left audio output jack (L)
Player
Video cable
(not supplied)
Pin-to-pin cable (not supplied)
When a different type of TV set or antenna is used
Different parts (not supplied) are required depending on the type of TV set
or antenna First check the type of TV set and antenna and then consult
with your Audio/Video dealer
Connection to a TV set and stereo system
Yellow
- Video output jack
Red
- Right audio output jack (R)
White
- Left audio output jack (L)
low
- Video
input jack
TV set
3 c
3 i 3
Video cable
(not supplied)
Red White
I____)
Player
Stereo system
Audio cable
(not supplied)
Red Wiiite
__ ^
f
White
- Left audio input jack (L)
Red
- Right audio input jack (R)
Also refer to the operating instructions accompanying the stereo system
