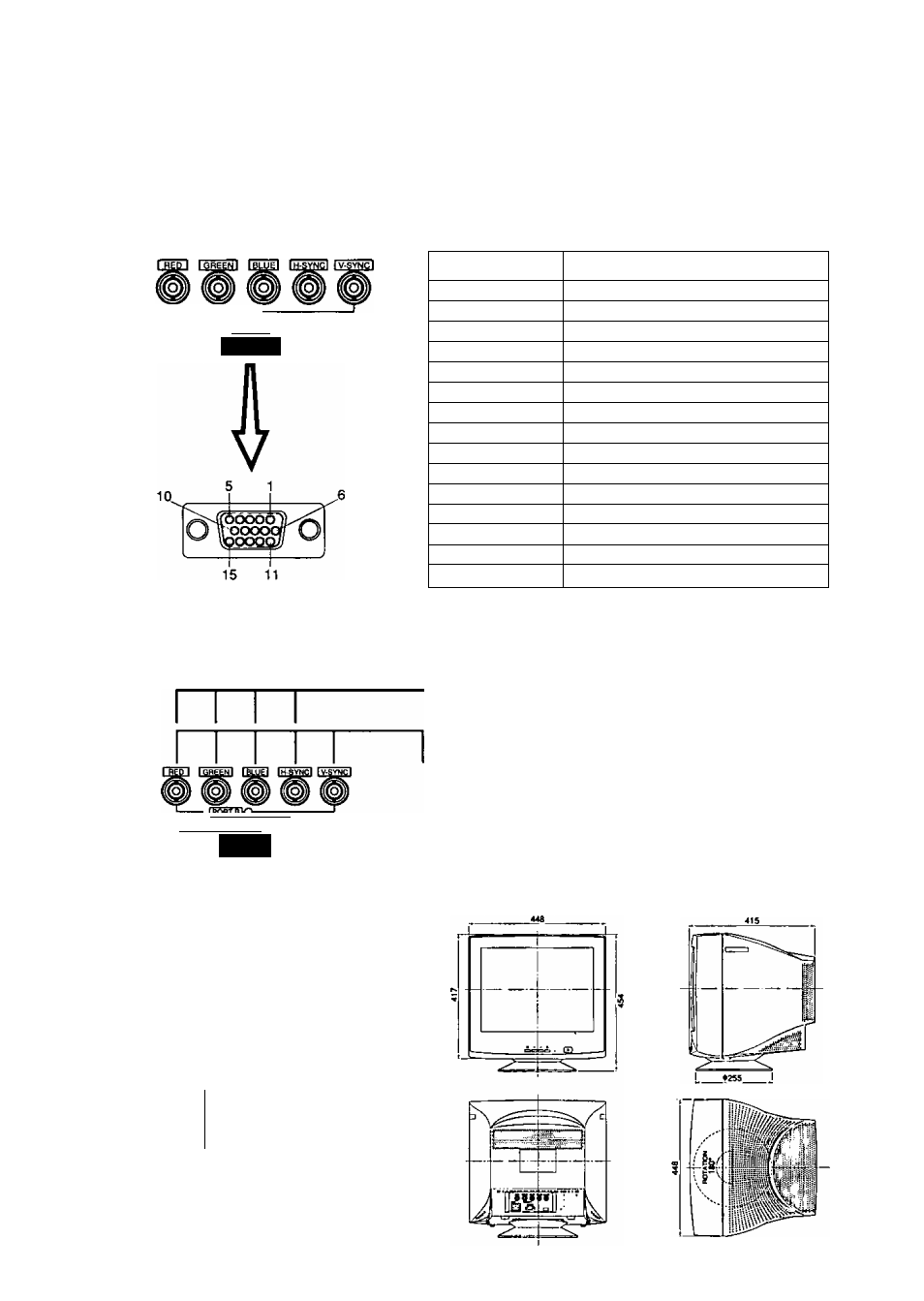

Pin Assignment
Follow the instructions below to connect the SL90i to a computer.
A. Signal connector:
15 pin mini D-Sub (PS / 2 or PC / AT compatible model)
Connect the signal cable to the 15 pin mini D*Sub connector on the dispiay unit.
B. Signal connector:
15 pin D-Sub (Apple computer)
Convert a MAC 15 pin D-Sub connector to a 15 pin mini D-Sub connector using a Panasonic MAC
adapter, and connect it to the 15 pin mini D-Sub connector on the dispiay unit.
< REAR PANEL >
Pin assignments ot 15 pin mini D-Sub connector
-ITORTBK^
1>0RTA1
Pin number
Signal name
1
Red video signal
2
Green video signal
3
Blue video signal
4
Ground
5
Ground*
6
Ground for Red video signal
7
Ground for Green video signal
8
Ground for Blue video signal
9
Unused
10
Ground
11
Ground
12
SDA* (Bi-directional Data)
13
Horizontal sync, signal
14
Vertical sync, signal
15
SCL* (Data Clock)
C. Signal connector;
BNC connector
“VESA"s Display Data Channel (DDC) Standard
Sync on green system
Connect the signal cable to RED, GREEN (sync
ongreen) and BLUE BNC connectors.
Composite sync system
Connect the signal cable to RED, GREEN, BLUE
and H-SYNC (H / V composite) BNC connectors.
-(POflTBK>
I PORT *1
ME
Separate sync system
Connect the signal cable to RED, GREEN, BLUE
and H-SYNC and V-SYNC BNC connectors.
Note : If your computer's video output is over
110 MHz, it is recommended that it be
used with the BNC connectors.
External View
Dimensions
Width
Height
Depth
Base diameter
Height without stand
Pan / Tilt range
448 mm (17.6")
454 mm (17.9")
415 mm (16.3")
417 mm (16.4")
Up
: 13 degrees
Down
: 4 degrees
Left, right
: 90 degrees each
8
