VACUUMCLEANER ASSEMBLY
A
WARNING
Electrical Shock Hazard.
• Do not plug into electrical supply until assembly is complete. Doing so
could result in electrical shock or injury.
• Do not get the power cord caught under the agitator when using the
cleaning tools. Keep cord out from under POWER NOZZLE when
vacuuming.
Before assembling your vacuum cleaner, be sure you have all parts shown on page 2.

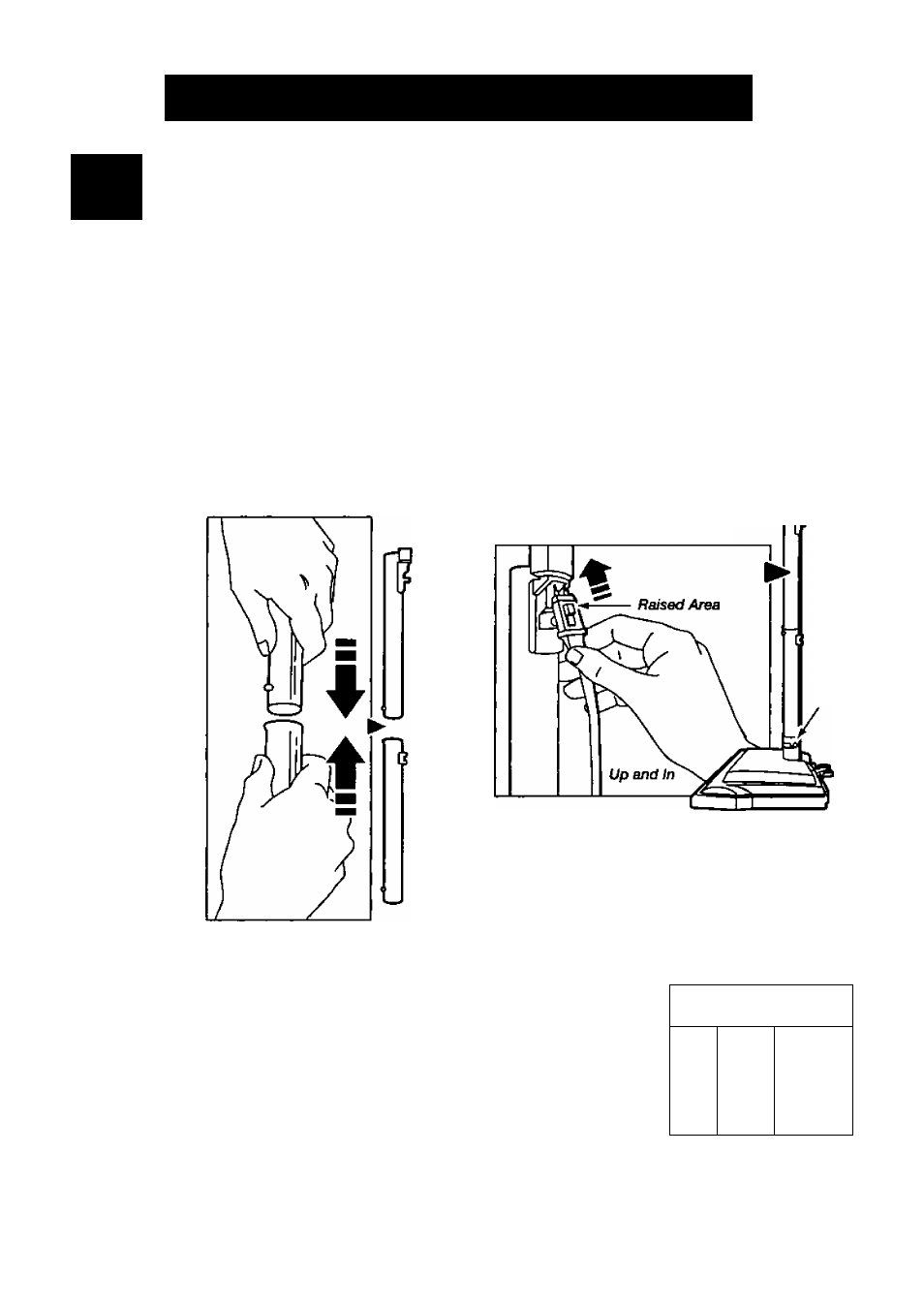

WANDS
POWER NOZZLE
Slide wands
together until
wand button
snaps into
place.
POWER NOZZLE
1. Insert wands into POWER
NOZZLE until the wand button
snaps into the grooved slot.
Slot
Connect POWER NOZZLE plug and cord as
shown. Do not force. If hard to install, turn the
plug over and try again.
CANISTER
I.Open the canister
hood by gripping
the lid release. Pull
out and up to open
hood. See page 2
for location of lid
release.
2. Check the dust
bag. See page 8 for installation instructions.
3. Check motor safety filter.
See page 8 for installation instructions.
1
m
Motor
Fitter
m
•afety^
