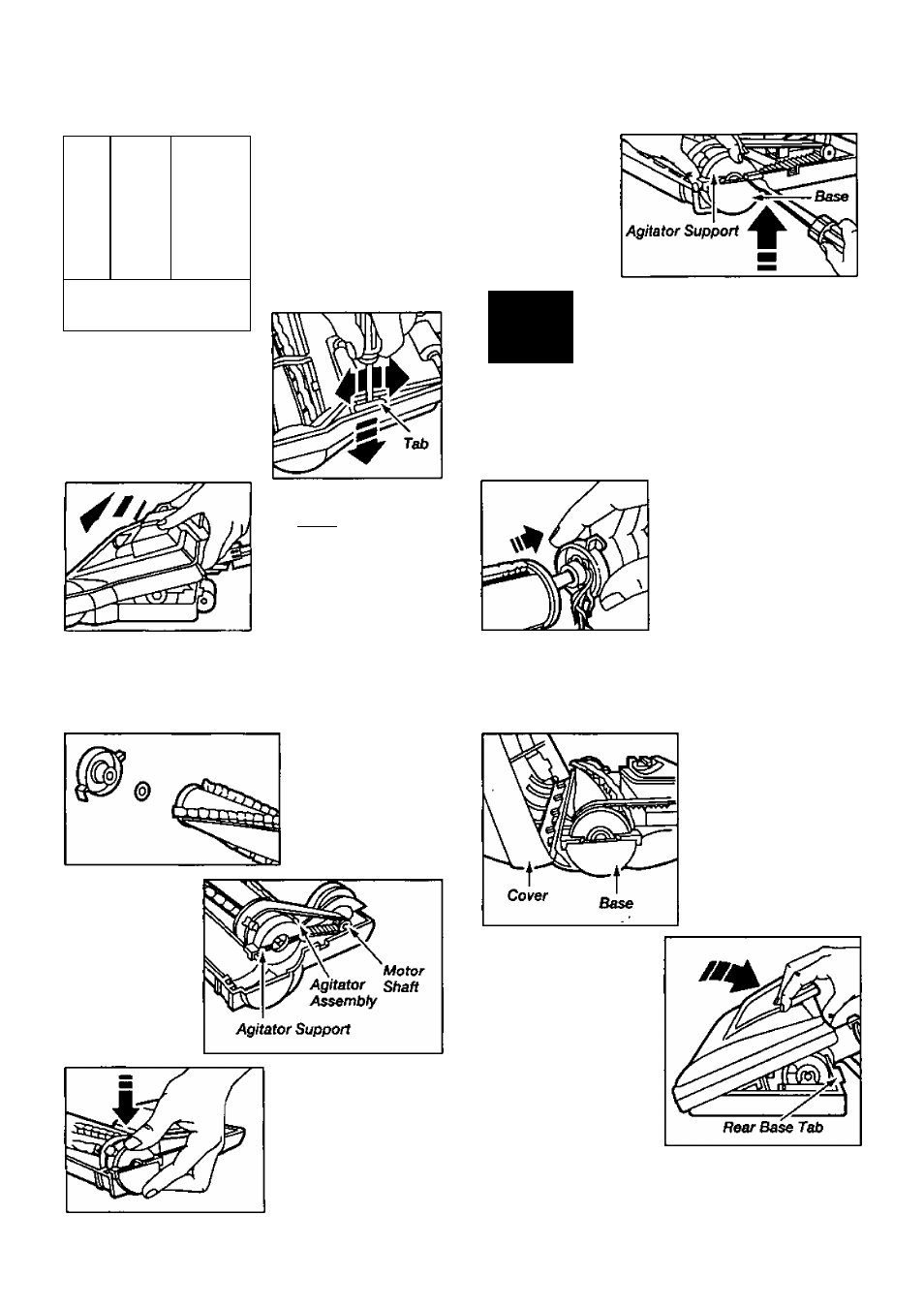

TO REMOVE BELT

□

3. Turn POWER

NOZZLE over. To
remove cover, insert

screwdriver at cover
tabs on both sides and
twist to release tabs.

1. Remove light cover

and light bulb as
shown under “LIGHT

BULB CHANGiNG.”

2. Unscrew the two

(2) POWER NOZZLE

cover screws.

4. Turn POWER

NOZZLE right side up.
Press handle release
pedal and lower the
swivel. Tilt cover for

ward from back until
front snaps free.

5. Carefully

insert and twist
screwdriver at
each agitator
support to free

brush from
base.

CAUTION

When

you

remove

the

agitator

supports, a small metal washer on
each end may come off. DO NOT
lose these two metal washers.

6. Remove worn belt.

7. Slide agitator
supports off to check
and clean agitator
support areas. See page

11 for picture of com

plete agitator assembly.

TO REPLACE BELT

2. Install new

belt in belt

groove on the
agitator
assembly, then
over the motor
shaft. Be sure

belt is under

the belt guard.

1. Slide washers

and agitator
supports onto
agitator assembly.

3. Insert both front
support tabs into
the base slots. Then
snap agitator

supports into place.
See page 11.

5. Tilt cover to back.

Press cover firmly
until rear tabs snap
into place. Turn

POWER NOZZLE

over. Replace the
cover screws and
lower the pile height
adjustment rollers

Into place. Replace

light bulb and cover.

4. Line up front of
cover and base.

Rest cover on front

edge of base as
shown.

-10-
