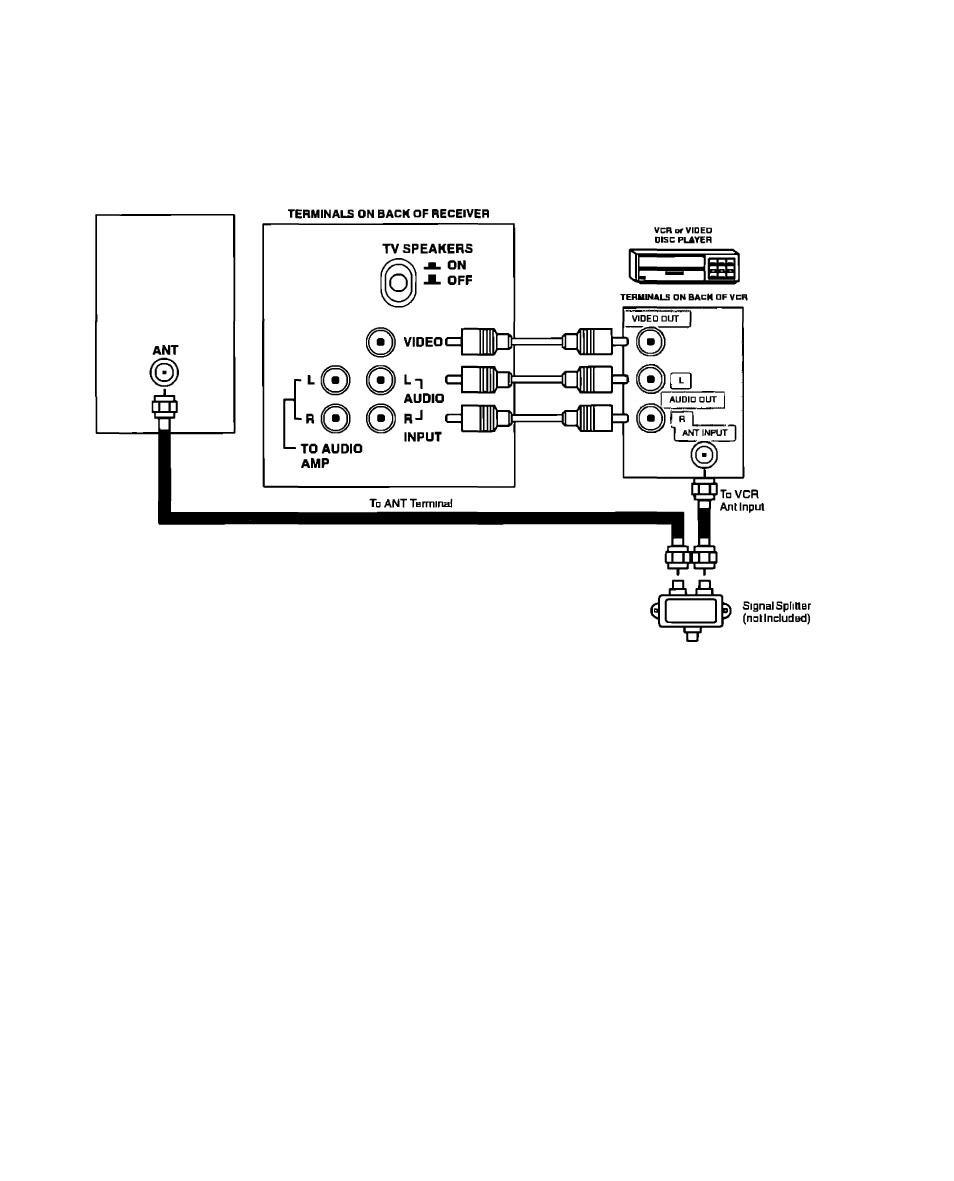

Picture in Picture External Video and Antenna Connection

This Receiver has Ihe “PICTURE IN PICTURE" feature For the proper operation of this feature, a second video source is

required (such as a VCR) We recommend that you make your antenna and External Video connection as shown below,

when a second video source is available

t-

Incoming CablB
fromAntanna

or

Cable TV Syslem

Helpful Hints:

The PIP will operate using Audio/Video input terminals Use the TVA/IDEO button

(when the PIP frame is displayed) to select Video mode.

- 7 -
