Optional Equipment Connection and Operation

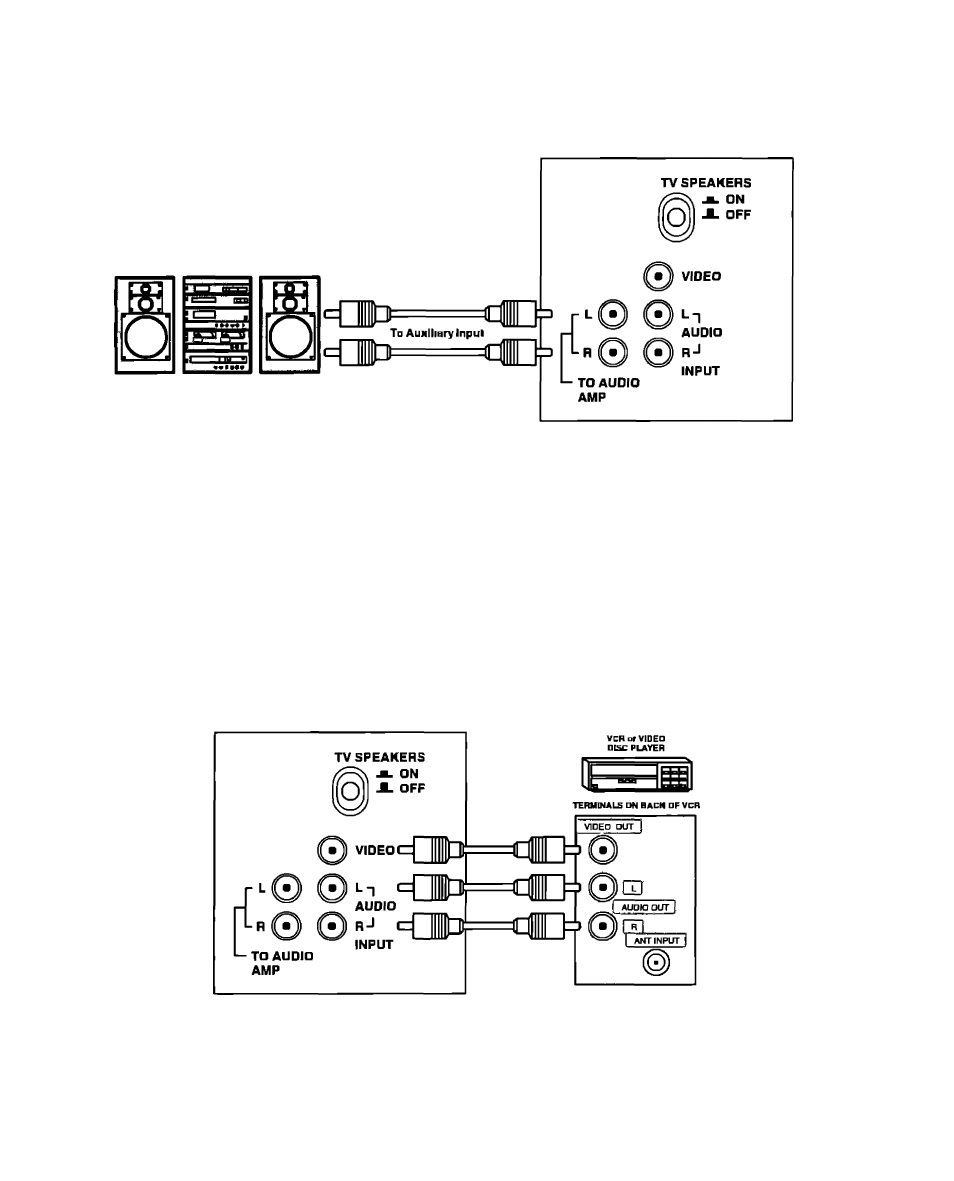

To Audio AMP Connection (Stereo)
TERMINALS ON BACK OF RECEIVER
> To Audio AMP
Connect to an external audio amp auxiliary input for monitonng sound through a stereo system
NOTE: "TO AUDIO AMP” terminals cannot be used for external speakers
Adjuslmenl - When an audio amp is connected to "TO AUDIO AMP” terminals as shown
1
Press the TV SPEAKERS button (located on back of Receiver) to turn I NT SPEAKERS “ON" ^ )
2
Set volume of audio amp to near minimum
3
Adjust volume of TV to desired listening level
4
Adjust volume of audio amp to match the level of TV.
5
Press the TV SPEAKERS button (located on back of Receiver) to turn INT SPEAKERS “OFP ^ )
6
Volume and mute can now be controlled by the TV Remote Control
Video/Audio Connection
TERMINALS ON BACK OF RECEIVER
Operation
1
-
2
3.
Connect optional equipment as shown to INPUT
Select the Video mode by pressing the TVA/IDEO button (or refer to the Input Selection Menu)
Operate optional equipment (VCR-VDP) as instructed in Optional Equipment manual.
- 3 B -
