Connect the Video Output Connector (12) on the
first monitor to the Video Input Connector (11) on
the second monitor with 75-ohm coaxial cable.
Continue until all monitors are connected.
Set the Video Termination Switch (13) of the first
and intermediate monitors at Hi-Z position. Then
set the Video Termination Switch {13} of the last
monitor to 75il position.

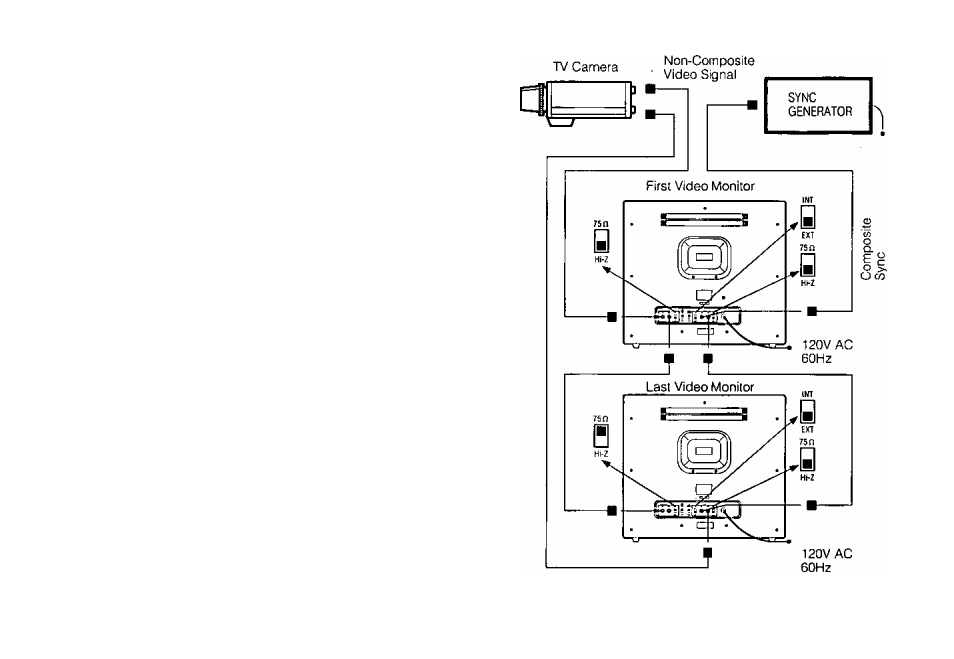

3. When used with External Sync

When a non-composite video signal is connected
to the video monitor, an external composite SYNC
signal must also be connected to the video moni
tor,

• Connect the Video Input Connector (11) on the

video monitor to the Video Output Connector of the

camera with 75-ohm coaxial cable.

• Connect the Video Output Connector (12) on the

first monitor to the Video Input Connector (11) on
the second monitor with 75-ohm coaxial cable.
Continue until the video signal is connected to all

monitors.

• Set the Video Termination Switch (13) of the first

and intermediate monitors to the Hi-Z position.
These set the Video Termination Switch (13) of the

last monitor to the 75Q position.
