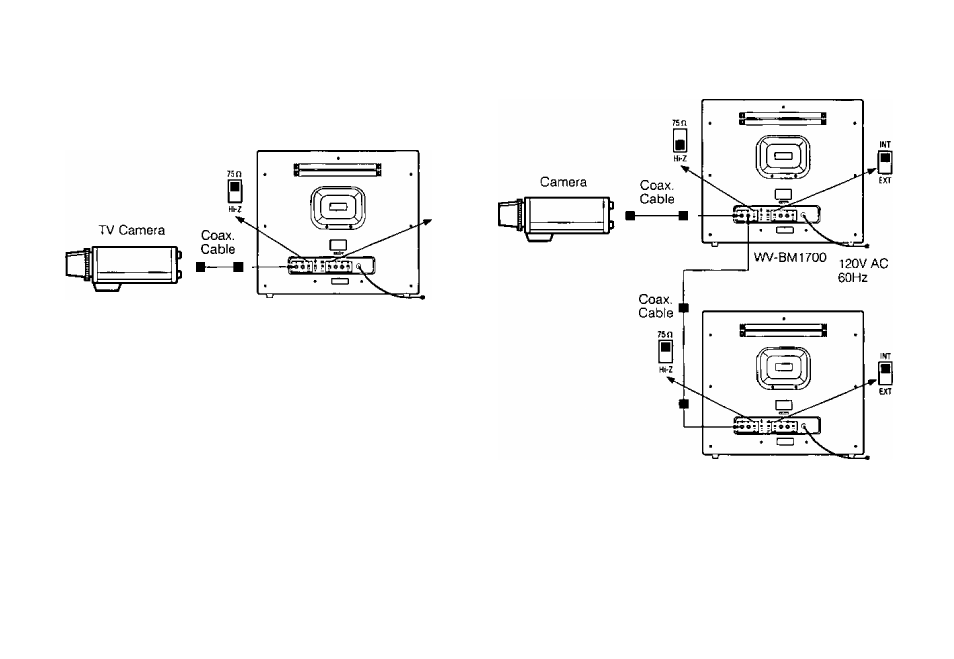

SYSTEM CONNECTIONS

1. Single Monitor Connection

.0

WV-BM1700

120V AC

60Hz

Connect the Video Input Connector (11) on this
monitor to the Video Output Connector oi the cam­
era with 75-ohm coaxial cable.
Set the Video Termination Switch (13) to the 75il

position.

Set the Sync Selector Switch (16) to the INT posi­
tion.

2. Multiple Monitor Connection

First Video Monitor

Last Video Monitor ^

20

V AC

60Hz

Connect the Video Input Connector (11) on this
monitor to the Video Output Connector of the cam­
era with 75-ohm coaxial cable.

-8-
